X10SBA/X10SBA-L User’s Manual

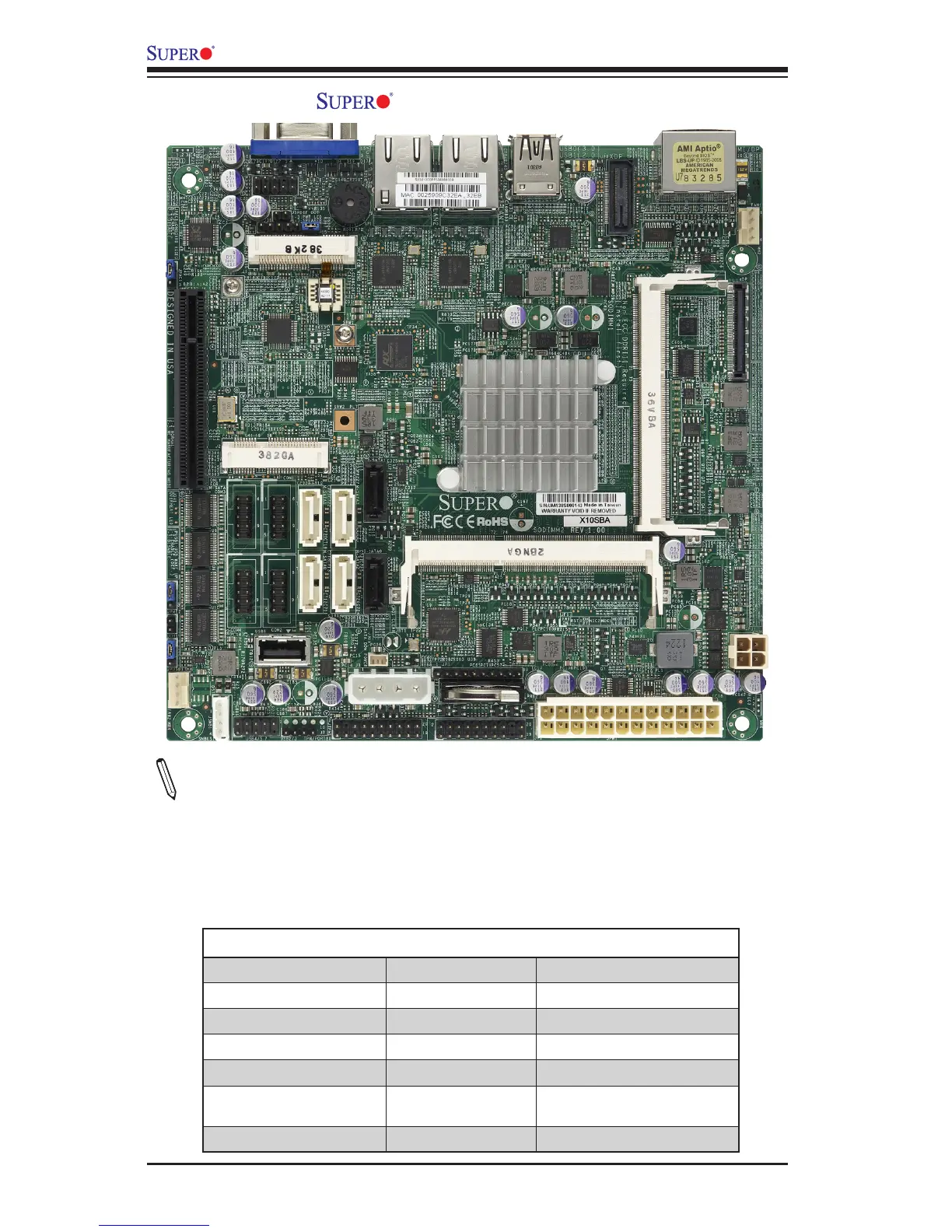

X10SBA Motherboard Image
Notes:
1. All graphics shown in this manual were based upon the latest PCB Revision
available at the time of publishing of the manual. The motherboard you've received
may or may not look exactly the same as the graphics shown in this manual.
2. Some components are installed on the X10SBA only; some, on the X10SBA-L
only. Refer to the table below for model variations between these two models.
Differences between X10SBA and X10SBA-L
X10SBA X10SBA-L
USB (2.0) Port 3 Not available Yes
USB (2.0) Ports 4/5 Yes Not available
Type A USB (2.0) USB 6 Yes Not available
mini-PCI-E & SATA Yes Not available
4 SATA 3.0 from Marvell
88SE9230
Yes Not available
eDP Support Yes Not available
