A. VGA Port
A
X10SBA(-L)
Rev.
1.01A
JSMB1
J31
JBT1
BT2
M-SATA0M-SATA1
M-SATA2
M-SATA3
JP1
LAN1LAN2
JDIMM2
PJ1
JF1
JTPM1
JOH1
JSPDIF_OUT
JPUSB1
JPAC1
JPME2
JD1
VGA
FAN1
FAN2
I-SATA1
COM4
COM2
SP1
JSD1
JDIMM1
LED3
LED4
LED2
JPW1
SMBUS1
SLOT1 PCI-E 2.0 X2 (IN X8)
USB4/5
USB6
AUDIO FP
SODIMM2 (1.35V only)
USB1(2.0)
USB0(3.0)
CPU
(Install first)SODIMM1(1.35V only)
eDP
Non-ECC DDR3 Required
HDMI/DP
COM3
FP CTRL
BIOS
BAR CODE
J1
(for mini-PCI-E only)
(for M-SATA only)
J2
COM1
(for X10SBA only)
(for X10SBA only)
(for X10SBA only)
(for X10SBA)
LED1
LED5
USB2/3
I-SATA0
Video Connector

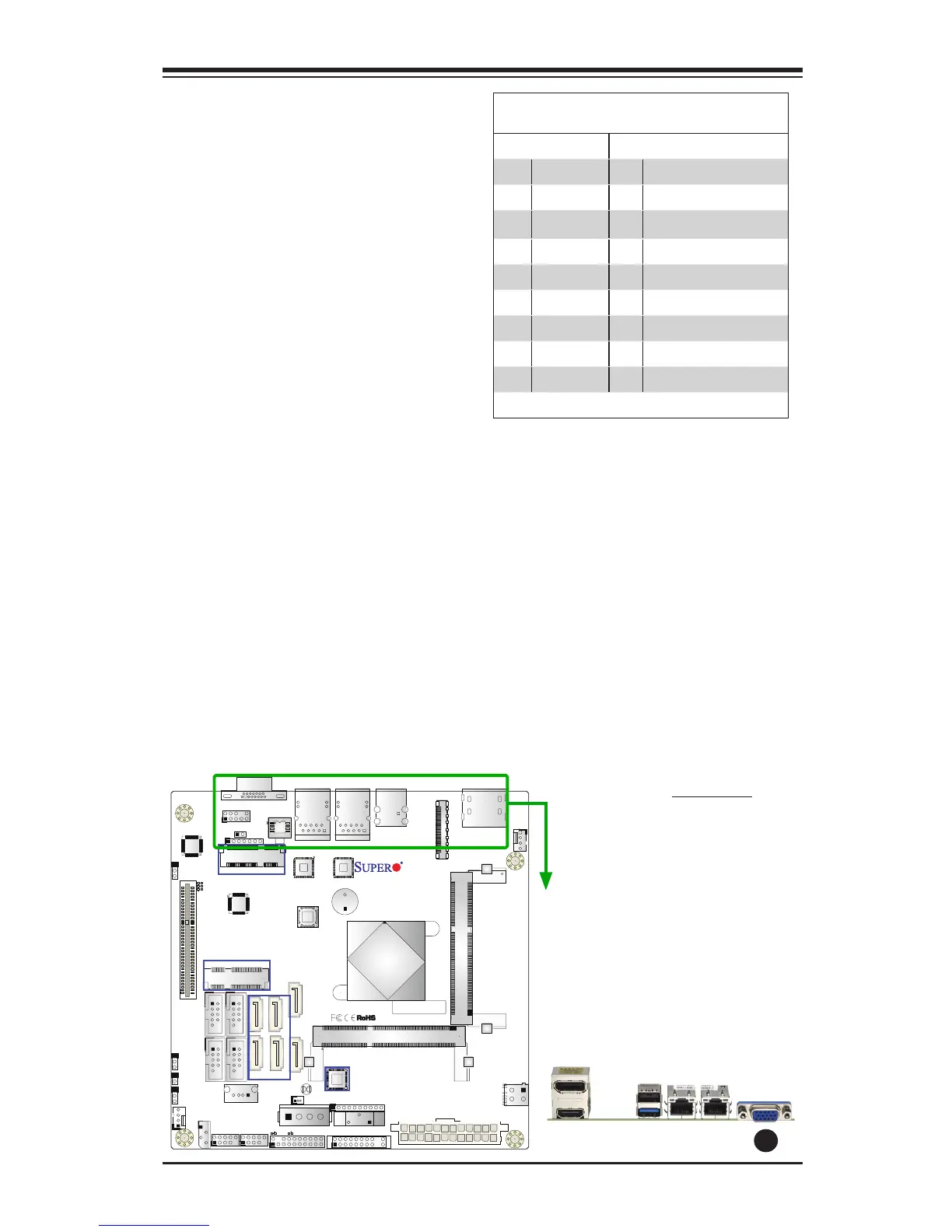

A Video (VGA) connector is located
next to the LAN2 Port on the I/O
backpanel. This connector is used
to provide video display. Refer to the
board layout below for the location.
VGA Pin
Denitions
Pin# Denition Pin# Denition
1 Red 10 Ground
2 Green 11 MS0
3 Blue 12 MS1: SDA (DDC Data)
4 MS2 13 HSYNC
5 Ground 14 VSYSNC
6 Ground 15 MS3: SCL (DDC CLK)
7 Ground 16 Case
8 Ground 17 Case
9 NC
NC= No Connection
