Super X10SBA - Universal Serial Bus (USB)

Chapter 2: Installation
2-11
X10SBA(-L)
Rev.
1.01A
JSMB1
J31
JBT1
BT2
M-SATA0M-SATA1
M-SATA2
M-SATA3
JP1
LAN1LAN2
JDIMM2
PJ1
JF1
JTPM1
JOH1
JSPDIF_OUT
JPUSB1
JPAC1
JPME2
JD1
VGA
FAN1
FAN2
I-SATA1
COM4
COM2
SP1
JSD1
JDIMM1
LED3
LED4
LED2
JPW1
SMBUS1
SLOT1 PCI-E 2.0 X2 (IN X8)
USB4/5
USB6
AUDIO FP
SODIMM2 (1.35V only)
USB1(2.0)
USB0(3.0)
CPU
(Install first)SODIMM1(1.35V only)
eDP
Non-ECC DDR3 Required
HDMI/DP
COM3
FP CTRL
BIOS
BAR CODE
J1
(for mini-PCI-E only)
(for M-SATA only)
J2
COM1
(for X10SBA only)
(for X10SBA only)
(for X10SBA only)
(for X10SBA)
LED1
LED5
USB2/3
I-SATA0
A
B
C

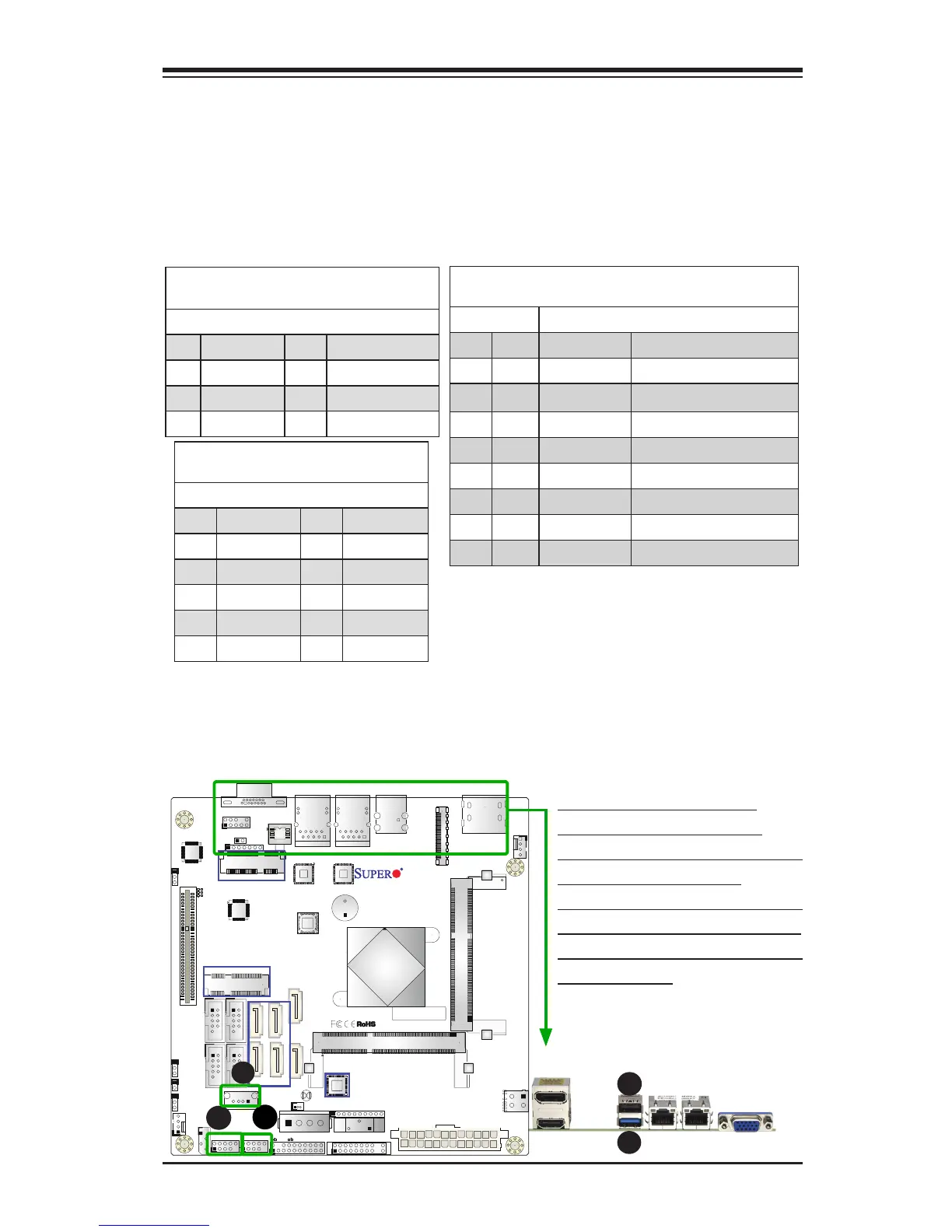

A. Backpanel (USB 3.0) USB1
B. Backpanel (USB 2.0) USB 0
C. Front Panel (USB 2.0) USB4/5
(Available on X10SBA Only)
D. Front Panel (USB 2.0) USB 2/3
(USB3: Available on X10SBA-L Only)
E. Type A (USB 2.0) USB 6 (Available
on X10SBA Only)
Universal Serial Bus (USB)
One Universal Serial Bus 2.0 port (USB 0) and one USB 3.0 port (USB 1) are located
on the I/O back panel. Three USB 2.0 connections (USB 2/3, USB 4/5) are located
on the motherboard for front USB 2.0 access. In addition, a Type A USB connector
(USB 6) is also located on the X10SBA to provide USB 2.0 front support. See the
tables below for pin denitions.
Back Panel USB (2.0) #0, Type A USB 6
Pin Denitions
Pin# Denition Pin# Denition
1 +5V 5 +5V
2 USB_PN1 6 USB_PN0
3 USB_PP1 7 USB_PP0
4 Ground 8 Ground
Front Panel USB (2.0) USB 2/3, USB 4/5
Pin Denitions
Pin # Denition Pin # Denition
USB #2,4 USB #1,3
1 +5V 2 +5V
3 USB_PN2 4 USB_PN3
5 USB_PP2 6 USB_PP3
7 Ground 8 Ground
9 Key 10 Ground
Back Panel USB (3.0) USB 1
Pin Denitions
Pin# Pin# Signal Name Description
1 19 VBUS Power
2 18 IntA_SSRX- SuperSpeed Rx-
3 17 IntA_SSRX+ SuperSpeed Rx+
4 16 Ground Ground
5 15 IntA_SSTX- SuperSpeed Tx-
6 14 IntA_SSTX+ SuperSpeed Tx+
7 13 GND Ground
8 12 IntA_D- USB2 D-
9 11 IntA_D+ USB2 D+
