is manual is designed to help familiarize you
with your SuperMax sander, and to help you take
advantage of its exclusive features. By understanding
its major components, and how they work together,
you will be able to get the most from your investment.
e SuperBrush system is basically made up of: 1) a
height adjustment handle which raises and lowers the
sanding head; 2) a brush speed control knob which
controls brush speed from 200 to 1000 RPM and
drum speed to 1750 RPM; 3) a motor starter switch
which starts and stops the drive motor and sanding
brush; and 4) a feed rate control knob which starts
feed conveyor and selects feed rate from 0-10 feet per
minute.

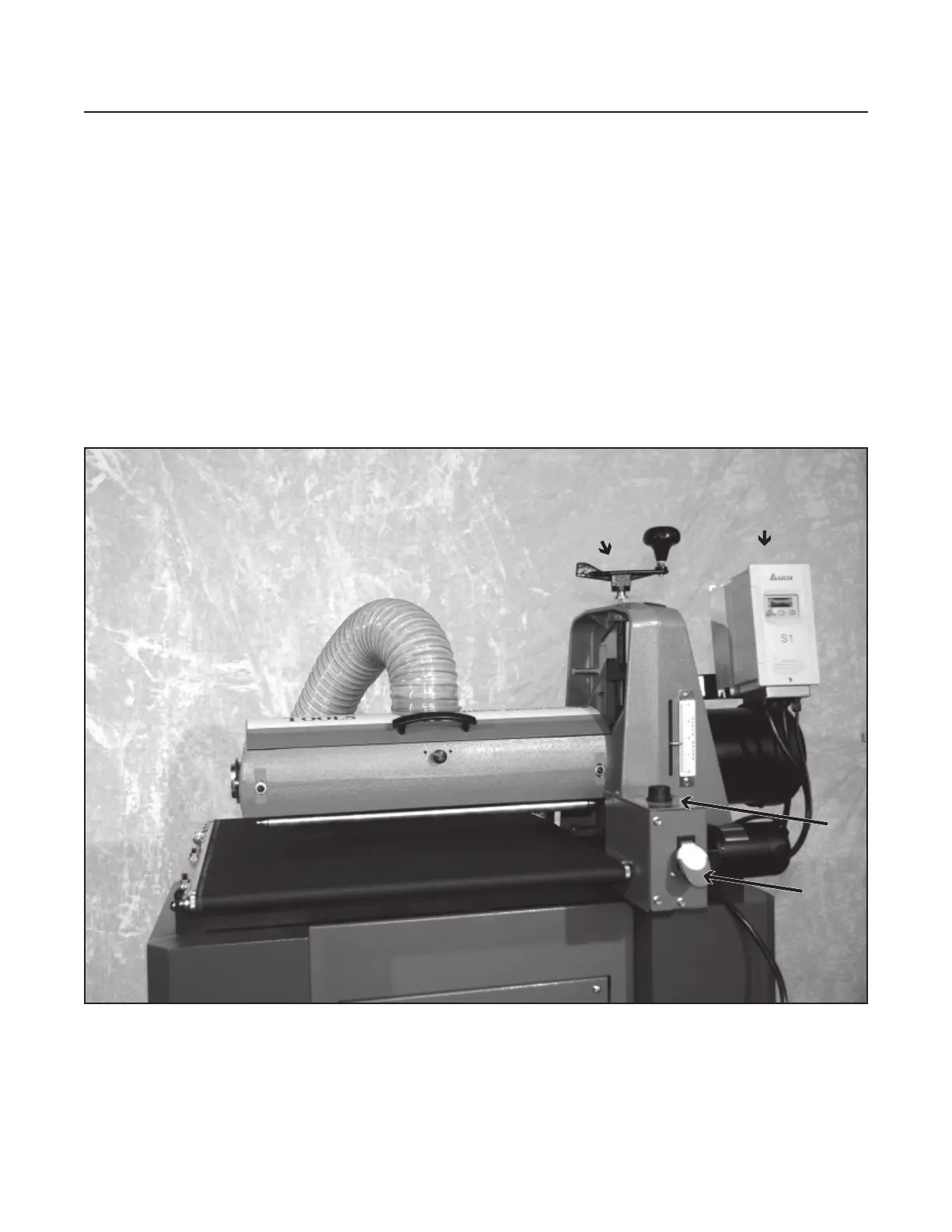

Fig. 1 SUPERBRUSH nomenclature.
1
2
4
3
