Your 19-38 Combo sander was adjusted and aligned at
the factory, and it has been carefully packed for shipment.
However, because of possible stress during transit, the unit
should be thoroughly checked before being put to use.
is section covers the preoperational checks you should
make after unpacking and nal assembly. Unnecessary
problems can be avoided if these essential checks are
performed before operating. Likewise, performing the
recommended monthly maintenance procedures (page
12) will help assure trouble-free service.
C D C
Dust collection is necessary for all models. e 19-38
Combo is equipped with one 4” diameter dust exhaust
port at the top of the cover.
To attach to your collection system, install 4” hose from
your collector. (See Tips For Maximum Performance,
page 12 of this manual.) e minimum recommended
dust collector capacities is 600 cfm. For best results,
follow the recommendations of the manufacturer of your
dust collection equipment. NOTE: Some applications
will require more dust collection than the recommended
minimum CFM.
C M F L
Proper leveling of the machine is important to achieve
continued maximum performance from the 19-38
Combo.

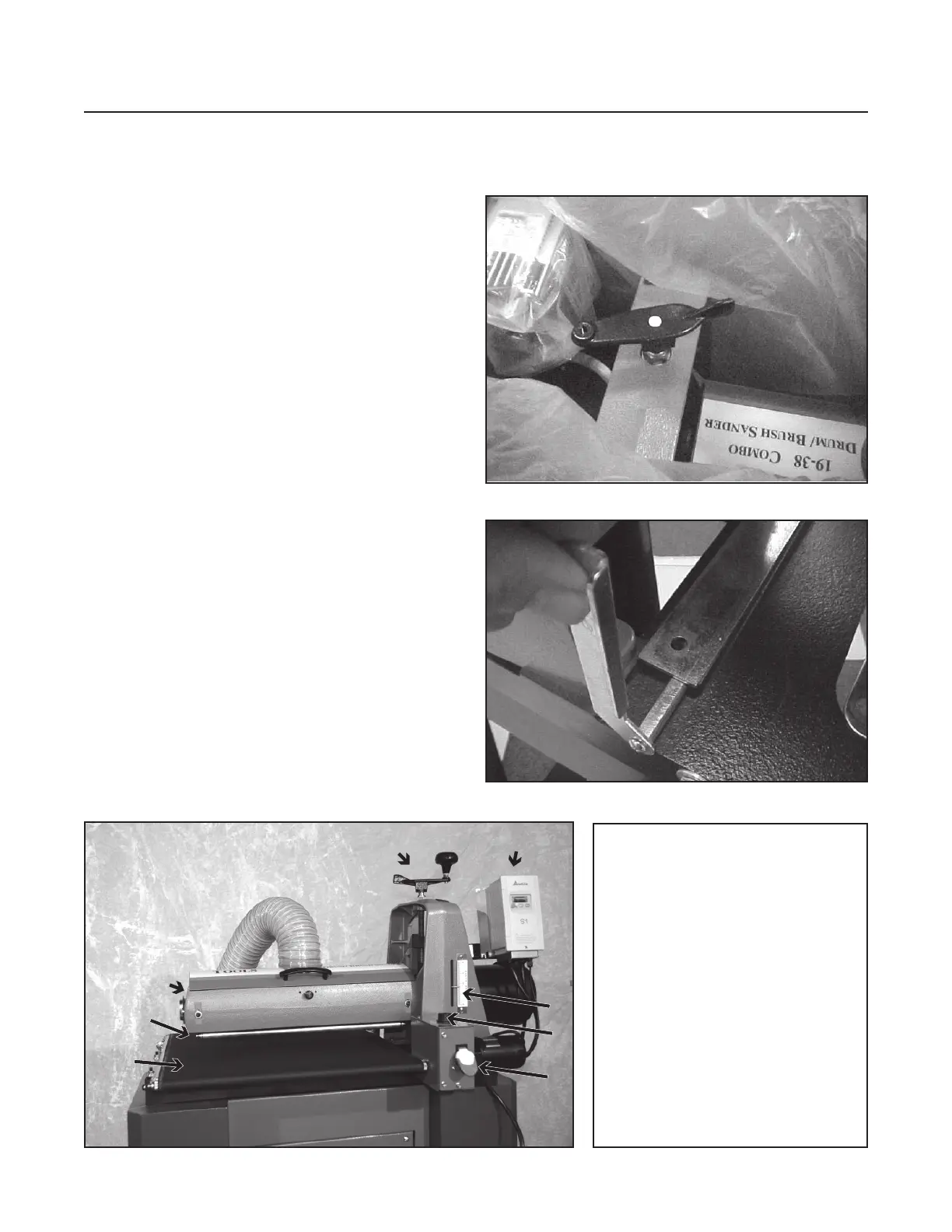

Fig. 5 SUPERBRUSH Components.
1. Height Adjustment Handle
2. Brush Speed Knob (RPM)
3. Depth Gauge
4. Conveyor Adjustment
5. Drum/Brush ON/OFF Switch
6. Conveyor Table
7. Tension Rollers
8. Drum/Brush Carriage
Fig. 5
Fig. 4A Install knob
Fig. 4B FAST Lever “UP”
1
2
3
4
5
6
7
8
