3-1
Chapter 3: System Interface
Chapter 3
System Interface
3-1 Overview
There are several LEDs on the control panel as well as others on the drive carriers
to keep you constantly informed of the overall status of the system as well as the
buttons on the control panel: a reset button and an on/off switch. This chapter covers
these buttons, and explains the meanings of all LED indicators and the appropriate
responses you may need to take.

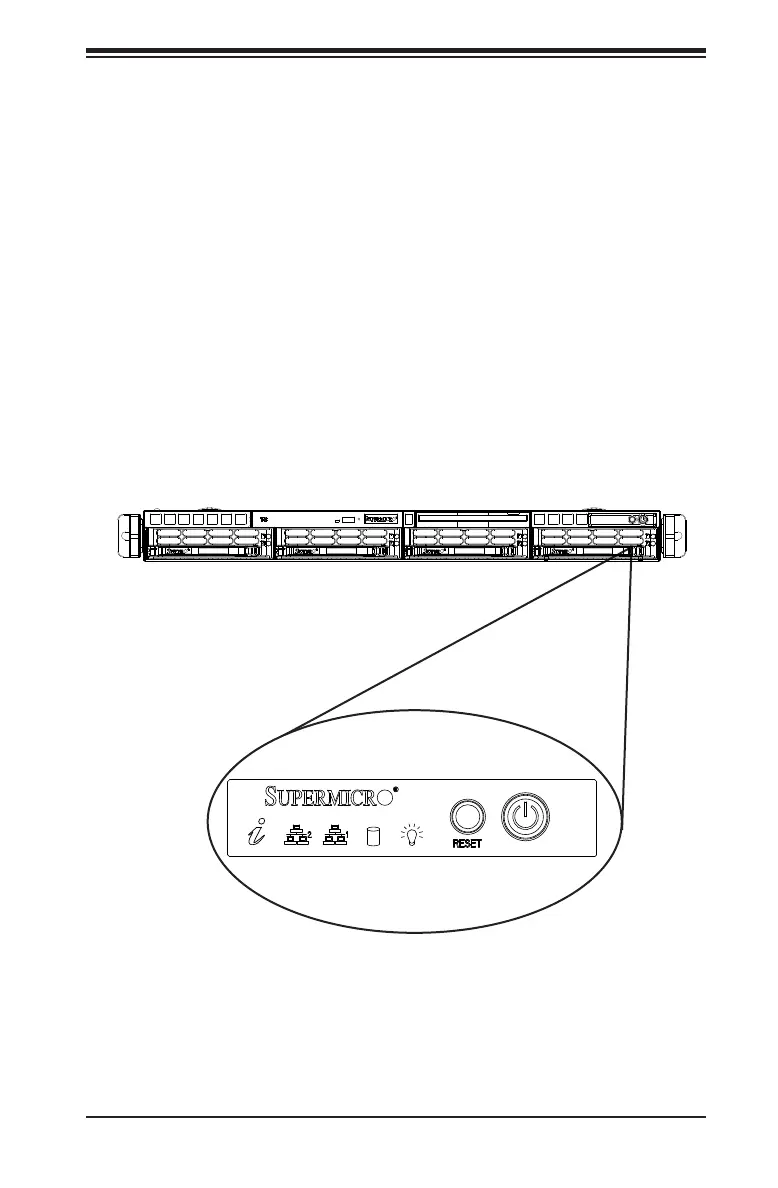

Figure 3-1. Chassis Control Panel
