SuperServer E300-8D User's Manual

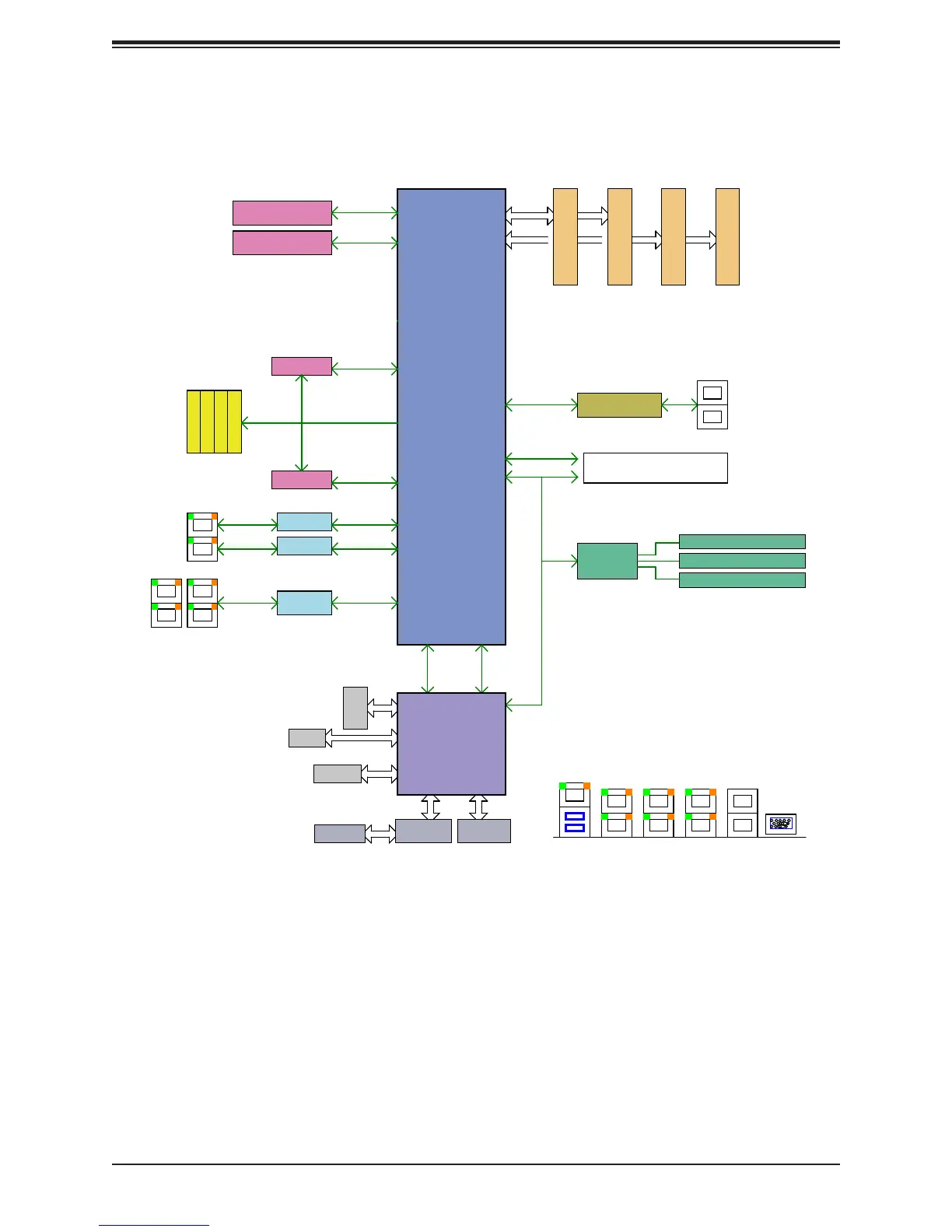

Figure 1-4. System Block Diagram
Note: This is a general block diagram and may not exactly represent the features on your

motherboard.
System Block Diagram
LPC
USB
PROCESSOR
PCI-E 2.0
USB 3.0
SOC
USB 2.0
JPCIE1 PCIE 3.0 x8
DDR4 DIMM
B1
DDR4 DIMM
A2
A
B
A1
DDR4 DIMM
A
DDR4 DIMM
B1
B
PCIE 3.0 x8
SATA Gen3
USB HUB
GL854G
USB 3.0 connector x2
(compatible with 2.0)
USB 2.0 Header x2
iXFI
x2
x1
VGA
USB3.0
1G LAN
SFP+
USB 2.0 Header x2
3rd LAN
+
KR
DDR4 1600/1866/2133
USB 2.0 TypeA
INPHI CS4227
SFP+
JPCIE2 PCIE 3.0 x8
PCIE 3.0 x8
mini PCIe
PCIE 2.0 x1
PCIE 3.0 x3
M.2 CONN
PCIE 3.0 x3
LSI SAS2116
MINI-SAS HD
SAS2
SATA GEN 3
PCIE 2.0
SATA3.0#4 SATA3.0#5
SATA3.0#0 SATA3.0#1 SATA3.0#2 SATA3.0#3
PCIE 2.0 x1
x1
COM1
DDR 3
BMC
AST2400
PHY
RTL8211F
VGA
CONN
IPMI LAN
SPI
FLASH
LAN I210
PCIE 2.0 x1
PCIE 2.0 x1
LAN I210
PCIE 2.0 x4
LAN I350
JLAN1
JLAN2JLAN3
1G LAN1G LAN
REAR IO
Rear I/O
