2-4 Control Panel Connectors/IO Ports
The I/O ports are color coded in conformance with the PC 99 specifi cation. See
the graphics below for the colors and locations of the various I/O ports.
Back Panel Connectors/IO Ports

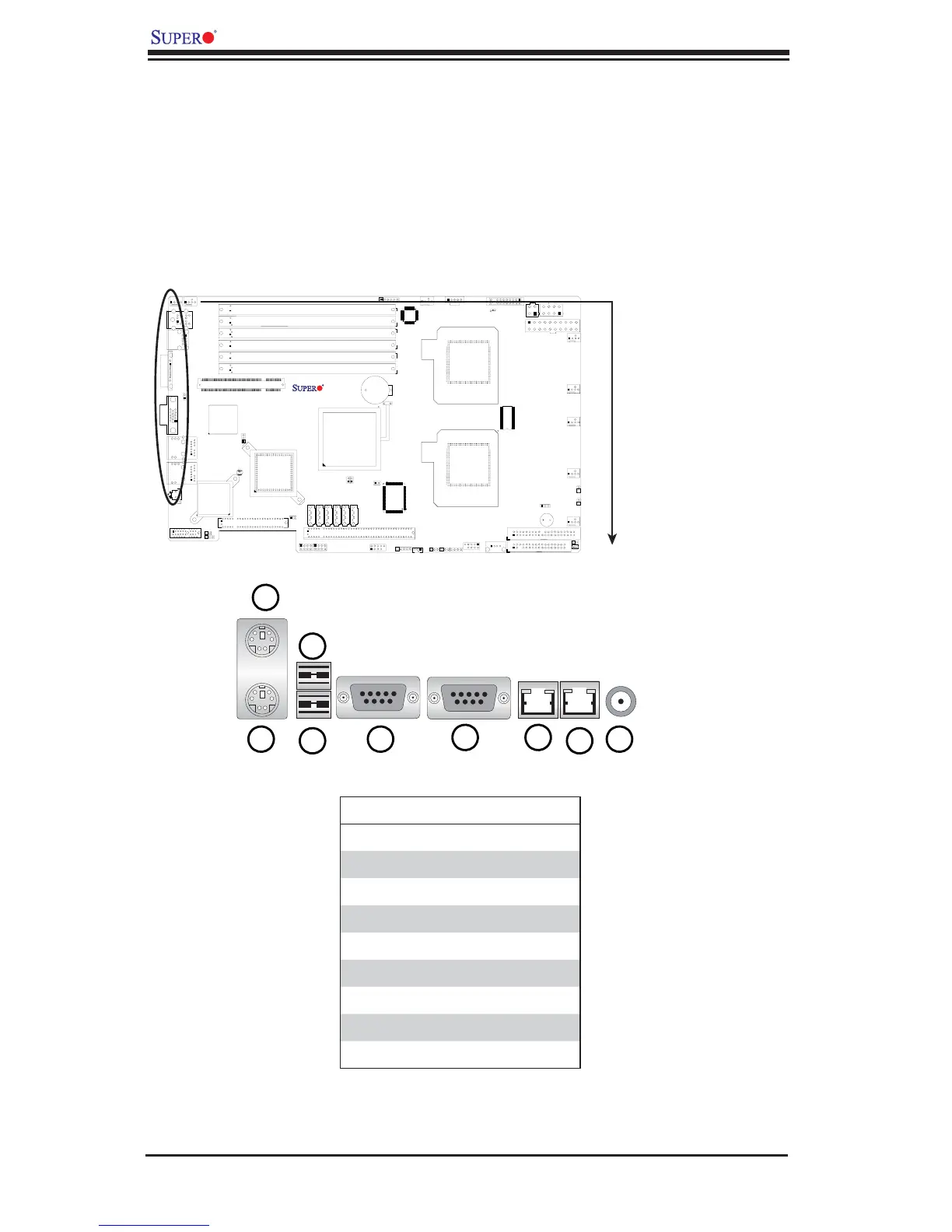

Back Panel I/O Port Locations and Defi nitions
1
2
3
4
5
6
7
8
9
Back Panel Connectors
1 Keyboard (Purple)
2 PS/2Mouse (Green)
3 USB 0
4 USB 1
5 COM 1 (Turquoise)
6 VGA (Blue)
7 LAN 1
8 LAN 2
9 UID Switch
(See Section 2-5 for details.)
