Power LED/Speaker
On the JD1 header, pins 1-3 are for a
power LED, and pins 4-7 are for the
speaker. See the table on the right for
speaker pin defi nitions.
Note: The speaker connector
pins are for use with an external
speaker. If you wish to use the on-
board speaker, you should close
pins 6-7 with a jumper.
GLAN 1/2 (Giga-bit Ethernet
Ports)
Two G-bit Ethernet ports are located
at JLAN1/JLAN2 on the I/O back-
plane. These ports accept RJ45 type
cables.
Speaker Connector
Pin Defi nitions
Pin Setting Defi nition
Pins 6-7 Internal Speaker
Pins 4-7 External Speaker

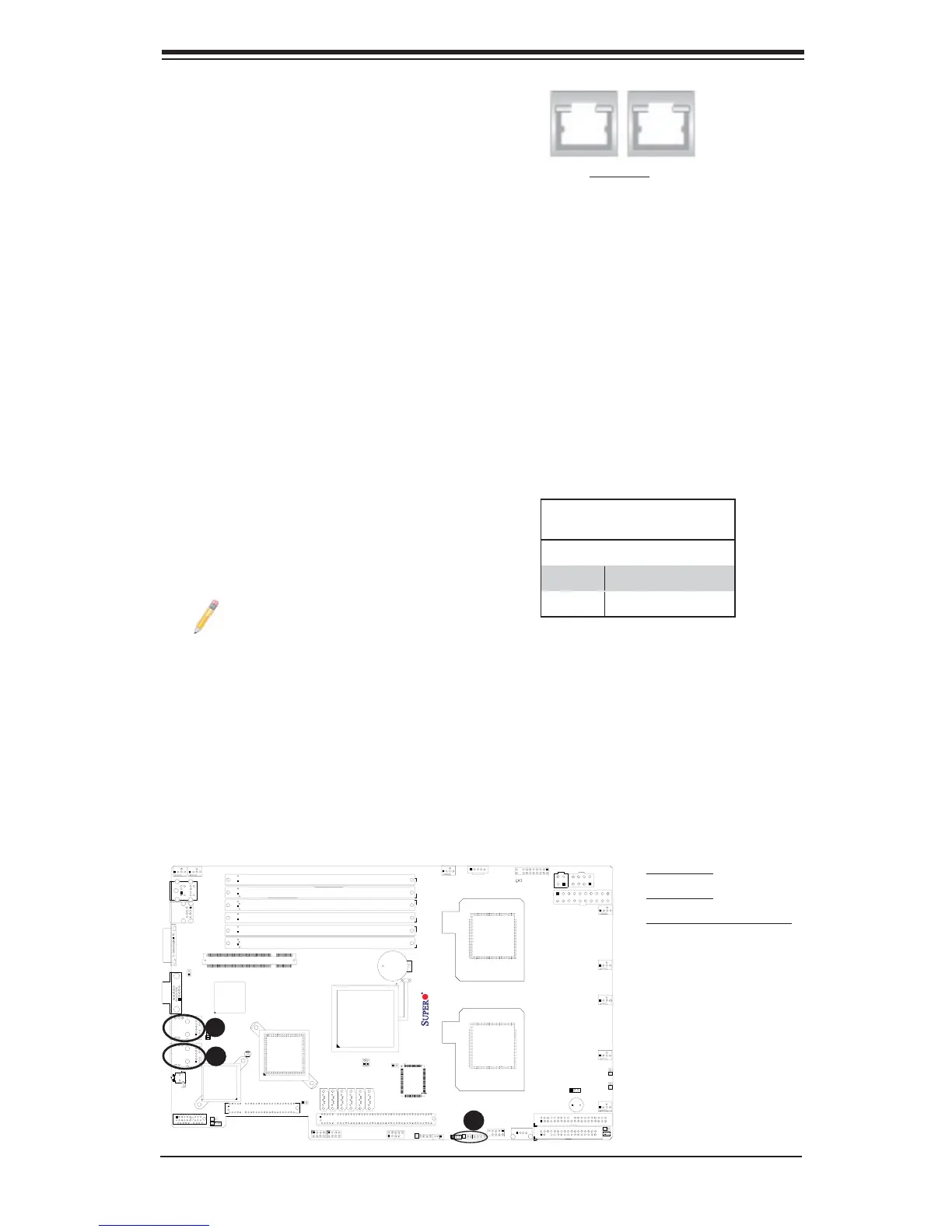

A
A. GLAN1
B. GLAN2
C. PWR LED/Speaker
GLAN1/2
B
C
To Next Page
