Supermicro X7DCU - Compact Flash Master;Slave Select

2-26
X7DCU User's Manual
LE2
SW1
JD1
JBT1
JWOR1
JL1
JOH1
JCF1
JK1
JPEW2
JP6
JP7
JPL1
JWD1
JIDE
FAN6
FAN5
FAN7
JWF1
I-SATA0
CPU2
CPU1
SXB2:PCI-E X8
UIOP
BANK3
JWOL
SGPIO2
SGPIO1
COM2
CPU FAN1
KB/MS
SMBUS_PS
COM1
USB0/1
BANK2
LAN1
VGA
BANK1
DIMM1C
DIMM2B
DIMM1A
DIMM1B
DIMM2A
LAN2
CPU FAN2
Compact Flash
IDE
Floppy
SXB1:PCI-E X16
USB 4
USB 2/3
JPEW1
Battery
DIMM2C
SIMSO IPMI
VGA CTRL
LAN CTRL
Intel 5100
North Bridge
Intel ICH9R
South Bridge
USB5
LE19
X7DCU
S I/O
I-SATA1
I-SATA2
I-SATA3
I-SATA4
I-SATA5
Buzzer
JF1
JPW1
JPW2
JPW3
FAN1
FAN2
FAN3
FAN8
FAN4
JPG1
A
A. Compact Flash Mas-
ter/Slave Select

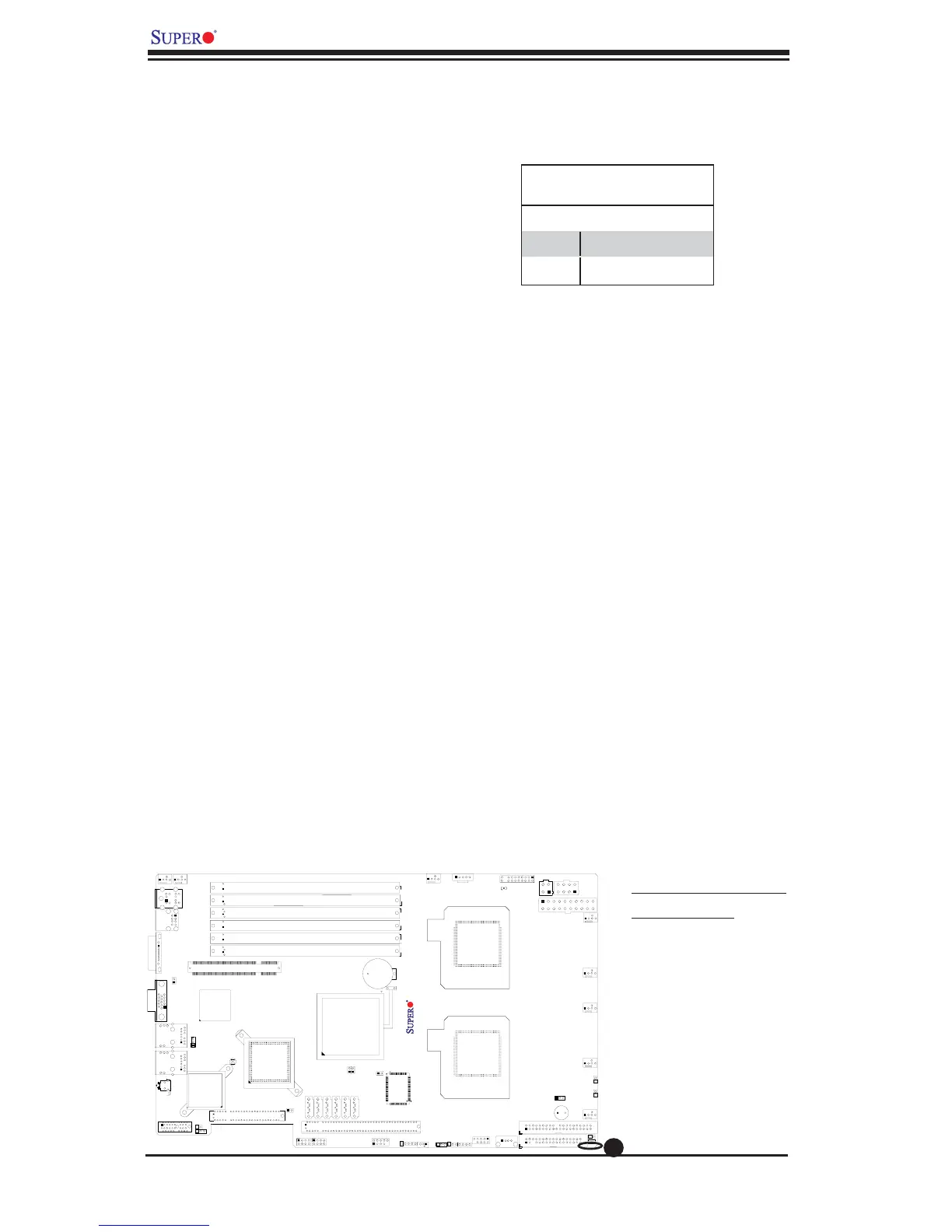

Compact Flash Master/Slave Select
A Compact Flash Master (Primary)/Slave
(Secondary) Select jumper is located at
JPCF1. Close this jumper to enable the
Compact Flash Card. For the Compact
Flash Card to work properly, you will need
to connect the Compact Flash Card power
cable to JPWF1, and enable the Compact
Flash Jumper located at JPCF1. Refer to
the board layout below for the location.
Compact Flash Card Master/
Slave Select
Jumper Defi nition
Open Slave (Secondary)
Closed Master (Primary)
