Supermicro X7DCU - Hdd;Uid Led; NIC1;NIC2 LED Indicators

Chapter 2: Installation
2-11
LE2
SW1
JD1
JBT1
JWOR1
JL1
JOH1
JCF1
JK1
JPEW2
JP6
JP7
JPL1
JWD1
JIDE
FAN6
FAN5
FAN7
JWF1
I-SATA0
CPU2
CPU1
SXB2:PCI-E X8
UIOP
BANK3
JWOL
SGPIO2
SGPIO1
COM2
CPU FAN1
KB/MS
SMBUS_PS
COM1
USB0/1
BANK2
LAN1
VGA
BANK1
DIMM1C
DIMM2B
DIMM1A
DIMM1B
DIMM2A
LAN2
CPU FAN2
Compact Flash
IDE
Floppy
SXB1:PCI-E X16
USB 4
USB 2/3
JPEW1
Battery
DIMM2C
SIMSO IPMI
VGA CTRL
LAN CTRL
Intel 5100
North Bridge
Intel ICH9R
South Bridge
USB5
LE19
X7DCU
S I/O
I-SATA1
I-SATA2
I-SATA3
I-SATA4
I-SATA5
Buzzer
JF1
JPW1
JPW2
JPW3
FAN1
FAN2
FAN3
FAN8
FAN4
JPG1
FP Power
B
OH/Fan Fail/
PWR Fail/UID LED
1
NIC1 LED
FP Reset B
u
2
HDD LED
Power LED
Reset
PWR
Vcc
UID Switch/Vcc
Vcc
Blue_LED_Cath
o
(UID)/Vcc
Ground
Ground
1920
Vcc
X
Ground
NMI
X
Vcc
PWR Fail LED
NIC2 LED

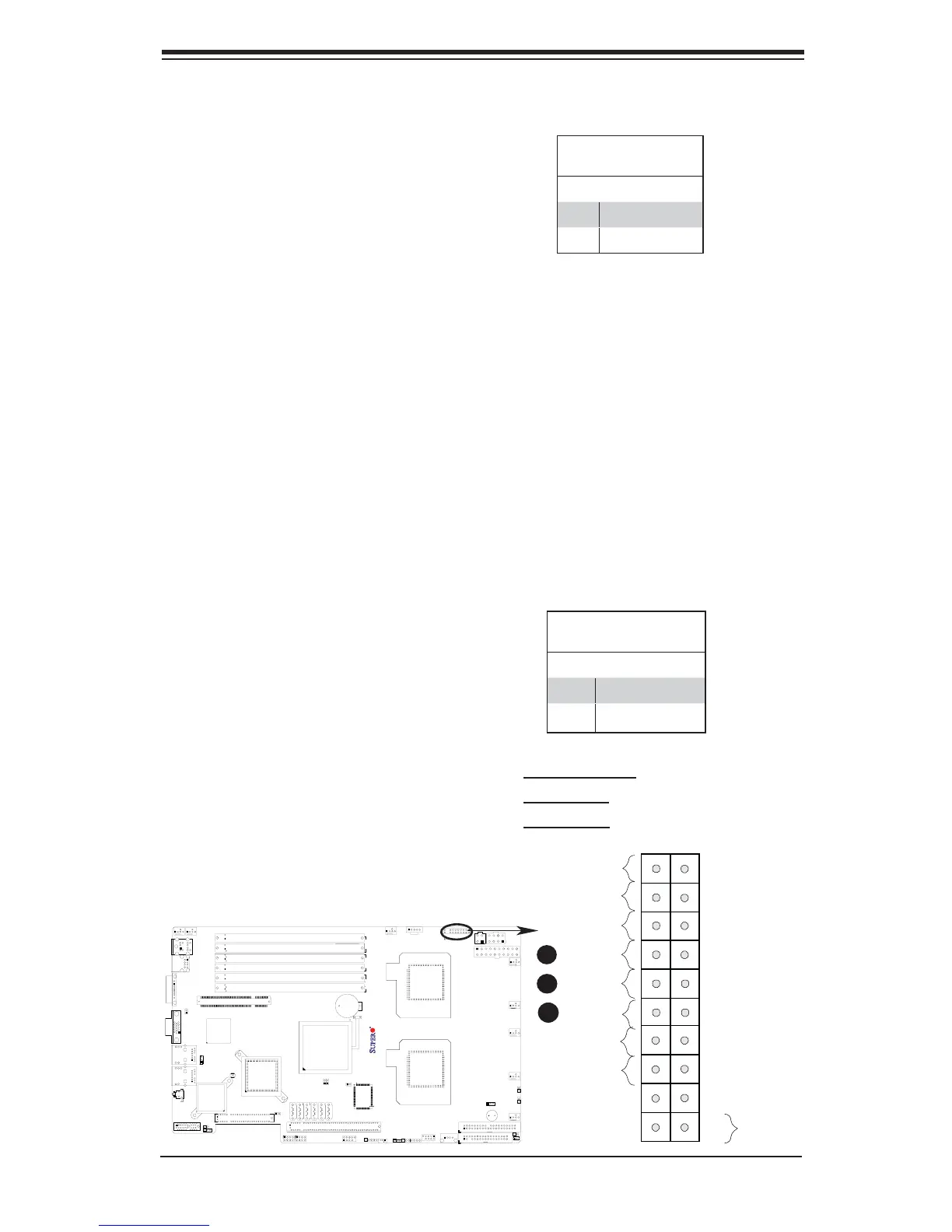

NIC1/NIC2 LED Indicators
The NIC (Network Interface Control-
ler) LED connection for GLAN port1 is
located on pins 11 and 12 of JF1 and
the LED connection for GLAN Port2
is on Pins 9 and 10. Attach the NIC
LED cables to display network activity.
Refer to the table on the right for pin
defi nitions.
HDD/UID LED
The HDD/UID LED connection is lo-
cated on pin 14 of JF1. Attach a hard-
drive LED cable here to display disk
activity (for SATA hard drives on the
system). The UID LED (LE2) works
in conjunction with the UID Switches.
When the user presses and releases
a UID Switch, the UID LED will be
turned on or off to indicate the location
of the unit. See the table on the right
for pin defi nitions. (For the UID LED
and Switch, please refer to P. 2-22.)
HDD/UID LED
Pin Defi nitions (JF1)
Pin# Defi nition
13 UID Signal
14 HD Active
GLAN1/2 LED
Pin Defi nitions (JF1)
Pin# Defi nition
9/11 Vcc
10/12 Ground
A
B
C
A. HDD/UID LED
B. NIC1 LED
C. NIC2 LED
