Supermicro C7B250-CB-MK Motherboard User’s Manual
JTPM1
RST
PWR
ON
XOH/FF
X
NIC
1
PWR
LED
HDD
LED
JF1
USB 2/3USB 8/9(3.0)
2-3:BIOS RECOVERY
1-2:NORMAL JBR1
WATCH DOG
1-2:RST
2-3:NMI
JWD1:
JBR1
JPME2
AUDIO FP
COM1
JD1:SPEAKER :1-4
JD1
JSD1
JWD1
JL1
JL1:
CHASSIS
INTRUSION
2-3:ME MANUFACTURING MODE
JPME2:
1-2:NORMAL
I-SATA5
I-SATA4
I-SATA3
I-SATA2
I-SATA1
I-SATA0
PCH SLOT1 PCI-E 3.0 X1
JBT1
PCH SLOT2 PCI-E 3.0 X4
J9702
JSTBY1
J9701
JI2C1 JI2C2
JSPDIF_OUT
5V STBY POWER
JSTBY1:
CPU SLOT3 PCI-E 3.0 X16
OFF:DISABLE
JI2C1/JI2C2
ON :ENABLE
HD AUDIO
PCIE M.2
CONNECTOR 1
SYS_FAN2
USB 6/7(3.0)
LAN
CPU
JPW1
DVI
JPUSB1:USB0/1 WAKE UP
HDMI/DP
DIMMB2
DIMMA2
2-3 DISABLE
1-2 ENABLE
CPU_FAN1
JVR1
JPUSB1
JPW2
KB/MOUSE
LED1
REV: 1.00
C7B250-CB-MK
DESIGNED IN USA
+
MAC CODE
BAR CODE
BIOS LICENSE
C
A
+
USB 4/5
(3.0)
USB 0/1
B1
2280
2260
2242
SYS_FAN1
JCMOS
MH10
MH11
MH12

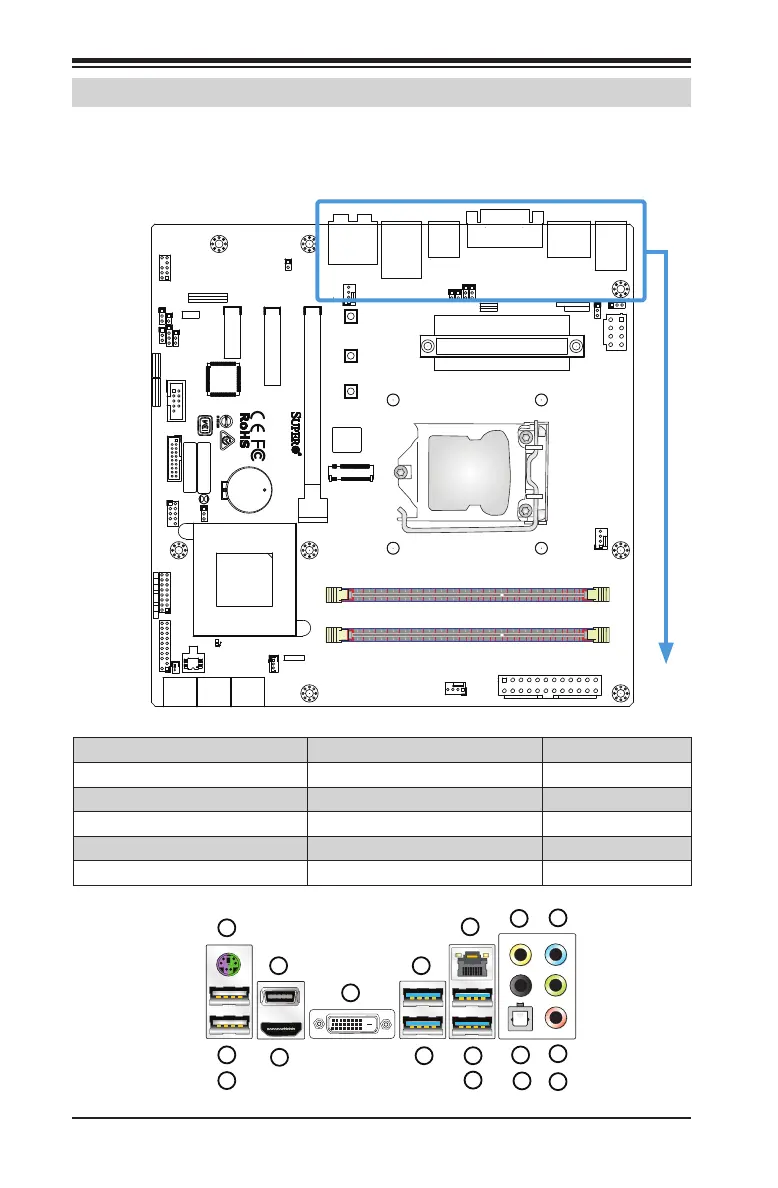

2-6 Connector and I/O Ports
The I/O ports are color coded in conformance with the industry standards.
See the gure below for the colors and locations of the various I/O ports.
I/O Back Panel
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
A. PS/2 Keyboard/Mouse Port G. USB 3.0 Port 4 L. Center/LFE Out
B. USB 2.0 Port 0 H. USB 3.0 Port 5 M. Surround Out
C. USB 2.0 Port 1 I. RJ-45 Gigabit Ethernet Port N. SPDIF Out
D. DisplayPort J. USB 3.0 Port 6 O. Line In
E. HDMI Port K. USB 3.0 Port 7 P. Line Out
F. DVI-D Port Q. Mic In
