Chapter 2: Installation
2-21
X9DRH-7F/iF/iF-NV/7TF/iTF
Rev. 1.02

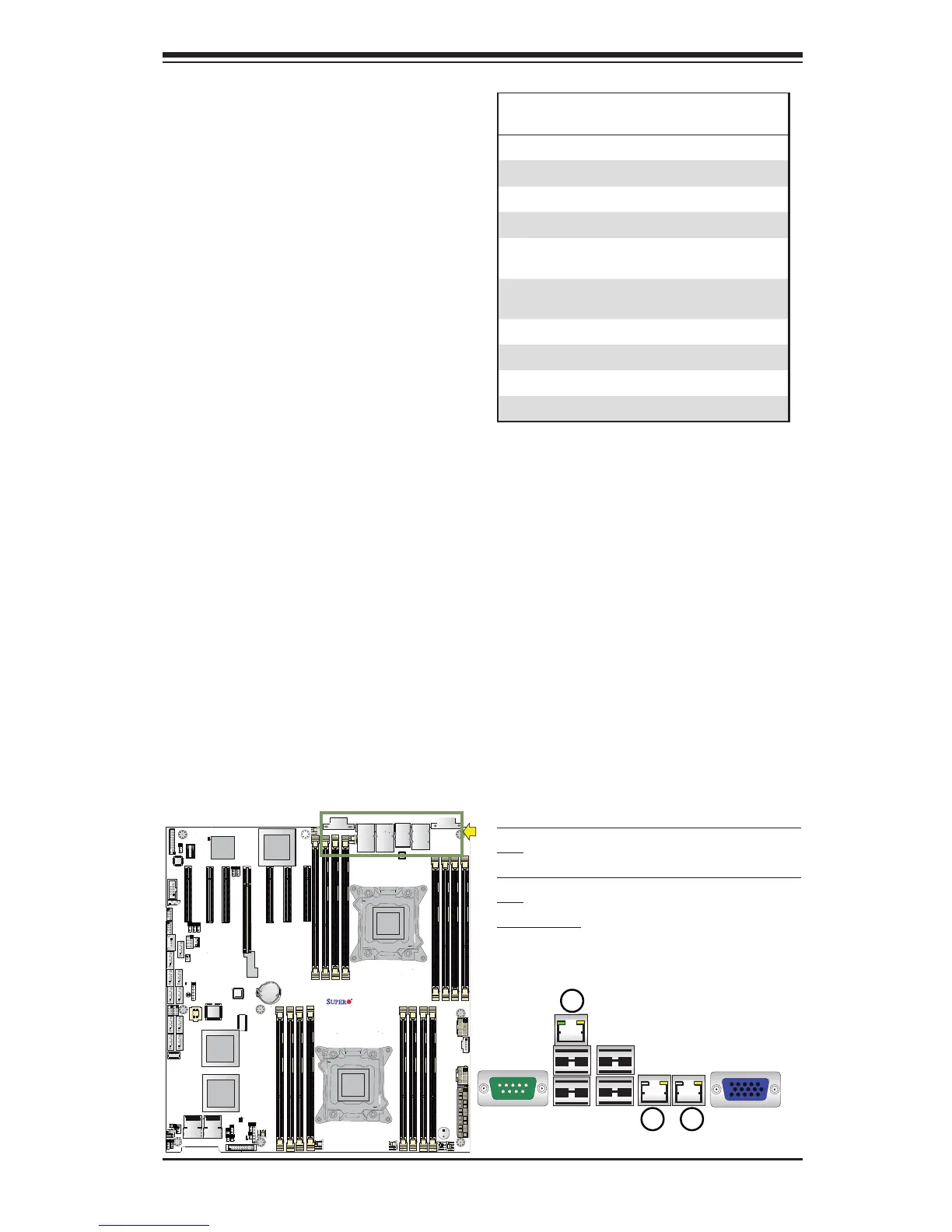

1. LAN1 (GLAN for -7F/iF/iF-NV, 10 G for-7TF/
iTF)
2. LAN2 (GLAN for -7F/iF/iF-NV, 10 G for-7TF/
iTF)
3. IPMI_LAN
Ethernet Ports
Two Gigabit Ethernet ports (LAN1/2)
are located on the I/O backplane on
the motherboard to provide inter-
net connections. LAN1/LAN2 ports
support 1GLAN connections on the
X9DRH-7F/iF/iF-NV models, and
support 10 GLAN connections on the
X9DRH-7TF/iTF models. In addition,
an IPMI_Dedicated LAN, located
above USB 0/1 ports on the back-
plane, provides KVM support for IPMI
2.0. All these ports accept RJ45 type
cables. (Note: Please refer to the
LED Indicator Section for LAN LED
information.)
LAN Ports
PinDenition
Pin# Denition
1 P2V5SB 10 SGND
2 TD0+ 11 Act LED
3 TD0- 12 P3V3SB
4 TD1+ 13 Link 100 LED (Yel-
low, +3V3SB)
5 TD1- 14 Link 1000 LED
(Yellow, +3V3SB)
6 TD2+ 15 Ground
7 TD2- 16 Ground
8 TD3+ 17 Ground
9 TD3- 18 Ground
(NC: No Connection)
