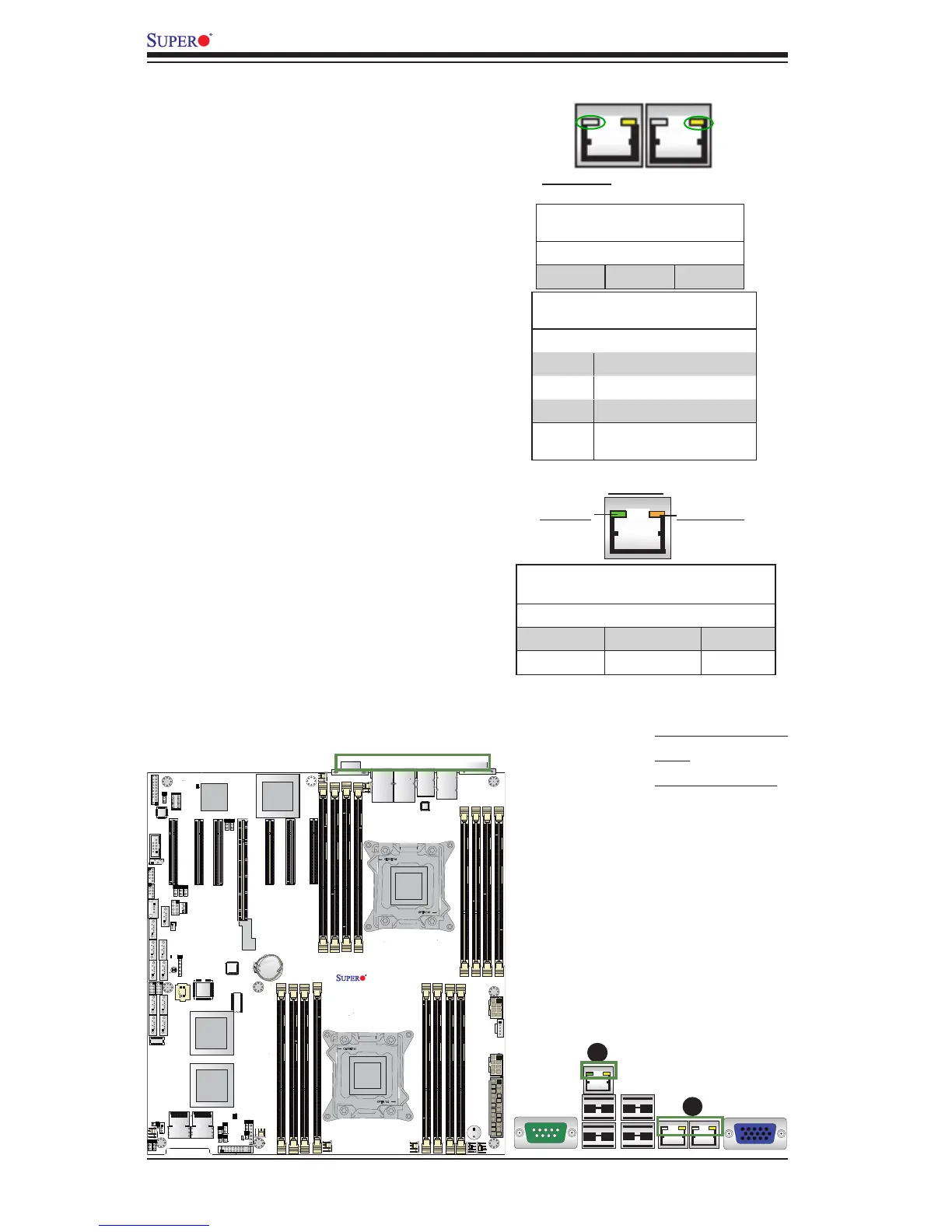

2-9 Onboard LED Indicators
A. Ethernet Port
LEDs
B. IPMI LAN LEDs
IPMI Dedicated LAN LEDs
In addition to the Gigabit Ethernet ports,
an IPMI Dedicated LAN is also located
above the Backplane USB ports 0/1 on the
motherboard. The amber LED on the right
indicates activity, while the green LED on
the left indicates the speed of the con-
nection. See the tables at right for more
information.
LAN 1/LAN 2
IPMI LAN
(X8ST3-F)
Link LED
Activity LED
IPMI LAN
IPMI LAN Link LED (Left) &
Activity LED (Right)
Color/State Denition
Link (Left) Green: Solid 100 Mbps
Activity (Right) Amber: Blinking Active
GLAN LEDs
The LAN 1/2 ports are located on the IO
Backplane. Please note that LAN1/LAN2
support 10GLAN connections on the -7TF/
iTF models, and support 1GLAN for the
-7F/iF/iF-NV models. Each Ethernet LAN
port has two LEDs. The yellow LED on the
right indicates activity. The Link LED on the
left may be green, amber or off to indicate
the speed. See the tables at right for more
information.
Activity LED
GLAN Link Indicator
LED Settings
LED Color Denition
Off No Connection or 10 Mbps
Green 100 Mbps
Amber 1 Gbps
Green 1 Gbps (when LAN 1~4 are
all used for 1G connections.
Link LED
GLAN Activity Indicator (Left)
LED Settings
Color Status Denition
Yellow Flashing Active
Rear View (when facing the
rear side of the chassis)
A
B
JS3
SAS4-7
JPWR1
JPWR2
JTPM1
T-SGPIO1
T-SGPIO2
FANB
FANA
FAN1
FAN6
JF1
JOH1
JWD
JPB1
JPG1
JPLAN1
JBT1
BT1
J21
JD1
JIPMB1
SP1
LE1
LEDS2
DM1
VGA
JSD1
LAN1
JSTBY1
S-SATA2
S-SATA3
S-SATA1
I-SATA1
I-SATA0
S-SATA0
P2 DIMM3A
P2 DIMM3B P2 DIMM4A
P2 DIMM4B
P1 DIMMA1
P1 DIMMA2
P1 DIMMB1
P1 DIMMB2
P1 DIMMD2
P1 DIMMD1
P1 DIMMC2
P1 DIMMC1
CPU1 SLOT1 PCI-E 3.0 x8
CPU2 SLOT4 PCI-E 3.0 x16
CPU2 SLOT6 PCI-E 3.0 x8
P2 DIMME1
P2 DIMME2
P2 DIMMF1
P2 DIMMF2
USB2/3
CPU2 SLOT7 PCI-E 3.0 x8
COM2
IPMI_LAN
FAN2
LAN2
COM1
USB0/1
P2-DIMMH2
P2-DIMMH1
P2-DIMMG2
P2-DIMMG1
Battery
JPIC21
BIOS
BMC CTRL
LAN CTRL
Intel IO Hub
LSI SAS
CTRL
SAS0-3
J22
X9DRH-7F/iF/iF-NV/7TF/iTF
Rev. 1.02
CLOSE 1st
OPEN 1st
CLOSE 1st
OPEN 1st
CPU2
CPU1
CPU1 SLOT3 PCI-E 3.0 x8
KB/MS
FAN5
CPU2 SLOT5 PCI-E 3.0 x8
CPU1 SLOT2 PCI-E 3.0 x8
JI2C1
JI2C2
I-SATA4
I-SATA5
I-SATA2
I-SATA3
JL1
FP CTRL
JPS1
LEDS1
FAN4
FAN3
USB4/5
USB6
USB8/9
T-SGPIO-S
JPME2
JPME1
