Supero X9DRH-7F User Manual

Chapter 2: Installation
2-33

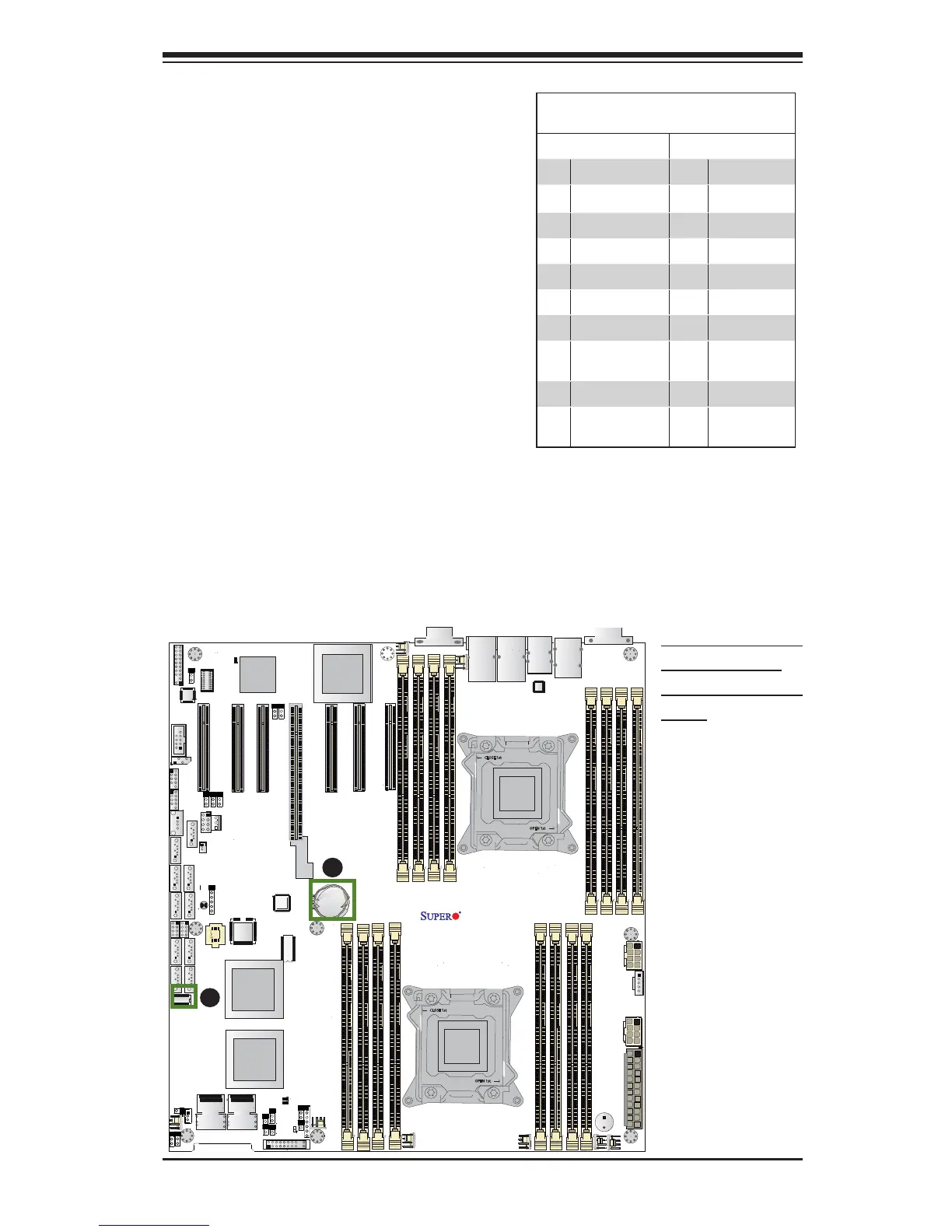

A. BBU (Optional for
X9DRH-7F/7TPF)
B. Onboard CMOS
Battery
Onboard CMOS Battery
The onboard CMOS battery is located next to
memory slot P1-DIMMC1. Be sure to use the
type of battery recommended by the manu-
facturer. Following the instructions listed in
Chapter 3 for battery removal and installation.
JS3
SAS4-7
JPWR1
JPWR2
JTPM1
T-SGPIO1
T-SGPIO2
FANB
FANA
FAN1
FAN6
JF1
JOH1
JWD
JPB1
JPG1
JPLAN1
JBT1
BT1
J21
JD1
JIPMB1
SP1
LE1
LEDS2
DM1
VGA
JSD1
LAN1
JSTBY1
S-SATA2
S-SATA3
S-SATA1
I-SATA1
I-SATA0
S-SATA0
P2 DIMM3A
P2 DIMM3B P2 DIMM4A
P2 DIMM4B
P1 DIMMA1
P1 DIMMA2
P1 DIMMB1
P1 DIMMB2
P1 DIMMD2
P1 DIMMD1
P1 DIMMC2
P1 DIMMC1
CPU1 SLOT1 PCI-E 3.0 x8
CPU2 SLOT4 PCI-E 3.0 x16
CPU2 SLOT6 PCI-E 3.0 x8
P2 DIMME1
P2 DIMME2
P2 DIMMF1
P2 DIMMF2
USB2/3
CPU2 SLOT7 PCI-E 3.0 x8
COM2
IPMI_LAN
FAN2
LAN2
COM1
USB0/1
P2-DIMMH2
P2-DIMMH1
P2-DIMMG2
P2-DIMMG1
Battery
JPIC21
BIOS
BMC CTRL
LAN CTRL
Intel IO Hub
LSI SAS
CTRL
SAS0-3
J22
X9DRH-7F/iF/iF-NV/7TF/iTF
Rev. 1.02
CLOSE 1st
OPEN 1st
CLOSE 1st
OPEN 1st
CPU2
CPU1
CPU1 SLOT3 PCI-E 3.0 x8
KB/MS
FAN5
CPU2 SLOT5 PCI-E 3.0 x8
CPU1 SLOT2 PCI-E 3.0 x8
JI2C1
JI2C2
I-SATA4
I-SATA5
I-SATA2
I-SATA3
JL1
FP CTRL
JPS1
LEDS1
FAN4
FAN3
USB4/5
USB6
USB8/9
T-SGPIO-S
JPME2
JPME1
B
A
Battery Backup Unit (Optional for the
X9DRH-7F/7TF Only)
An onboard SAS Battery-Backup Unit (BBU)
connector is located at JS3 on the mother-
board. The BBU provides battery backup
support for onboard SAS to prevent data loss
during a power outage. An optional battery
backup accessory kit is required for BBU
support. Contact our sales at Supermicro to
purchase an LSI 2208 SAS Battery Backup
Accessory kit. Also, contact our tech support
for installation instructions and possible com-
ponent updates.
BBU
PinDenitions
Pin Denition Pin Denition
2 Inplace2 1 Inplace1
4 3V3 3 +12V
6 Ground 5 Ground
8 PFAIL_N 7 P1V5
10 BBE 3V3 9 Ground
12 3V3 11 P3V3 STBY
14 Ground 13 VBB15
16 BBU_SMBDA
3V3
15 Ground
18 Ground 17 +3.3V
20 BBU_SMBCL
3V3
19 Ground
