FP CTRL
JPS1
LEDS1
FAN4
FAN3
USB4/5
USB6
USB8/9
T-SGPIO-S
JPME2
JPME1
Note: For more information on SATA HostRAID conguration, please refer
to the Intel SATA HostRAID User's Guide posted on our Website @ http://
www.supermicro.com.
Serial ATA2/SAS3
PinDenitions
Pin# Denition
1 Ground
2 TX_P
3 TX_N
4 Ground
5 RX_N
6 RX_P
7 Ground
A. I-SATA0
B. I-SATA1
C. S-SATA0
D. S-SATA1
E. S-SATA2
F. S-SATA3
G. I-SATA2
H. I-SATA3
I. I-SATA4
J. I-SATA5
K SAS 0~3
L. SAS 4~7

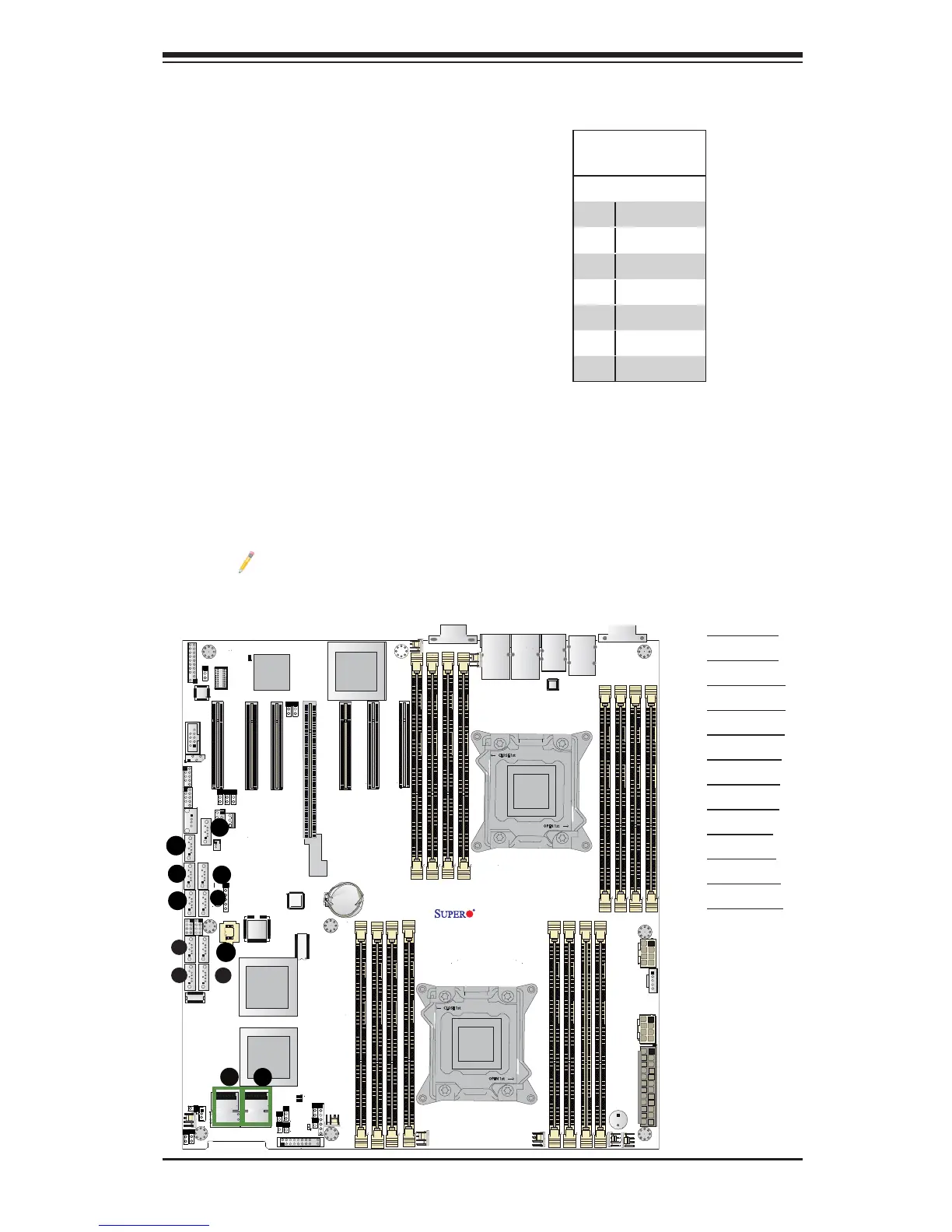

Serial ATA Ports
There are ten Serial ATA Ports (I-SATA0~I-
SATA 5) located on the motherboard, in-
cluding eight SATA2 ports (I-SATA2~5, S-
SATA0~3) and two SATA3 ports (I-SATA0~1).
These ports provide Serial Link signal connec-
tions, which are faster than the connections
of Parallel ATA. See the table on the right for
pin denitions.
C
A
SAS2 Ports (X9DRH-7F/7TF Only)
Eight Serial_Attached_SCSI Ports (SAS 0~3,
4~7) located on the X9DRH-7F/7TF to provide
serial link connections. These ports are sup-
ported by the Intel C602 PCH. See the table
on the right for pin denitions.
To Next Page
