Supero X9DRH-7F User Manual

2-30
X9DRH-7F/-iF/-iF-NV/-7TF/-iTF Motherboard User’s Manual
JS3
SAS4-7
JPWR1
JPWR2
JTPM1
T-SGPIO1
T-SGPIO2
FANB
FANA
FAN1
FAN6
JF1
JOH1
JWD
JPB1
JPG1
JPLAN1
JBT1
BT1
J21
JD1
JIPMB1
SP1
LE1
LEDS2
DM1
VGA
JSD1
LAN1
JSTBY1
S-SATA2
S-SATA3
S-SATA1
I-SATA1
I-SATA0
S-SATA0
P2 DIMM3A
P2 DIMM3B P2 DIMM4A
P2 DIMM4B
P1 DIMMA1
P1 DIMMA2
P1 DIMMB1
P1 DIMMB2
P1 DIMMD2
P1 DIMMD1
P1 DIMMC2
P1 DIMMC1
CPU1 SLOT1 PCI-E 3.0 x8
CPU2 SLOT4 PCI-E 3.0 x16
CPU2 SLOT6 PCI-E 3.0 x8
P2 DIMME1
P2 DIMME2
P2 DIMMF1
P2 DIMMF2
USB2/3
CPU2 SLOT7 PCI-E 3.0 x8
COM2
IPMI_LAN
FAN2
LAN2
COM1
USB0/1
P2-DIMMH2
P2-DIMMH1
P2-DIMMG2
P2-DIMMG1
Battery
JPIC21
BIOS
BMC CTRL
LAN CTRL
Intel IO Hub
LSI SAS
CTRL
SAS0-3
J22
X9DRH-7F/iF/iF-NV/7TF/iTF
Rev. 1.02
CLOSE 1st
OPEN 1st
CLOSE 1st
OPEN 1st
CPU2
CPU1
CPU1 SLOT3 PCI-E 3.0 x8
KB/MS
FAN5
CPU2 SLOT5 PCI-E 3.0 x8
CPU1 SLOT2 PCI-E 3.0 x8
JI2C1
JI2C2
I-SATA4
I-SATA5
I-SATA2
I-SATA3
JL1
FP CTRL
JPS1
LEDS1
FAN4
FAN3
USB4/5
USB6
USB8/9
T-SGPIO-S
JPME2
JPME1

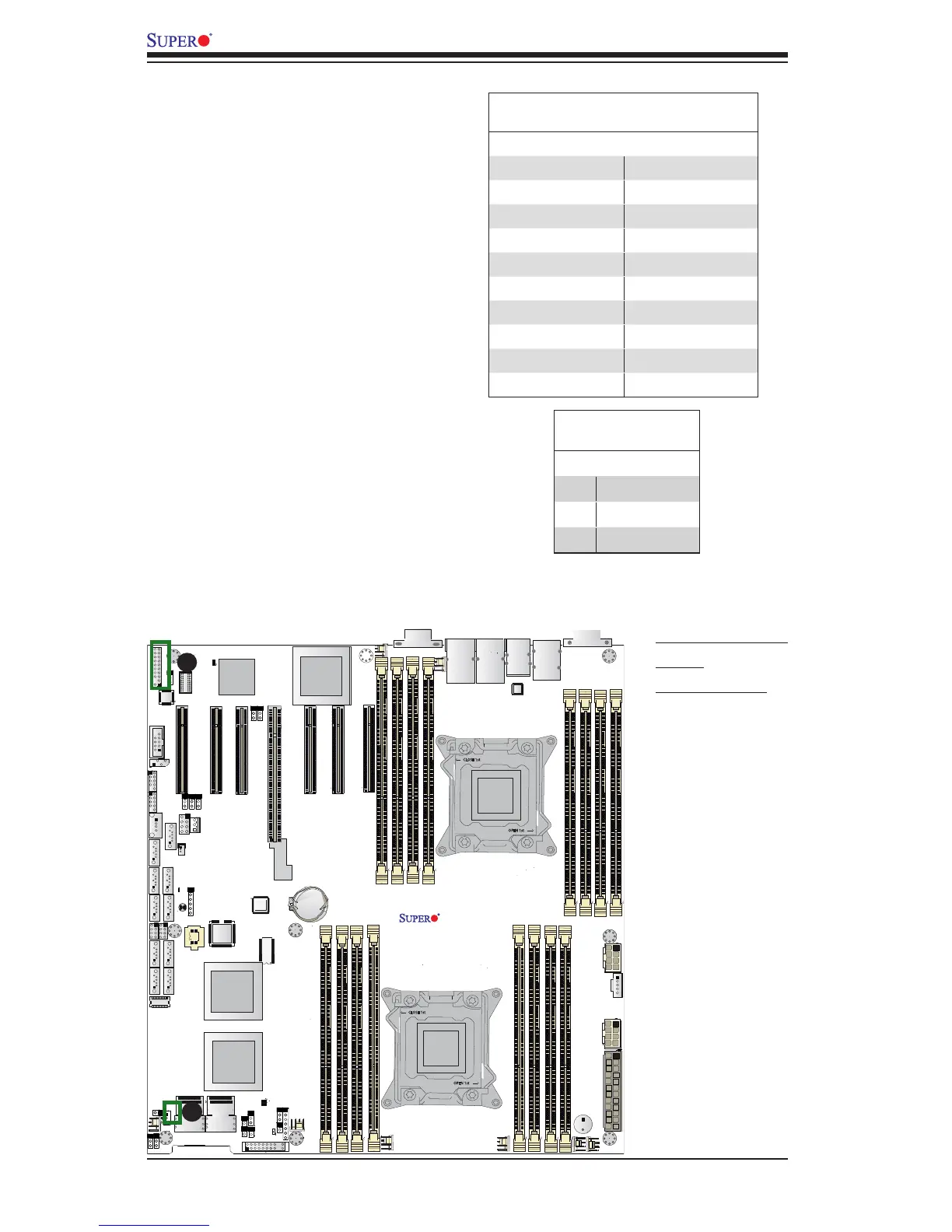

A. TPM/Port 80
Header
B. Standby PWR
TPM Header/Port 80 Header
A Trusted Platform Module/Port 80
header is located at JTPM1 to provide
TPM support and Port 80 connection.
Use this header to enhance system
performance and data security. See
the table on the right for pin deni-
tions.
TPM/Port 80 Header
PinDenitions
Pin # Denition Pin # Denition
1 LCLK 2 GND
3 LFRAME# 4 <(KEY)>
5 LRESET# 6 +5V (X)
7 LAD 3 8 LAD 2
9 +3.3V 10 LAD1
11 LAD0 12 GND
13 SMB_CLK4 14 SMB_DAT4
15 +3V_DUAL 16 SERIRQ
17 GND 18 CLKRUN# (X)
19 LPCPD# 20 LDRQ# (X)
A
B
Standby Power
The Standby Power header is located
at JSTBY1 on the motherboard. See
the table on the right for pin deni-
tions. (You must also have a cable to
use this feature.)
Standby Power
PinDenitions
Pin# Denition
1 +5V Standby
2 Ground
3 Wake-up
