2-40
X9DRL-3F/X9DRL-iF Motherboard User’s Manual

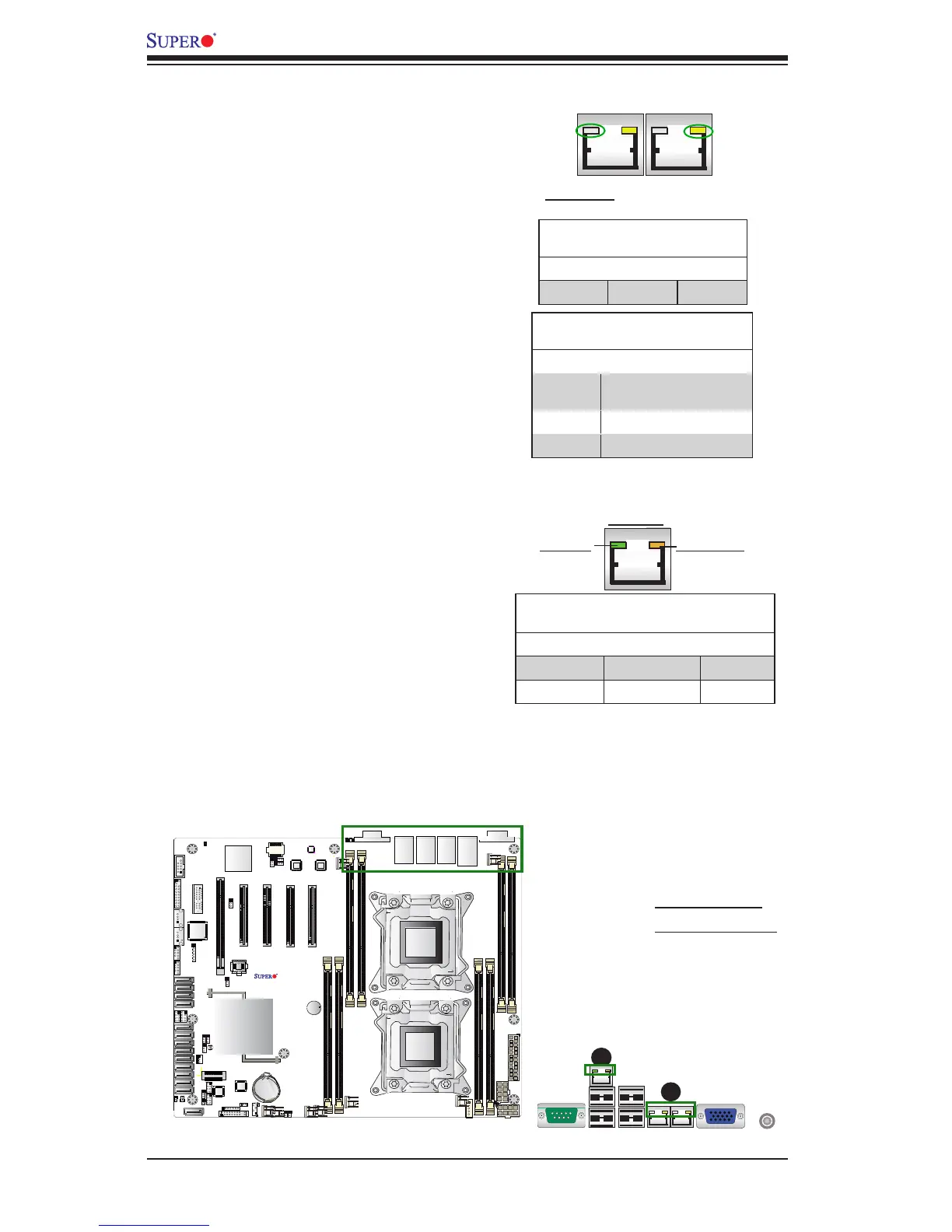

2-9 Onboard LED Indicators
A. LAN1/2 LEDs
B. IPMI LAN LEDs
IPMI Dedicated LAN LEDs
In addition to LAN 1/LAN 2, an IPMI
Dedicated LAN is also located on the I/O
Backplane of the motherboard. The amber
LED on the right indicates activity, while the
green LED on the left indicates the speed of
the connection. See the table on the right
for more information.
Link LED
Activity LED
IPMI LAN
IPMI LAN Link LED (Left) &
Activity LED (Right)
Color/State Denition
Link (Left) Green: Solid 100 Mbps
Activity (Right) Amber: Blinking Active
GLAN LEDs
There are two GLAN ports on the moth-
erboard. Each Gigabit Ethernet LAN port
has two LEDs. The Yellow LED on the
right indicates activity. The Link LED on
the left side may be green, amber or off
to indicate the speed of the connection.
Activity LED
GLAN Speed/Link Indicator (Left)
LED Settings
LED Color Denition
Off No Connection,10 Mbps or
100 Mbps
Green 10 Gbps
Amber 1 Gbps
Link LED
GLAN Activity Indicator (Right)
LED Settings
Color Status Denition
Yellow Flashing Active
Rear View (when facing the
rear side of the chassis)
A
B
