2-42
X9DRL-3F/X9DRL-iF Motherboard User’s Manual
Note: For more information on SATA HostRAID conguration, please refer
to the Intel SATA HostRAID User's Guide posted on our website @ http://
www.supermicro.com..
JSD1
P2-DIMMH1
P2-DIMMG1
P2-DIMMF1
P2-DIMME1
P1-DIMMD1
P1-DIMMC1
P1-DIMMB1
P1-DIMMA1
COM1
JPW4
JTPM1
LAN1LAN2
COM2
JPW1
JPW2
JPI2C1
JIPMB1
FAN3
FAN4
FAN1
FAN5
FAN2
FAN6
JPG1
JPB1
JWD1
JPME1
JWP1
JPL2
JPL1
LED2
LEDM1
JD1
JF1
6-SGPIO2
T-SGPIO1
I-SATA0
I-SATA1
SAS/SATA1
SAS/SATA2
SAS/SATA3
S-SAS4
S-SAS5
S-SAS6
S-SAS7
JL1
JI2C1
JI2C2
I-SATA2
I-SATA5
I-SATA4
I-SATA3
JBT1
JSTBY1
JRK1
UID
SLOT1 PCI-E 2.0 X1
USB0/1USB2/3
USB5
USB4
PCH
SLOT2 PCI 33MHZ
PCH SLOT3 PCI-E 2.0 X4 (IN X8)
CPU1 SLOT4 PCI-E 3.0 X8
CPU1 SLOT5 PCI-E 3.0 X8
CPU1 SLOT6 PCI-E 3.0 X8)
X9DRL-iF
Rev. 1.01
IPMI_LAN
BUZZER
KB/MOUSE
V
T
FANA
FANB
a
VGA
A
ah
USB8/9
CPU1
USB6/7
CPU2
6-SGPIO1
SAS/SATA0
Battery
JOH1
JP2
JPME2
LED1
JUIDB1
J9
JITP2
T-SGPIO2
BMC CTRL
BIOS
LAN CTRL
LAN CTRL
BMC Firmware
CPLD
Intel PCH
For X9DRL-iF/
X9DRL-3F:
A. I-SATA0
B. I-SATA1
C. I-SATA2
D. I-SATA3
E. I-SATA4
F. I-SATA5
G. SAS/SATA0
H. SAS/SATA1
I. SAS/SATA2
J. SAS/SATA3
For X9DRL-3F:
K. S-SAS4
L. S-SAS5
M. S-SAS6
N. S-SAS7
Serial ATA/SAS
PinDenitions
Pin# Denition
1 Ground
2 TX_P
3 TX_N
4 Ground
5 RX_N
6 RX_P
7 Ground

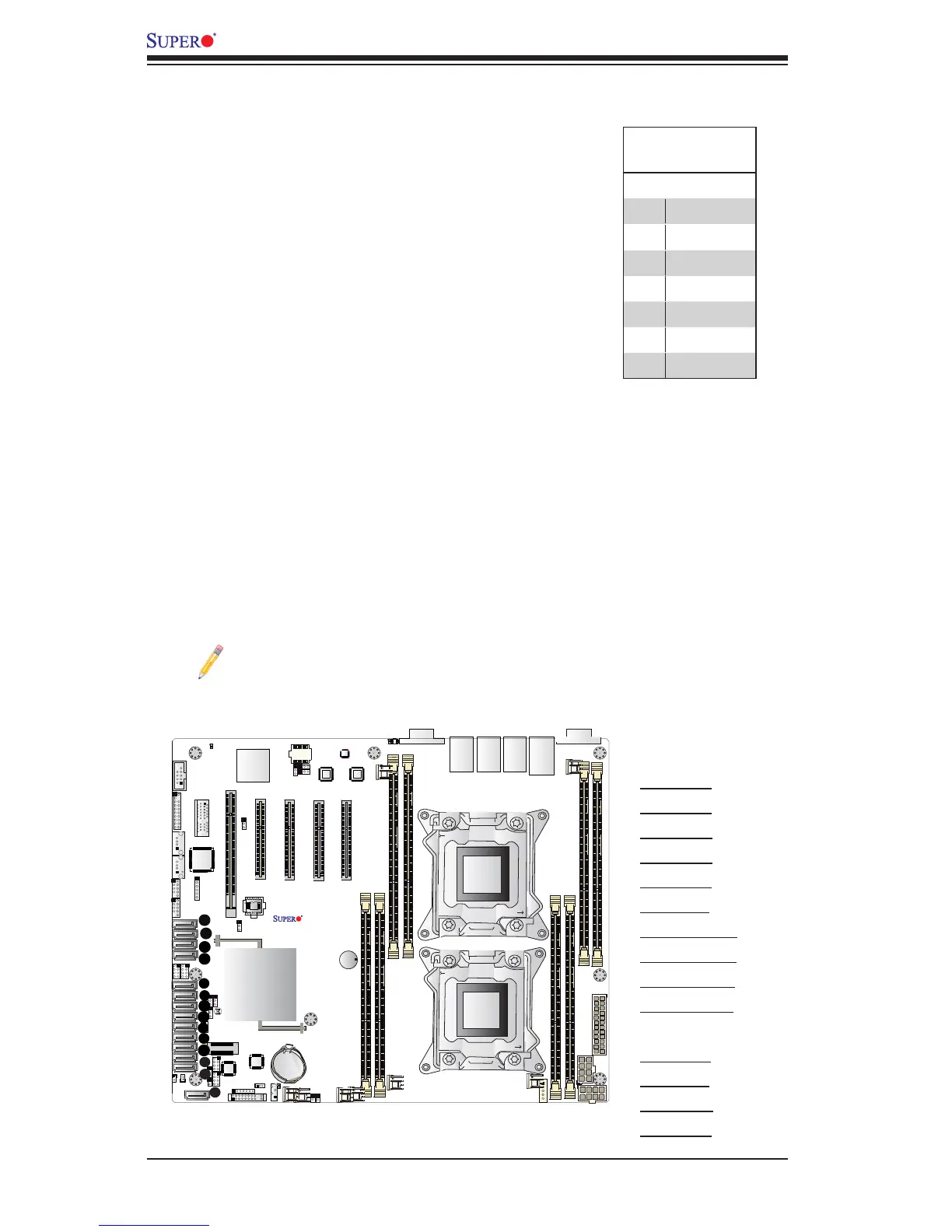

Serial ATA (SATA) Ports (X9DRL-iF Only)
There are two SATA 3.0 (I-SATA 0/1), and eight SATA
2.0 ports (I-SATA2~I-SATA5 and S-SATA0~S-SATA3)
located on the X9DRL-iF. These ports provide serial-
link signal connections, which are faster than the con-
nections of Parallel ATA. See the table on the right for
pin denitions.
C
A
SAS Ports (X9DRL-3F Only)
In addition to four I-SATA ports, eight Serial_At-
tached_SCSI connectors (SAS 0~7) are located on the
X9DRL-3F to provide SAS support. Please note that
SAS0~SAS3 can also be used for SATA connections.
See the table on the right for pin denitions.
To Next Page
