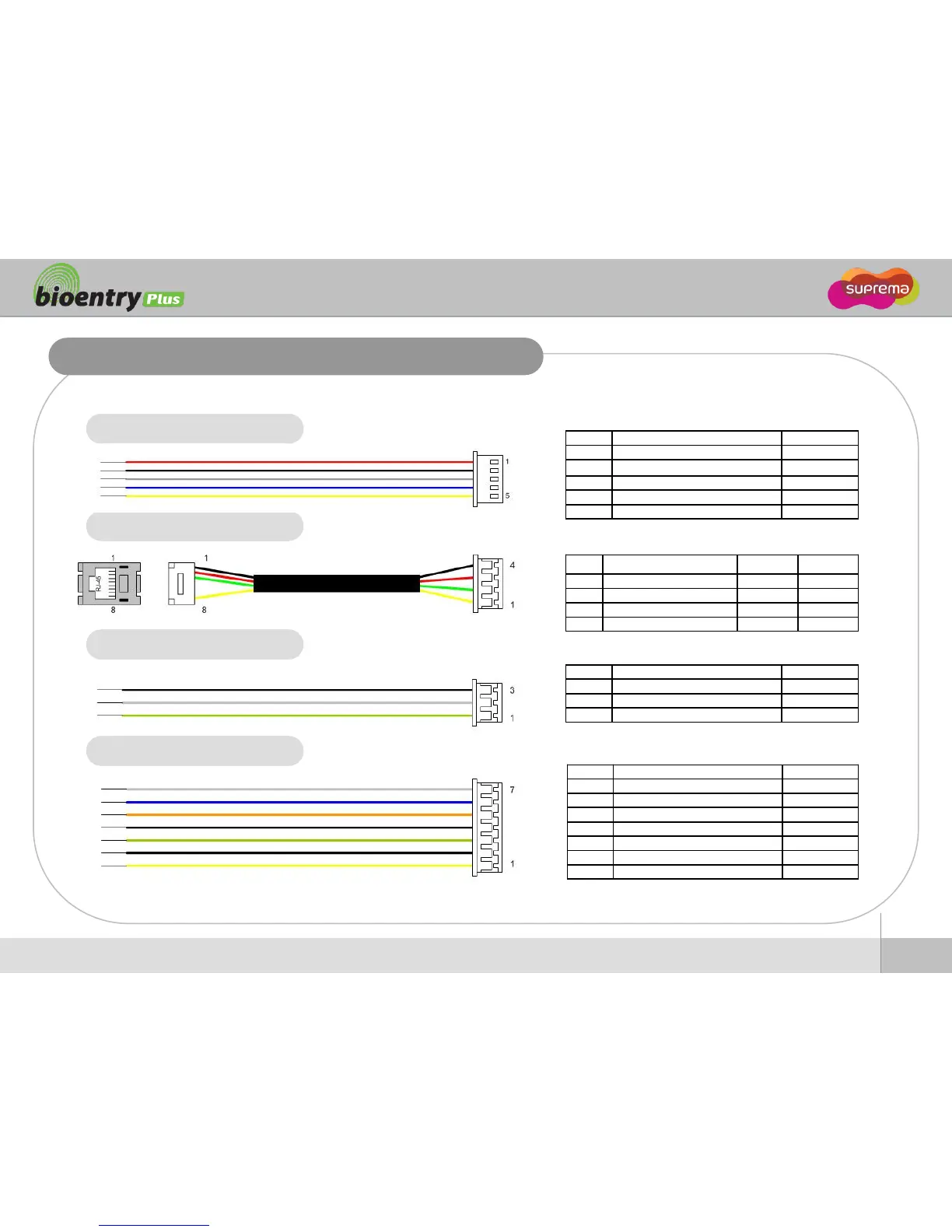

Cables and Connectors
Power and RS485
TCP/IP
Wiegand In/output (Switchable)
Digital Inputs and Relay output
PIN PIN DESCRIPTION WIRE
1 WIEGAND DATA0 GREEN
2 WIEGAND DATA1 WHITE
3 WIEGAND GND BLACK
PIN PIN DESCRIPTION WIRE
1 POWER +12V RED
2 POWER GND BLACK
3 RS -485 GND GRAY
4 RS -485 TRX+ BLUE
5 RS -485 TRX- YELLOW
PIN PIN DESCRIPTION WIRE
1 SW1 INPUT YELLOW
2 SW1 GND BLACK
3 SW2 INPUT GREEN
4 SW2 GND BLACK
5 RELAY NORMAL CLOSE ORANGE
6 RELAY COMMON BLUE
7 RELAY NORMAL OPEN WHITE
PIN PIN DESCRIPTION WIRE RJ45 PIN
1 TX + YELLOW 6
2 TX - GREEN 3
3 RX + RED 2
4 RX - BLACK 1
