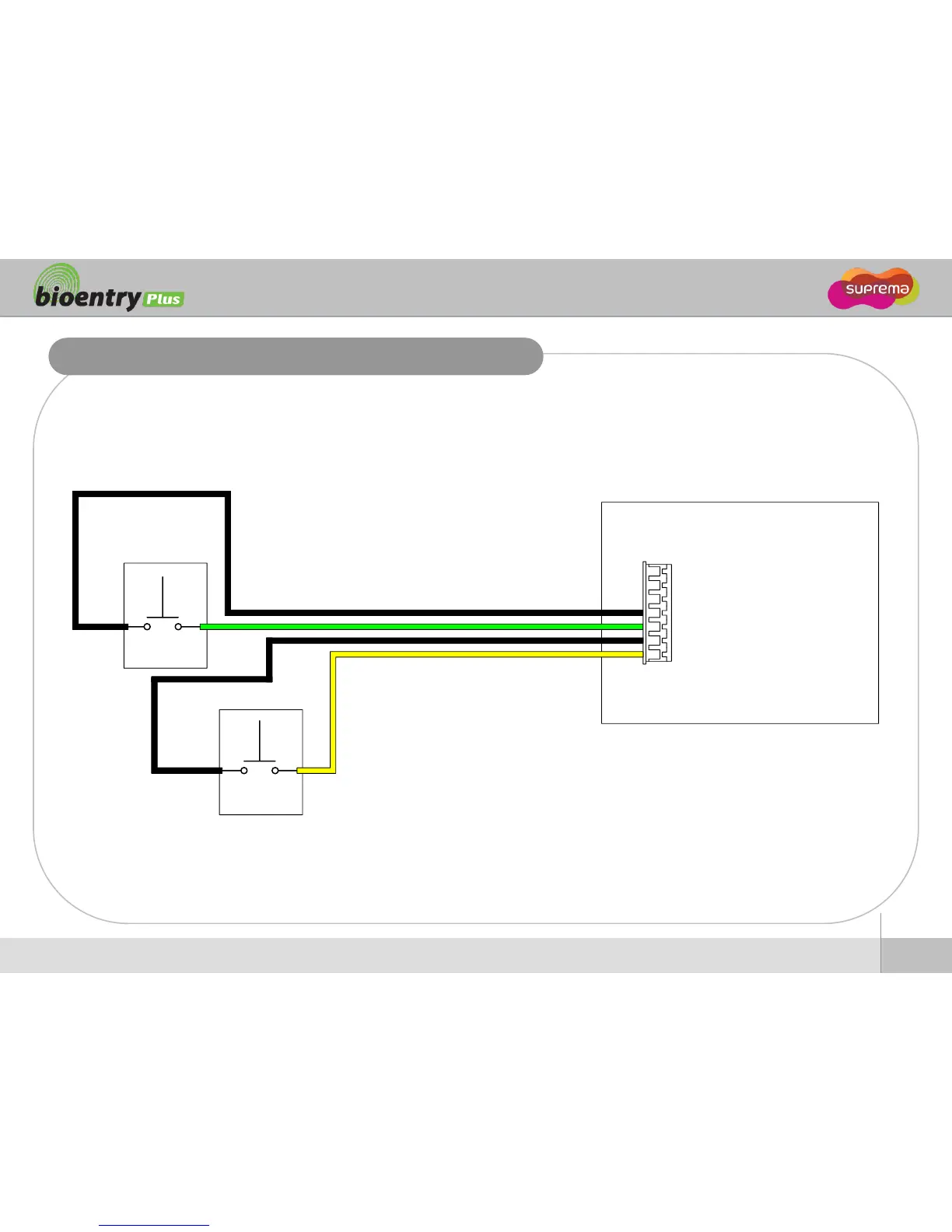

Digital Input Connection (Alarm, Emergency sw)
Switch #1
BioEntry Plus
(1) SW0 Input (Yellow)
(2) SW0 GND (Black)
(3) SW1 Input (Green)
(4) SW1 GND (Black)
Switch #0
