Option B: Outside Yagi Antenna
Before installing a Yagi, or directional antenna, note that the antenna
should be mounted on a pole or pipe (not provided), at the highest possible
location and mounted horizontally, aimed in the direction of your nearest
cell tower. To nd the location of your carrier’s closest cell tower, go to
www.antennasearch.com.
Ensure that the mounting area has at least a 12-inch radius clear of
obstructions and other radiating elements and orient the antenna with the
drip hole at the bottom.
Once you have identied your install location, assemble the u-bolt, bracket,
nuts and washers onto a pole or pipe (not provided) as shown in the
illustration. Keep the connections loose enough to allow the antenna to
rotate until the optimum direction is found.
Once the outside antenna is secured to a pipe or pole, connect antenna
to one end of the provided RG6 cable and tighten the connection. Run the
cable along route to planned location of your booster.
Installation
Outside Antenna Assembly
Nut
Washer
U-bolt
Bracket
Drip Hole
RG6 Cable
Cable
Planned
Booster
Location
Outside
Antenna
min
i
mum
2
5 f
t.
sep
a
rat
i
o
n

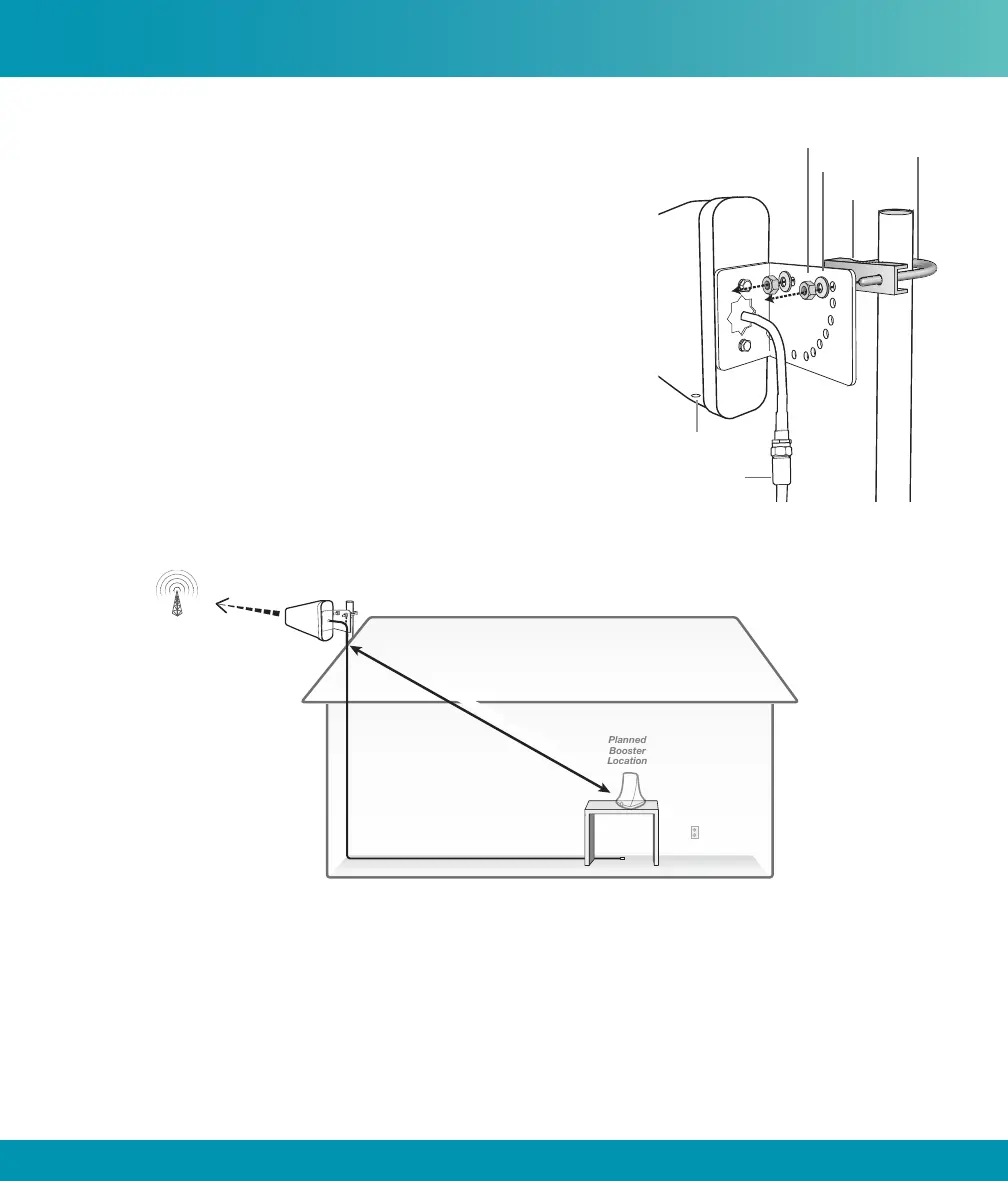

Omni Yagi Antenna Install Illustration
