50
Or in the lower display according the selection and
mode:
dive time of most recent dive in minutes
labeled with DIVE TIME.
the current time labeled with TIME
oxygen partial pressure labeled with PO
2
(if
set to EAN mode)
maximum depth labeled with MAX
the current temperature with °C for Centigrade
[or °F for Fahrenheit]
oxygen percentage setting labeled with O
2
%
(if set to EAN mode)
If set to EAN mode, the current oxygen toxicity exposure
is shown with an Oxygen Limit Fraction (OLF) bar
graph along the right side of the display.

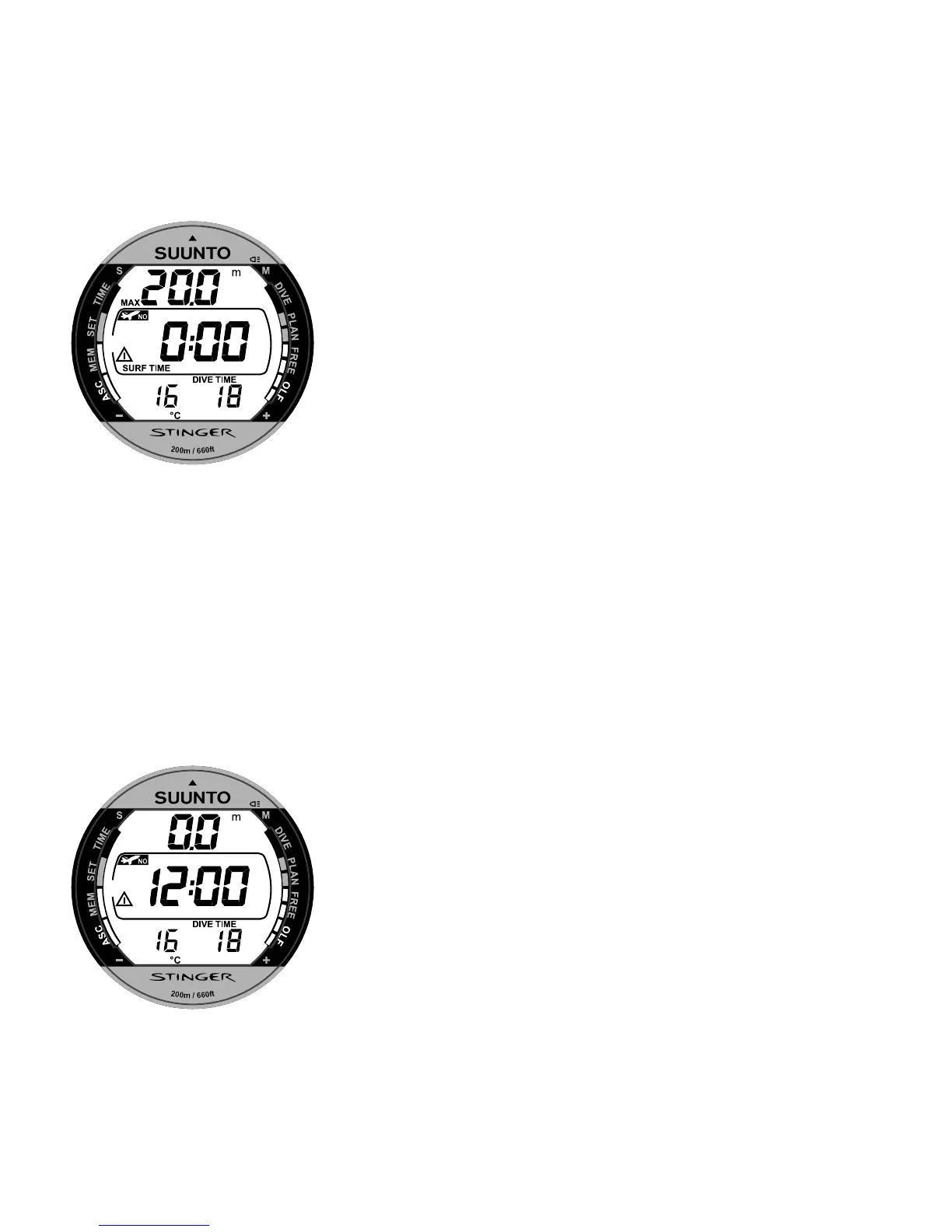

Fig. 3.24. Surface display. You
have surfaced from a 18 minute
dive, which maximum depth was
20.0 m [66 ft]. The present depth
is 0.0 m [0 ft] and surface interval
time is 0. Airplane symbol
indicates that you should not fly
and diver attention symbol
indicates that you should prolong
your surface interval time
because of excess micro-bubbles.
Fig. 3.25. Surface display.
Alternating display showing the
no-flying time.
