ENGINE CONTROL SYSTEM 3-61

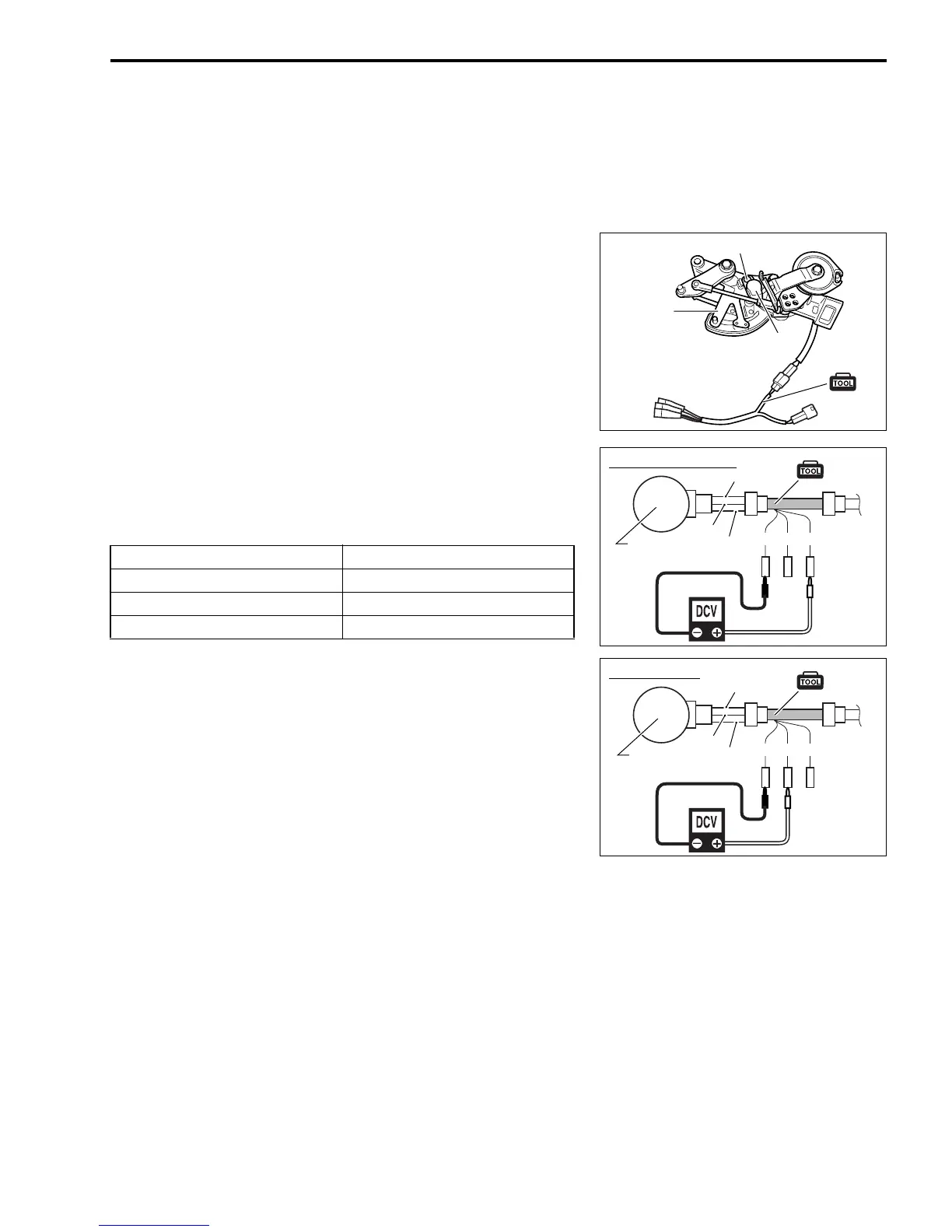

SHIFT POSITION SENSOR
" 09930-99320: Digital tester
09930-89220: 3-pin test cord
$ Tester range: %(DCV (See chart for range.)
1. Turn ignition switch OFF.
2. Connect 3-pin test cord between shift position sensor and
wire harness as shown in figure.
3. Turn the ignition switch ON.
4. Connect tester probe as shown in the illustration and check
for sensor power source voltage.
Sensor power source voltage: Approx. 5 V
5. Connect tester probe as shown in the illustration.
Check for sensor output voltage while operating remo-con
handle.
Sensor output voltage:
If out of specification:
• 1st Check sensor position adjustment, readjust if necessary.
• 2nd Replace shift position sensor.
NOTE:
After installing shift position sensor, check for proper correct
function by operating remo-con handle.
2
1
3
1. Shift position sensor
2. Adjust screw
3. Clutch lever
Shift position Output voltage
Forward Approx. 4.1 V
Neutral Approx. 2.3 V
Reverse Approx. 0.8 V
Power source voltage
Bl
Y
B
W R B/W
Shift position
sensor
Out put voltage
W R B/W
Bl
Y
B
Shift position
sensor
