ENGINE CONTROL SYSTEM 3-69

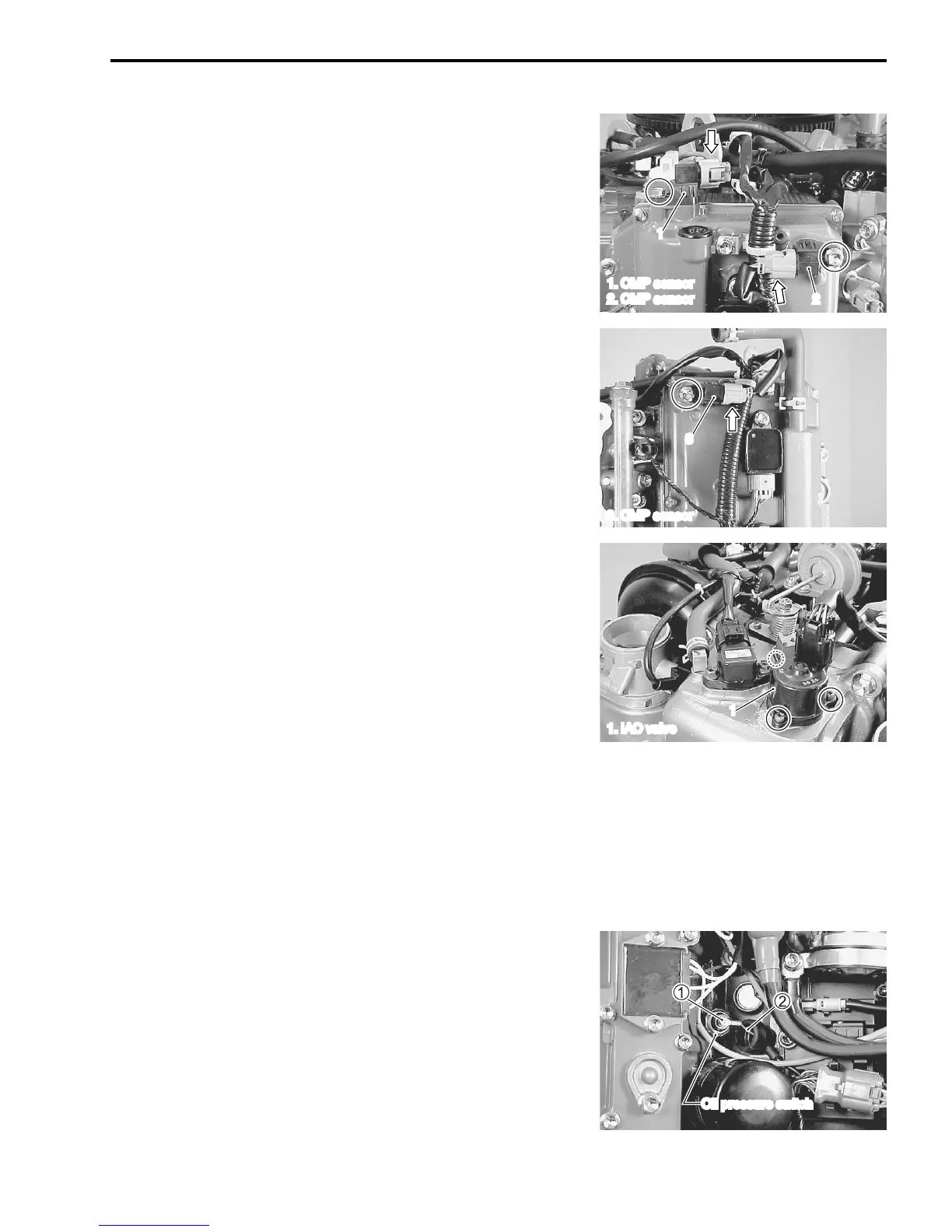

CMP SENSOR
REMOVAL
1. Remove collector assembly. (See page 6-3, 6-6.)
2. Disconnect CMP sensor lead wire connector at sensor.
3. Remove bolt and CMP sensor.
INSTALLATION
Installation is reverse order of removal.
• Install CMP sensor, then tighten sensor mounting screw
securely.
• Connect sensor lead wire connector to CMP sensor.
• Check to ensure that all removed parts are back in original
position.
IAC VALVE
REMOVAL
1. Remove the ring gear cover and air intake silencer case.
(See page 6-2.)
2. Disconnect IAC valve lead wire connector at IAC valve.
3. Remove screws and IAC valve.
INSTALLATION
Installation is reverse order of removal.
• Install IAC valve, then tighten mounting screw securely.
• Connect IAC valve lead wire connector to IAC valve.
• Check to ensure that all removed parts are back in original
position.
OIL PRESSURE SWITCH
REMOVAL
1. Loosen screw

1 and disconnect blue lead wire

2 from
switch.
2. Remove oil pressure switch from cylinder block.
1
2
1. CMP sensor
2. CMP sensor
3. CMP sensor
3
1
1. IAC valve
Oil pressure switch
