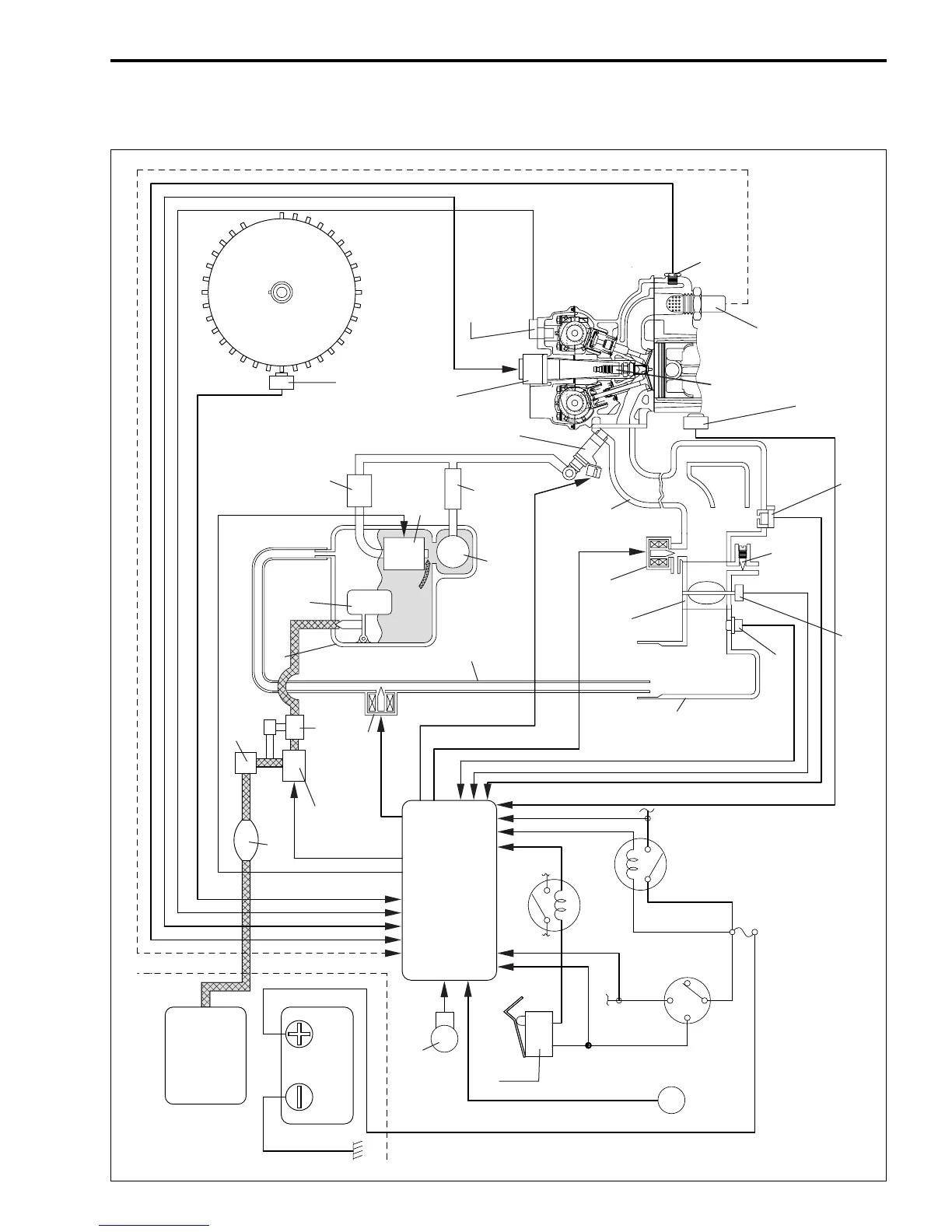

ENGINE CONTROL SYSTEM 3-3
SYSTEM STRUCTURE 2
[DF200]
Emergency stop switch
* : O
2 Sensor must be installed when performing
“O
2 feedback operation” only.
Low pressure fuel pump
Filter
Low pressure fuel filter
Fuel tank
Battery
Shift position sensor
Neutral switch
E.C.M.
CKP sensor
High pressure fuel pump
High pressure fuel filter
Float
Fuel pressure regulator
Fuel cooler
Purge control valve
Main relay
Ignition switch
OFF
IG
ST
Fuse
Ex. manifold temp. sensor
*O2 sensor
Silencer
Throttle body
IAC valve
By-pass air screw
Ignition coil
CMP sensor
Fuel injector
Spark plug
Cylinder temp. sensor
MAP sensor
Throttle position sensor
IAT sensor
Evaporation hose
Starter relay
Flywheel magneto
Intake manifold
Squeeze pump
Fuel vapor separator
