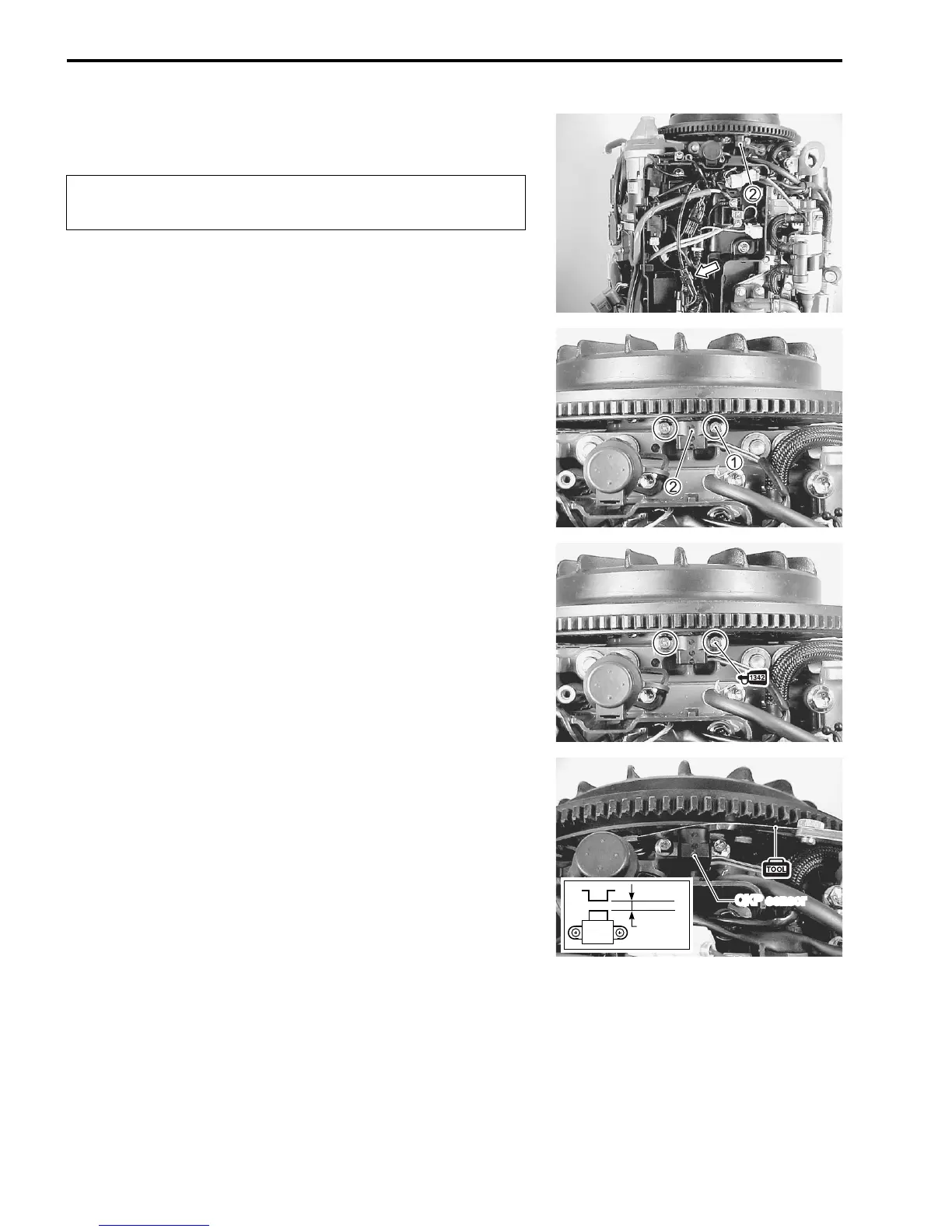

3-68 ENGINE CONTROL SYSTEM
CKP SENSOR
REMOVAL
1. Remove ring gear cover and air intake silencer case. (See
page 6-2.)
2. Disconnect CKP sensor lead wire connector in electric parts
holder.
3. Remove two (2) screws
1 and CKP sensor
2.
INSTALLATION
Installation is reverse order of removal with special attention to
the following steps.
• Apply THREAD LOCK “1342” to the sensor mounting screws.
, 99000-32050: THREAD LOCK “1342”
• Install CKP sensor with air gap of 0.75 mm between sensor
and reluctor bar on flywheel, then tighten sensor mounting
screws securely.
Air gap: 0.75 mm (0.030 in)
Prior to removing CKP sensor:
• Disconnect battery cables from battery.
0.75 mm
CKP sensor
