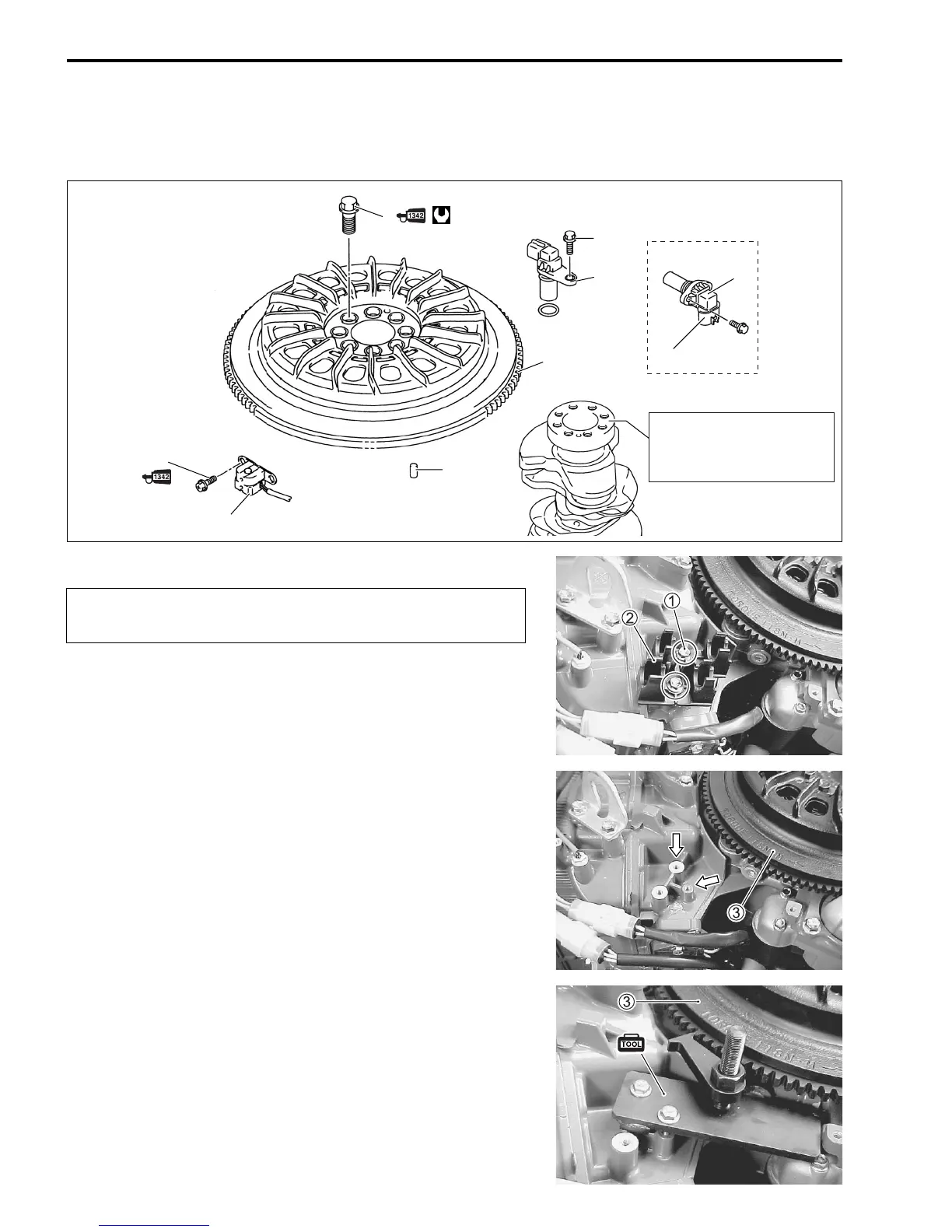

3-66 ENGINE CONTROL SYSTEM
REMOVAL/INSTALLATION
FLYWHEEL
REMOVAL
1. Remove ring gear cover and air intake silencer case.
(See page 6-2.)
2. Remove screws
1 and battery charge coil connector holder
2 from cylinder.
3. To lock the flywheel
3, use special tool shown in figure.
Use screws and threaded holes on top of cylinder to attach
special tool.
" 09916-99310: Flywheel holder
Prior to removing flywheel:
• Disconnect battery cables from battery.
5
4
3
2
7
7
6
6
1 118 N·m (11.8 kg-m, 85.3 lb-ft)
1. Flywheel bolt
2. Flywheel
3. Dowel pin
4. CKP sensor
5. Bolt
6. CMP sensor
7. Bolt
NOTE:
Clean flywheel and crankshaft
mating surfaces with cleaning
solvent.
