1D-6 Engine Mechanical:
Engine Left Side

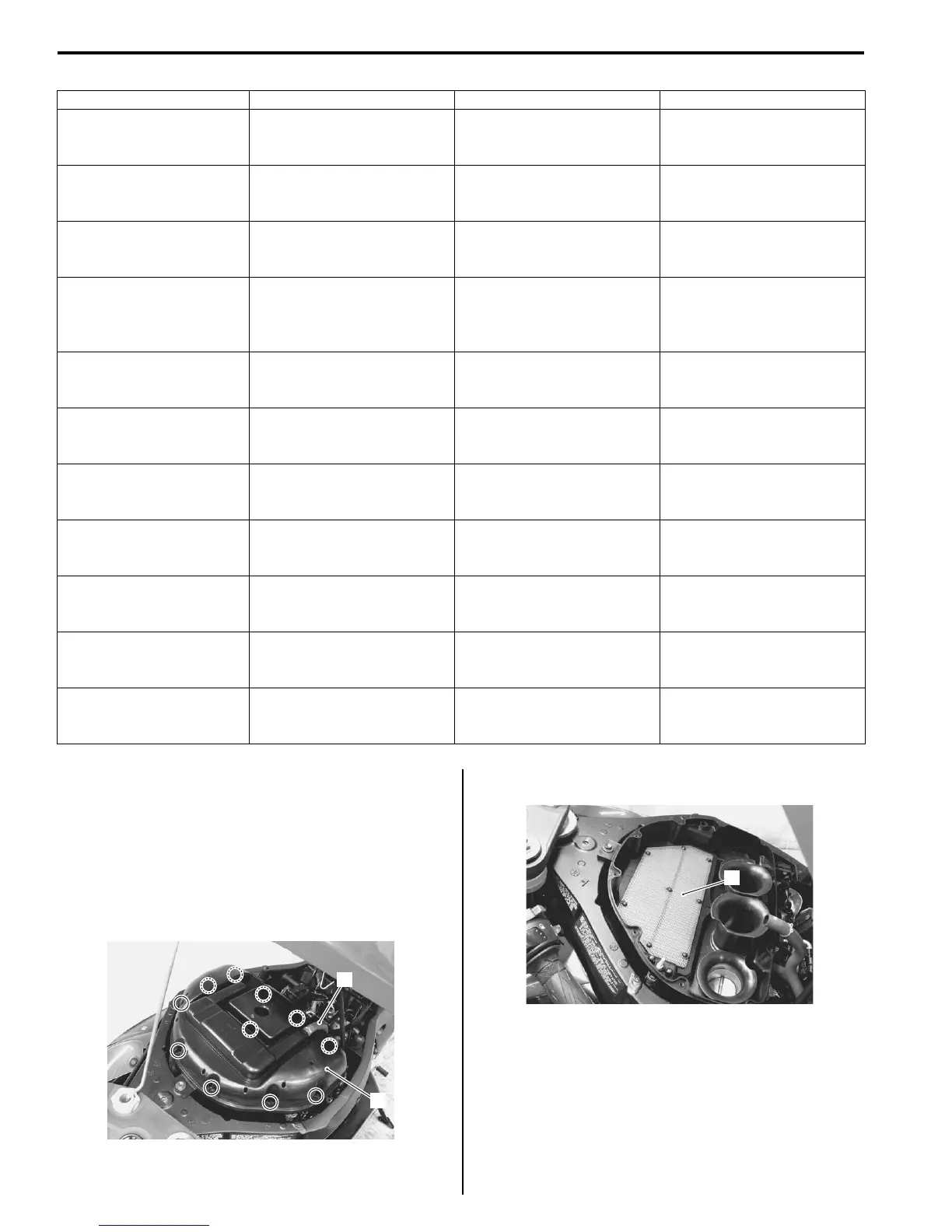

Air Cleaner Element Removal and Installation
B838H21406002
Removal
1) Lift and support the fuel tank. Refer to “Fuel Tank
Removal and Installation in Section 1G (Page 1G-
9)”.
2) Disconnect the PCV hose (1).
3) Remove the air cleaner box cover (2).
4) Remove the air cleaner element (3).
Installation
Install the air cleaner element in the reverse order of
removal.
Item Removal Inspection Installation
Speed sensor
Refer to “Speed Sensor
Removal and Installation in
Section 9C (Page 9C-5)”.
Refer to “Speed Sensor
Inspection in Section 9C
(Page 9C-6)”.
Refer to “Speed Sensor
Removal and Installation in
Section 9C (Page 9C-5)”.
Engine sprocket
Refer to “Engine Sprocket
Removal and Installation in
Section 3A (Page 3A-2)”.
Refer to “Drive Chain
Related Parts Inspection in
Section 3A (Page 3A-4)”.
Refer to “Engine Sprocket
Removal and Installation in
Section 3A (Page 3A-2)”.
Driven chain
Refer to “Drive Chain
Replacement in Section 3A
(Page 3A-7)”.
Refer to “Drive Chain
Inspection and Adjustment in
Section 0B (Page 0B-15)”.
Refer to “Drive Chain
Replacement in Section 3A
(Page 3A-7)”.
Gear position switch
Refer to “Gear Position (GP)
Switch Removal and
Installation in Section 5B
(Page 5B-13)”.
Refer to “Gear Position (GP)
Switch Inspection in Section
5B (Page 5B-13)”.
Refer to “Gear Position (GP)
Switch Removal and
Installation in Section 5B
(Page 5B-13)”.
Starter idle gear cover
Refer to “Starter Clutch
Removal and Installation in
Section 1I (Page 1I-10)”.
—
Refer to “Starter Clutch
Removal and Installation in
Section 1I (Page 1I-10)”.
Starter idle gear
Refer to “Starter Clutch
Removal and Installation in
Section 1I (Page 1I-10)”.
—
Refer to “Starter Clutch
Removal and Installation in
Section 1I (Page 1I-10)”.
Generator cover
Refer to “Generator Removal
and Installation in Section 1J
(Page 1J-4)”.
—
Refer to “Generator Removal
and Installation in Section 1J
(Page 1J-4)”.
Generator rotor
Refer to “Generator Removal
and Installation in Section 1J
(Page 1J-4)”.
—
Refer to “Generator Removal
and Installation in Section 1J
(Page 1J-4)”.
Starter clutch
Refer to “Starter Clutch
Removal and Installation in
Section 1I (Page 1I-10)”.
Refer to “Starter Clutch
Inspection in Section 1I
(Page 1I-12)”.
Refer to “Starter Clutch
Removal and Installation in
Section 1I (Page 1I-10)”.
Water pump
Refer to “Water Pump
Removal and Installation in
Section 1F (Page 1F-12)”.
Refer to “Water Pump
Related Parts Inspection in
Section 1F (Page 1F-16)”.
Refer to “Water Pump
Removal and Installation in
Section 1F (Page 1F-12)”.
Oil pressure switch
Refer to “Oil Pressure Switch
Removal and Installation in
Section 1E (Page 1E-9)”.
Refer to “Oil Pressure
Indicator Inspection in
Section 9C (Page 9C-6)”.
Refer to “Oil Pressure Switch
Removal and Installation in
Section 1E (Page 1E-9)”.
1
2
I838H1140002-01
3
I838H1140003-02
To Next Page
