4A-18 Brake Control System and Diagnosis:
Rear Brake Master Cylinder Parts Inspection
B838H24106018
Refer to “Rear Brake Master Cylinder Disassembly and
Assembly (Page 4A-16)”.
Master Cylinder
Inspect the master cylinder bore for any scratches or
other damage.
Piston / Rubber Parts
Inspect the piston surface for any scratches or other
damage.
Inspect the primary cup, secondary cup and dust boot
for wear or damage.

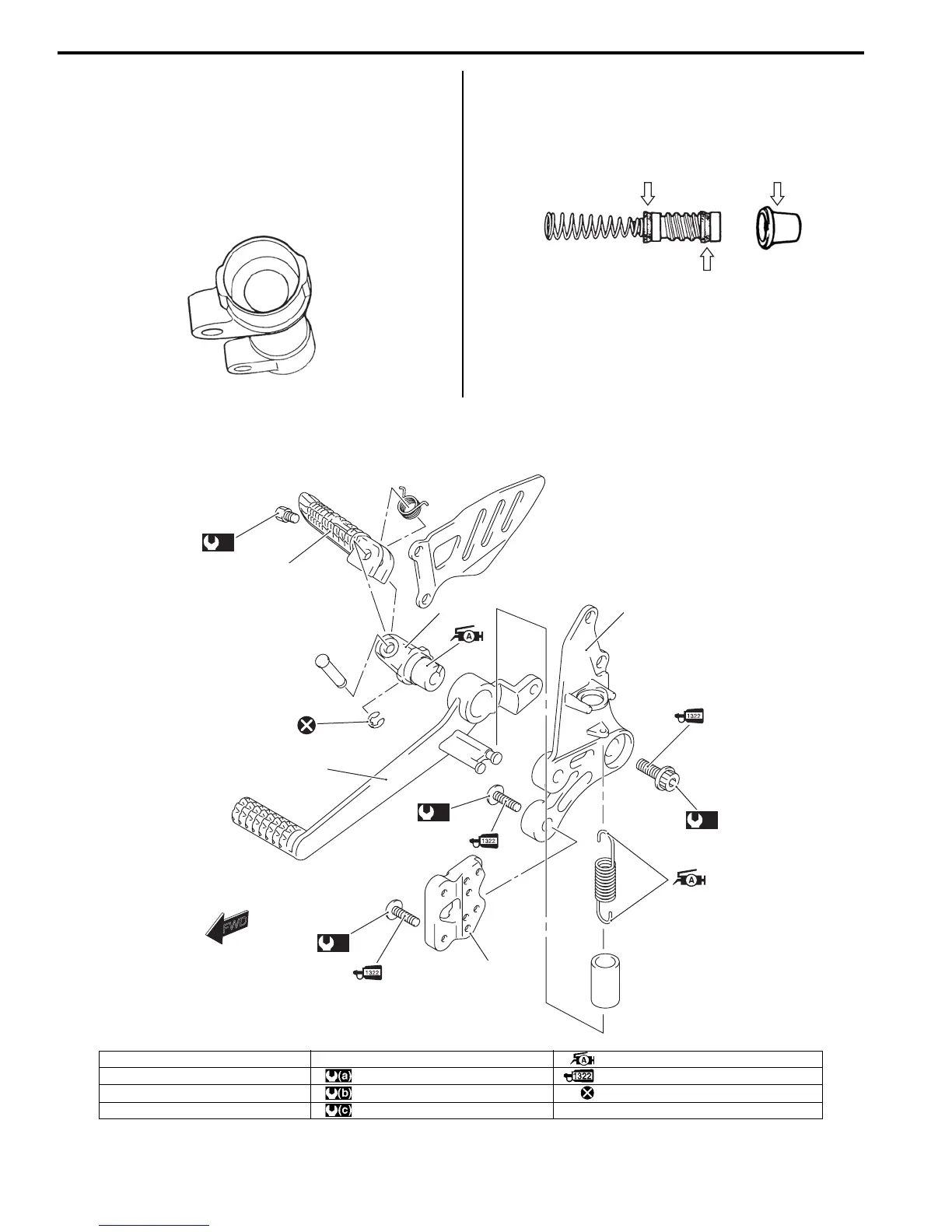

Rear Brake Pedal Construction
B838H24106019
I649G1410038-02
I837H1410050-01
FWD
(c)
(a)
(b)
(b)
1
2
3
5
4
I837H1410058-01
1. Footrest bracket No. 2 5. Footrest : Apply grease.
2. Footrest bracket No. 1 : 35 N⋅m (3.5 kgf-m, 25.5 lb-ft) : Apply thread lock to the thread part.
3. Rear brake pedal : 23 N⋅m (2.3 kgf-m, 16.5 lb-ft) : Do not reuse.
4. Footrest holder : 18 N⋅m (1.8 kgf-m, 13.0 lb-ft)

Suzuki GSX-R750 Specifications

General

Engine Type	4-stroke, 4-cylinder, liquid-cooled, DOHC
Displacement	750cc
Compression Ratio	12.5:1
Fuel System	Fuel injection
Front Suspension	Inverted telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Overall Width	710 mm (28.0 in)
Ground Clearance	130 mm (5.1 in)
Seat Height	810 mm (31.9 in)
Curb Weight	190 kg (419 lbs)
Ignition	Electronic ignition (transistorized)
Starter	Electric
Final Drive	Chain
Bore x Stroke	70.0 mm x 48.7 mm
Transmission	6-speed, constant mesh
Rear Brakes	Disc
Front Tires	120/70ZR17M/C (58W)
Rear Tires	180/55ZR17M/C (73W)
Fuel Tank Capacity	17.0 L (4.5 US gallons)
Overall Length	2, 030 mm (79.9 in)
Wheelbase	1390 mm (54.7 in)
Front Brakes	Dual hydraulic disc
