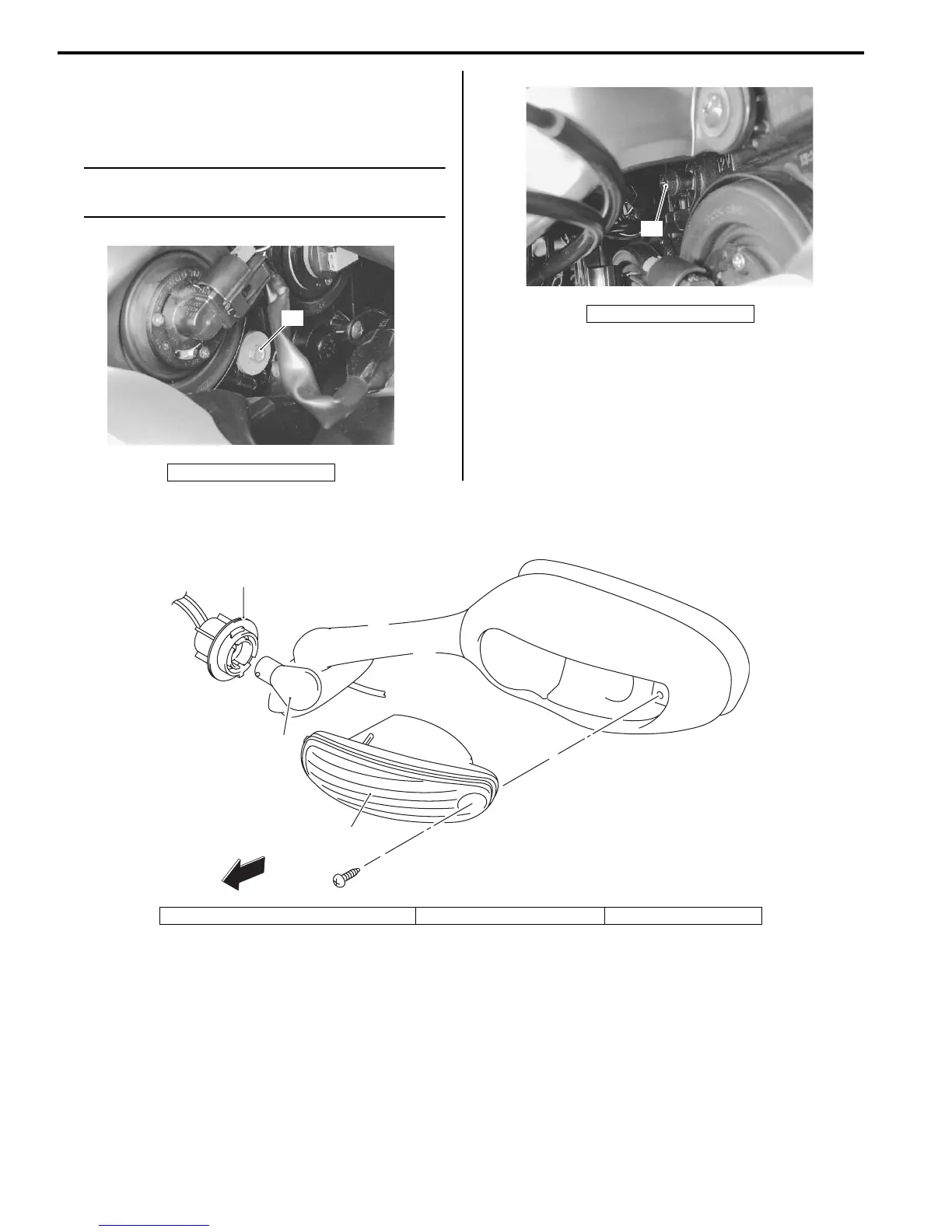

9B-4 Lighting Systems:
Headlight Beam Adjustment
B838H29206004
Adjust the headlight beam, both horizontally and
vertically.
NOTE
To adjust the headlight beam, adjust the
beam horizontally first, then vertically.
Front Turn Signal Light Components
B838H29206005
“A”: Vertical adjuster
“A”
I837H1920014-02
“B”: Horizontal adjuster
“B”
I837H1920015-01
FWD
FWD
1
2
3
I837H1920016-02
1. Turn signal light bulb (12 V 21 W) 2. Front turn signal light 3. Socket

Table of Contents

Questions and Answers:

Suzuki GSX-R750 Specifications

General IconGeneral
Engine Type4-stroke, 4-cylinder, liquid-cooled, DOHC
Displacement750cc
Compression Ratio12.5:1
Fuel SystemFuel injection
Front SuspensionInverted telescopic, coil spring, oil damped
Rear SuspensionLink type, coil spring, oil damped
Overall Width710 mm (28.0 in)
Ground Clearance130 mm (5.1 in)
Seat Height810 mm (31.9 in)
Curb Weight190 kg (419 lbs)
IgnitionElectronic ignition (transistorized)
StarterElectric
Final DriveChain
Bore x Stroke70.0 mm x 48.7 mm
Transmission6-speed, constant mesh
Rear BrakesDisc
Front Tires120/70ZR17M/C (58W)
Rear Tires180/55ZR17M/C (73W)
Fuel Tank Capacity17.0 L (4.5 US gallons)
Overall Length2, 030 mm (79.9 in)
Wheelbase1390 mm (54.7 in)
Front BrakesDual hydraulic disc
