Suzuki GSX-R750 User Manual

6B-5 Steering / Handlebar:

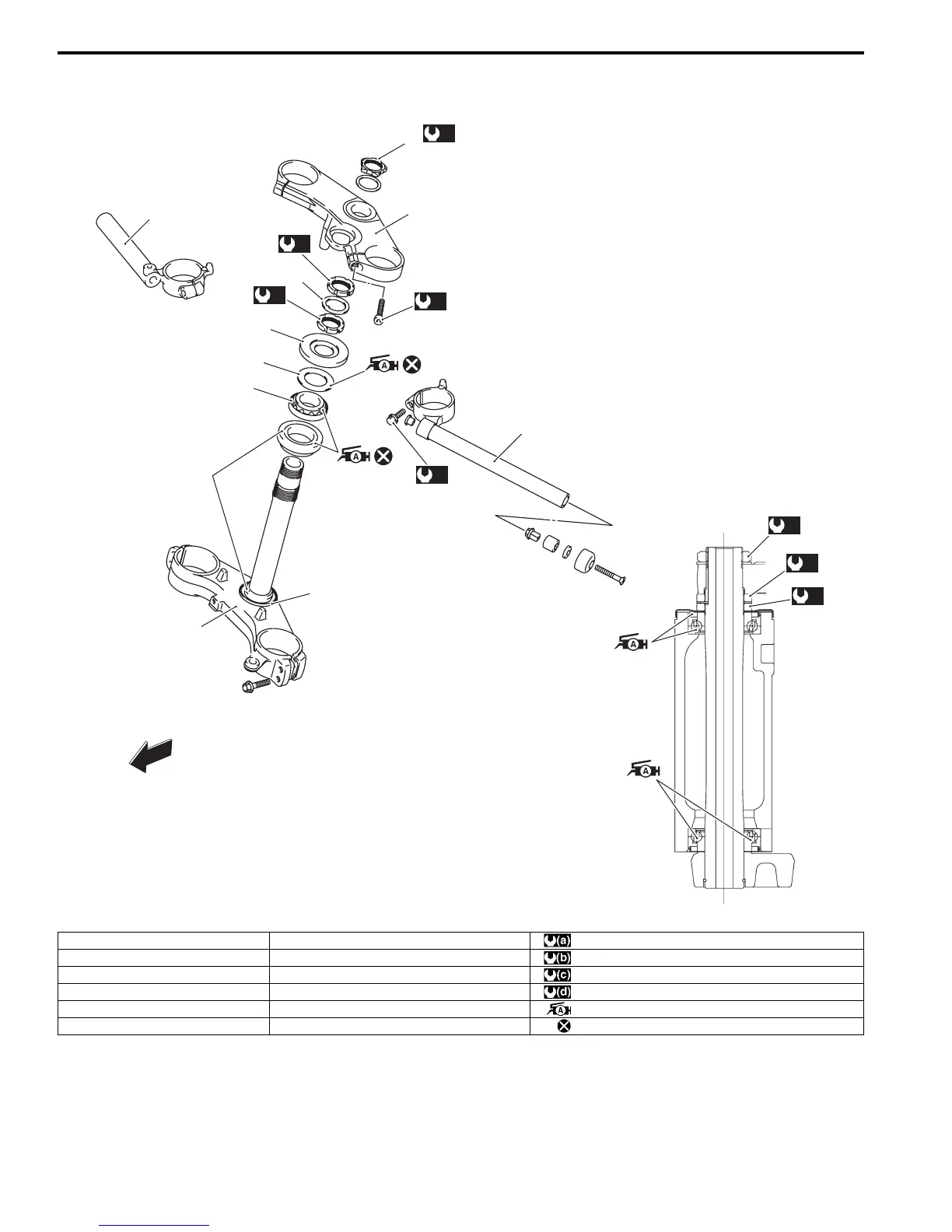

Steering Components
B838H26206004
2
3
3
5
7
8
9
12
11
10
(a)
1
(b)
4
(c)
6
(d)
(d)
(a)
(b)
(c)
FWD
FWD
I837H1620039-02
1. Steering stem head nut 7. Dust seal cover : 90 N⋅m (9.0 kgf-m, 65.0 lb-ft)
2. Steering stem upper bracket 8. Dust seal : 90 N⋅m (9.0 kgf-m, 65.0 lb-ft)
3. Handlebars 9. Steering stem upper bearing : 45 N⋅m (4.5 kgf-m, 32.5 lb-ft) then turn back 1/2 – 1/4
4. Steering stem lock-nut 10. Steering stem lower bearing : 23 N⋅m (2.3 kgf-m, 16.5 lb-ft)
5. Washer 11. Lower seal : Apply grease.
6. Steering stem nut 12. Steering stem lower bracket : Do not reuse.

Suzuki GSX-R750 Specifications

General

Engine Type	4-stroke, 4-cylinder, liquid-cooled, DOHC
Displacement	750cc
Compression Ratio	12.5:1
Fuel System	Fuel injection
Front Suspension	Inverted telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Overall Width	710 mm (28.0 in)
Ground Clearance	130 mm (5.1 in)
Seat Height	810 mm (31.9 in)
Curb Weight	190 kg (419 lbs)
Ignition	Electronic ignition (transistorized)
Starter	Electric
Final Drive	Chain
Bore x Stroke	70.0 mm x 48.7 mm
Transmission	6-speed, constant mesh
Rear Brakes	Disc
Front Tires	120/70ZR17M/C (58W)
Rear Tires	180/55ZR17M/C (73W)
Fuel Tank Capacity	17.0 L (4.5 US gallons)
Overall Length	2, 030 mm (79.9 in)
Wheelbase	1390 mm (54.7 in)
Front Brakes	Dual hydraulic disc
