Exhaust System: 1K-6

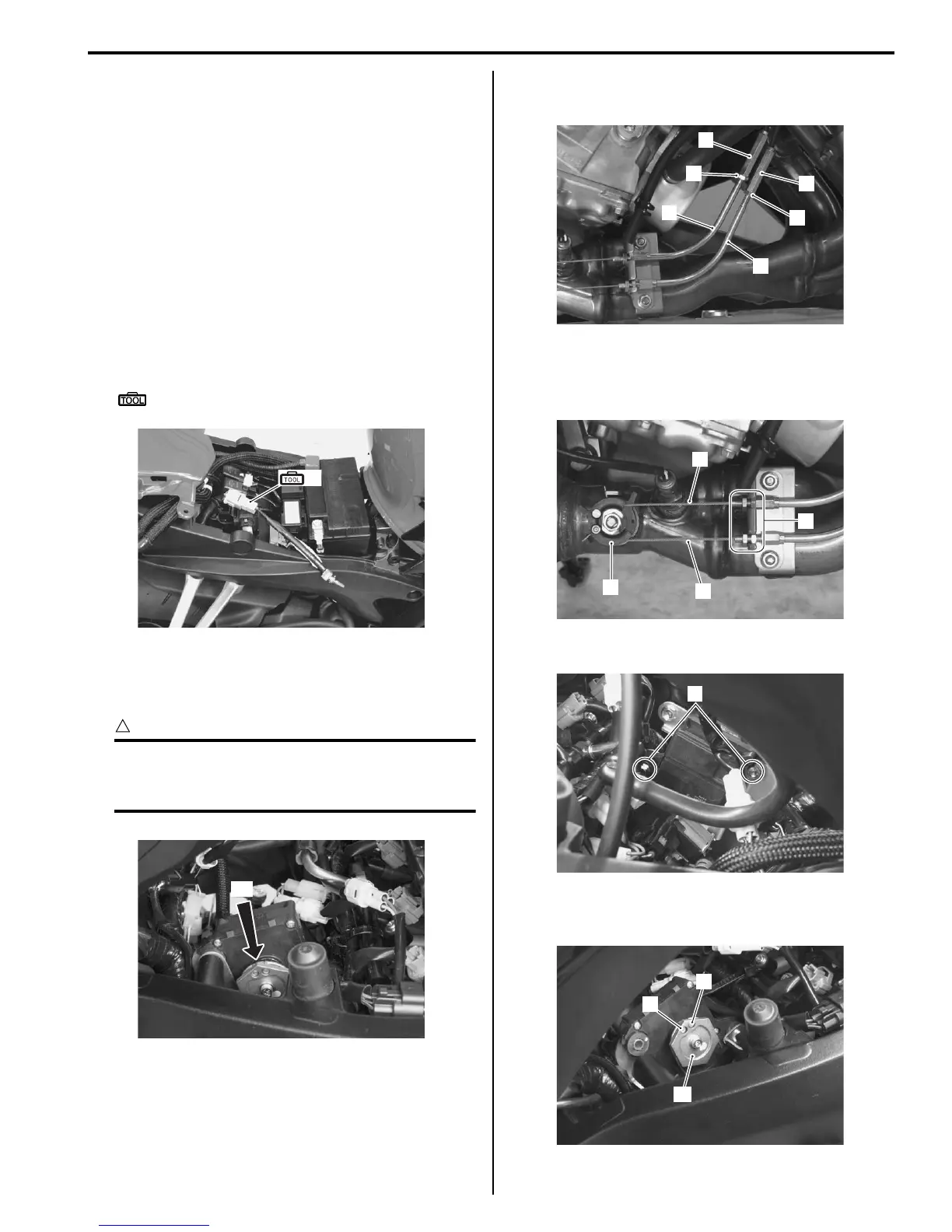

EXCV Cable Removal and Installation

B838H21B06003

Removal

1) Turn the ignition switch OFF.

2) Lift and support the fuel tank. Refer to “Fuel Tank

Removal and Installation in Section 1G (Page 1G-

9)”.

3) Remove the right under cowling assembly. Refer to

“Exterior Parts Removal and Installation in Section

9D (Page 9D-11)”.

4) Connect the special tool (Mode select switch) to the

dealer mode coupler. Refer to “Self-Diagnostic

Procedures in Section 1A (Page 1A-13)”.

5) After turning the mode select switch ON, turn the

ignition switch ON.

Special tool

(A): 09930–82720 (Mode select switch)

6) Check that the cable slots of the EXCVA pulley

comes to the middle (Adjustment position) “A”.

7) Turn the ignition switch OFF.

CAUTION

Before removing the EXCV cables, be sure to

set the EXCVA pulley to the adjustment

position.

8) Loosen the lock-nut (2) on the No. 2 cable (3) and

turn in the cable adjuster (1) fully.

9) Loosen the lock-nut (5) on the No. 1 cable (6) and

turn in the cable adjuster (4) fully.

10) Loosen the lock-nuts (7).

11) Disconnect the No. 2 cable (3) and then No. 1 cable

(6) from the EXCV pulley (8).

12) Remove the EXCVA mounting bolts (9).

13) Disconnect the No. 2 cable (3) and then No. 1 cable

(6) from the EXCVA pulley (10).

(A)

I837H11B0018-01

“A”

I837H11B0019-01

I837H11B0020-01

I837H11B0021-02

I837H11B0022-02

I837H11B0039-01
