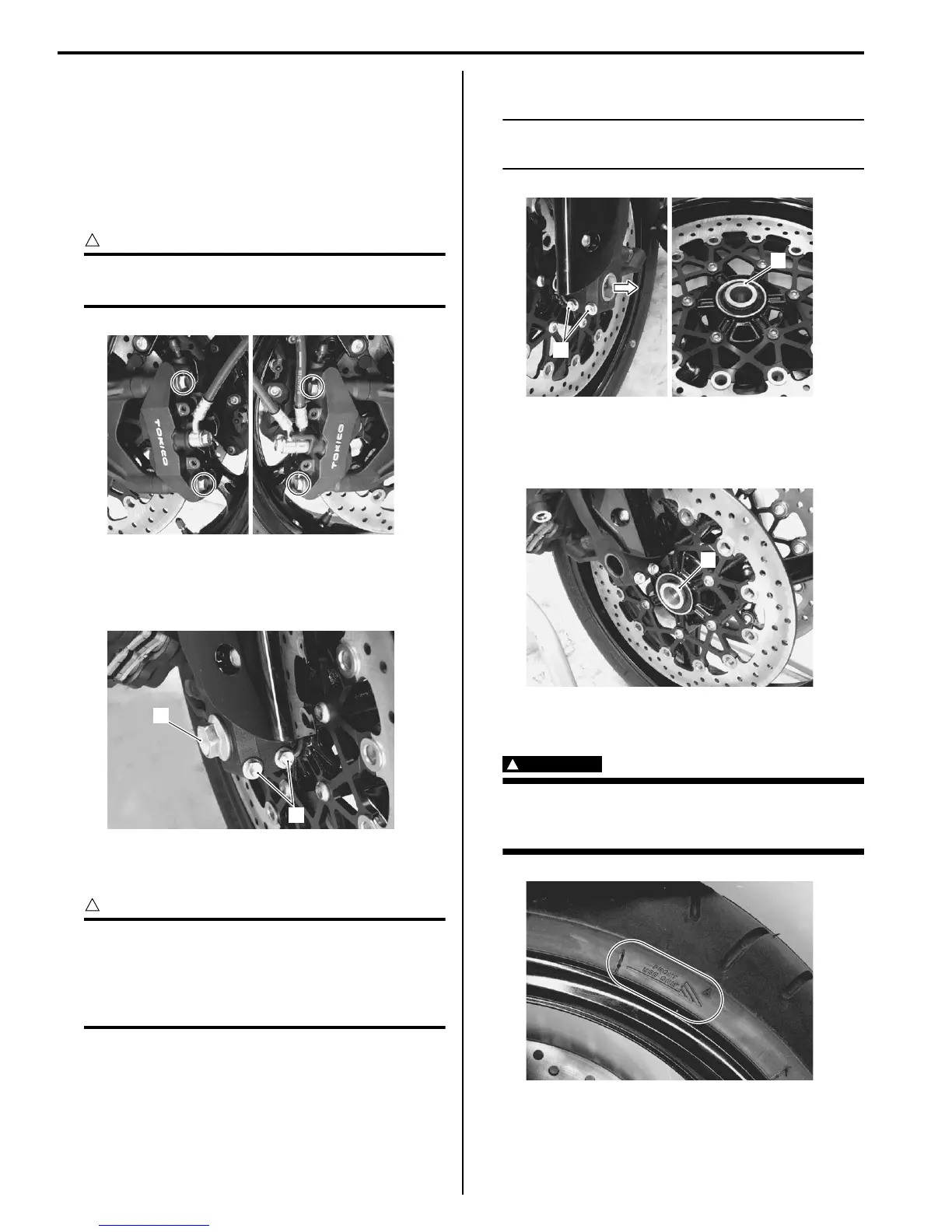

2D-4 Wheels and Tires:

Front Wheel Assembly Removal and Installation

B838H22406003

Removal

1) Remove the under cowlings. Refer to “Exterior Parts

Removal and Installation in Section 9D (Page 9D-

11)”.

2) Remove the brake calipers, left and right.

CAUTION

Do not operate the brake lever with the

caliper removed.

3) Loosen two axle pinch bolts (1) on the right front fork

leg.

4) Remove the front axle bolt (2).

5) Raise the front wheel off the ground and support the

motorcycle with a jack or a wooden block.

CAUTION

Do not carry out the work with the

motorcycle resting on the side-stand. Do not

support the motorcycle with the exhaust

pipes. Make sure that the motorcycle is

supported securely.

6) Loosen two axle pinch bolts (3) on the left front fork

leg.

7) Draw out the front axle and remove the front wheel.

8) Remove the collar (4) (RH only).

NOTE

After removing the front wheel, fit the

calipers temporarily to the original positions.

Installation

1) Install the collar (1) to the right side of the wheel.

2) Install the front wheel with the front axle and tighten

the front axle bolt temporarily.

WARNING

The directional arrow on the tire should point

to the wheel rotation, when remounting the

wheel.

I837H1240001-01

I837H1240002-01

I837H1240003-01

I837H1240004-01

I837H1240005-01
