Drive Chain / Drive Train / Drive Shaft: 3A-7

6) Install the spacer.

7) Install the rear wheel assembly. Refer to “Rear

Wheel Assembly Removal and Installation in Section

2D (Page 2D-11)”.

Drive Chain Replacement

B838H23106006

Use the special tool in the following procedures, to cut

and rejoin the drive chain.

NOTE

When using the special tool, apply a small

quantity of grease to the threaded parts of

the special tool.

Special tool

: 09922–22711 (Drive chain cutting and joining

tool)

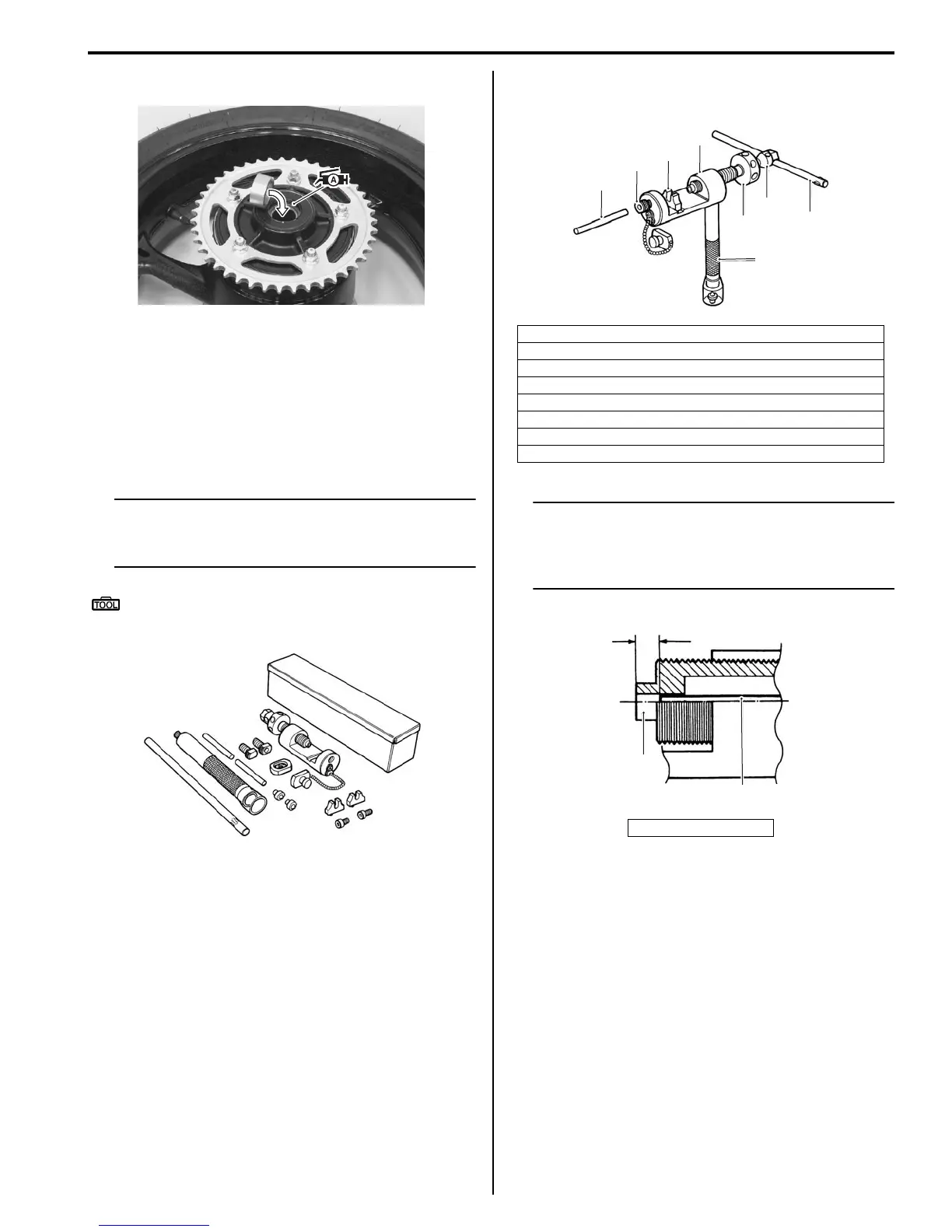

Drive Chain Cutting

1) Set up the special tool as shown in the figure.

NOTE

The tip of pin remover (7) should be

positioned inside “a” approximately 5 mm

(0.2 in) from the end face of pressure bolt [A]

(3) as shown in the figure.

2) Place the drive chain link being disjointed on the

chain holder (8) of the tool.

3) Turn in both the adjuster bolt (6) and pressure bolt

[A] (3) so that each of their end hole fits over the

chain joint pin properly.

I837H1310024-01

I649G1310023-02

1. Tool body

2. Grip handle

3. Pressure bolt [A]

4. Pressure bolt [B]

5. Bar

6. Adjuster bolt (With through hole)

7. Pin remover

8. Chain holder (Engraved mark 500) with reamer bolt M5 x 10

“a”: 5 mm (0.2 in)

I649G1310024-02

“a”

I837H1310026-02
