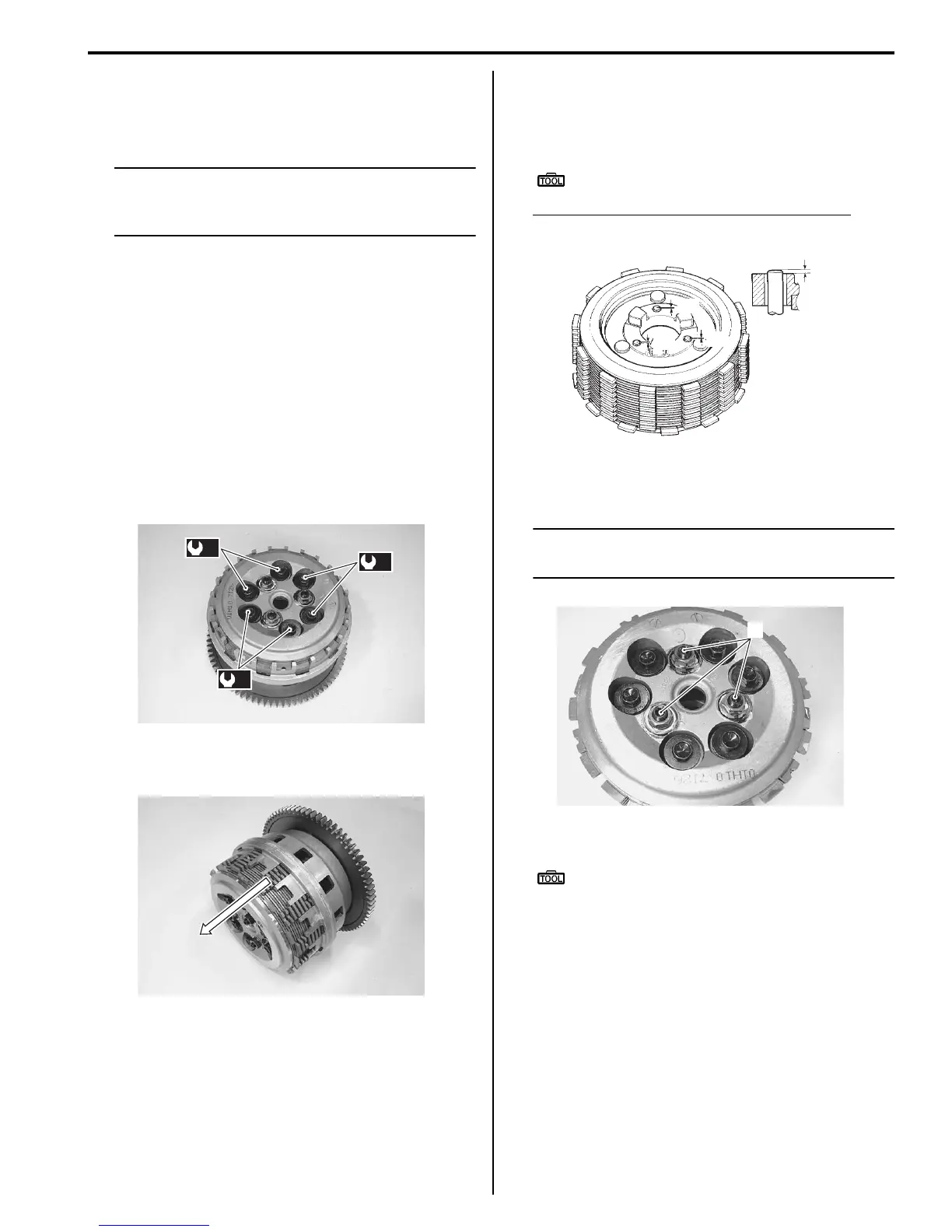

Clutch: 5C-13

Clutch Lifter Pin Inspection and Adjustment

B838H25306009

Refer to “Clutch Removal (Page 5C-5)” and “Clutch

Installation (Page 5C-7)”.

NOTE

When inspection and adjusting the clutch

lifter pin, it is not necessary to install the

clutch onto the countershaft.

Inspect and adjust the clutch lifter pin in the following

procedures:

1) Assemble the following parts into the primary driven

gear assembly.

• Clutch sleeve hub

• Spring washer seat, spring washer

• Clutch drive plates, clutch driven plates

• Pressure plate

• Clutch springs, clutch springs set bolts

Tightening torque

Clutch spring set bolt (a): 10 N·m (1.0 kgf-m, 7.0

lb-ft)

2) Remove the clutch assembly from the primary driven

gear assembly.

3) Inspect the height “A” of clutch lifter adjusting pin

screws at three positions using the thickness gauge.

If the measurement is out of the specification, adjust

the height “A” as shown in the figure.

Special tool

: 09900–20803 (Thickness gauge)

Clutch lifter adjusting pin screw height “A”

Standard: 0.2 – 0.4 mm (0.008 – 0.016 in)

4) Loosen the lock-nut and turn out the adjusting pin

screw (1).

NOTE

Each clutch lifter adjusting pin screw height

should be as closely as possible.

5) Set the thickness gauge to 0.3 mm (0.012 in).

Special tool

(A): 09900–20803 (Thickness gauge)

6) Place a proper flat plate on the thickness gauges

and hold them by hand.

(a)

I837H1530040-01

I837H1530041-01

“A”

I837H1530044-01

I837H1530045-02
