4A-2 Brake Control System and Diagnosis:

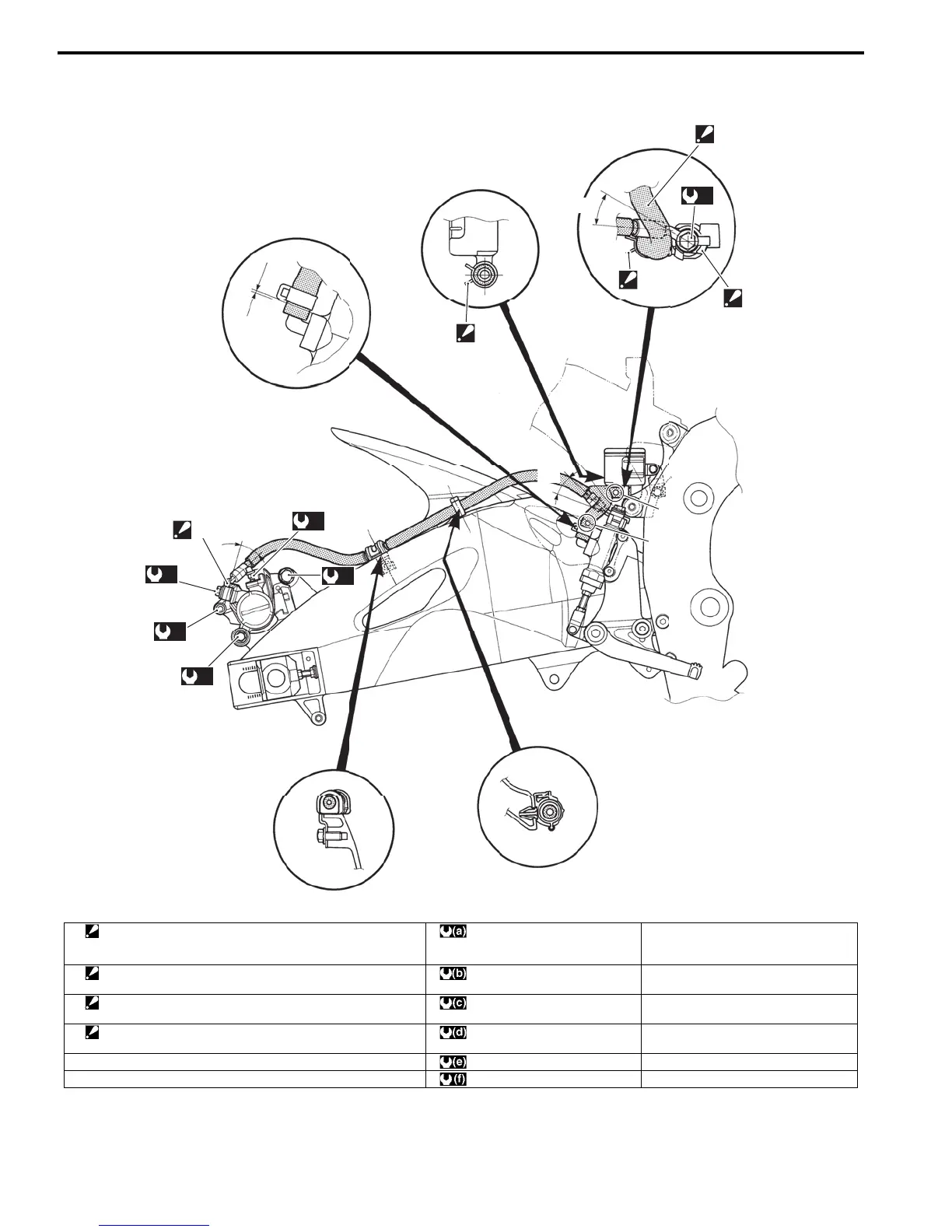

Rear Brake Hose Routing Diagram
B838H24102002
1
2
“a”
“b”
“c”
“d”
(a)
(b)
(c)
(d)
(e)
(f)
3
4
1
“A”
“B”
I837H1410055-01
1. Stopper
: After the brake hose union has contacted to the stopper,
tighten the union bolt.
: 23 N⋅m (2.3 kgf-m, 16.5 lb-ft) “a”: 28°
2. Reservoir hose
: Pass the reservoir hose above the brake hose.
: 23 N⋅m (2.3 kgf-m, 16.5 lb-ft) “b”: 28°
3. Hose clamp
: Face the clamp end backward.
: 33 N⋅m (3.3 kgf-m, 24.0 lb-ft) “c”: 0 – 1.0 mm (0 – 0.04 in)
4. Hose clamp
: Face the clamp end inside.
: 18 N⋅m (1.8 kgf-m, 13.0 lb-ft) “d”: 28°
“A”: White marking : 7.5 N⋅m (0.75 kgf-m, 5.5 lb-ft)
“B”: Yellow marking : 16 N⋅m (1.6 kgf-m, 11.5 lb-ft)

Suzuki GSX-R750 Specifications

General

Engine Type	4-stroke, 4-cylinder, liquid-cooled, DOHC
Displacement	750cc
Compression Ratio	12.5:1
Fuel System	Fuel injection
Front Suspension	Inverted telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Overall Width	710 mm (28.0 in)
Ground Clearance	130 mm (5.1 in)
Seat Height	810 mm (31.9 in)
Curb Weight	190 kg (419 lbs)
Ignition	Electronic ignition (transistorized)
Starter	Electric
Final Drive	Chain
Bore x Stroke	70.0 mm x 48.7 mm
Transmission	6-speed, constant mesh
Rear Brakes	Disc
Front Tires	120/70ZR17M/C (58W)
Rear Tires	180/55ZR17M/C (73W)
Fuel Tank Capacity	17.0 L (4.5 US gallons)
Overall Length	2, 030 mm (79.9 in)
Wheelbase	1390 mm (54.7 in)
Front Brakes	Dual hydraulic disc
