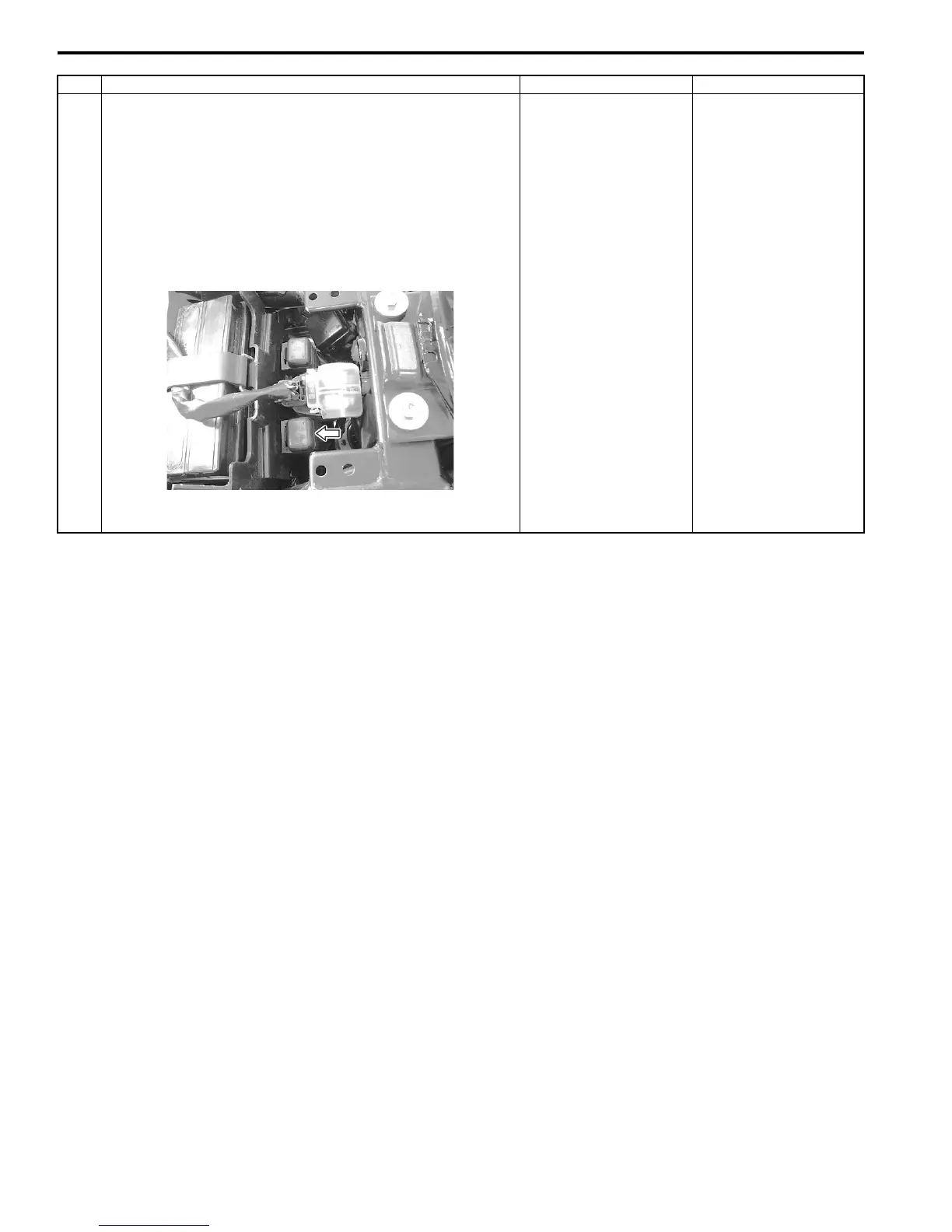

1A-115 Engine General Information and Diagnosis:

Step Action Yes No

1 1) Turn the ignition switch OFF.

2) Remove the seat. Refer to “Exterior Parts Removal and

Installation (GSF650/S/A/SAK7) in Section 9D

(Page 9D-6)”.

3) Check the cooling fan relay coupler for loose or poor

contacts.

If OK, then inspection the cooling fan relay. Refer to

“Cooling Fan Relay Inspection in Section 1F (Page 1F-

8)”.

Is the cooling fan relay OK?

• O/W and O/R wire

open or shorted to

the ground, or poor

15 connection.

• If wire and

connection are OK,

intermittent trouble or

faulty ECM.

• Recheck each

terminal and wire

harness for open

circuit and poor

connection.

• Replace the ECM

with a known good

one, and inspect it

again. Refer to “ECM

Removal and

Installation in Section

1C (Page 1C-1)”.

Replace the cooling fan

relay with a new one.

Refer to “Cooling Fan

Relay Inspection in

Section 1F (Page 1F-

8)”.

I718H1110222-02

Other manuals for Suzuki GSX650F

Supplementary Service Manual48 pages

Questions and Answers:

E
Elizabeth RileyJul 26, 2025
What to do if my Suzuki GSX650F Motorcycle is difficult to start?
- S
  Sarah BrownJul 26, 2025
  If your Suzuki Motorcycle is difficult to start, begin by performing a visual inspection. Specifically, check the engine oil level and look for any signs of leakage. Next, inspect the engine coolant level and check for coolant leakage. After that, check the fuel level and look for any fuel leakage. Also, make sure to check the air cleaner element for clogging. You should also check the battery condition, throttle cable play, vacuum hoses for looseness, bends, or disconnections, and look for any broken fuses. Furthermore, check the FI light and other warning lights, speedometer operation, exhaust gas leakage and noise, each coupler disconnection, and clogged radiator fins.

Suzuki GSX650F Specifications

General

Engine Type	4-stroke, 4-cylinder, liquid-cooled, DOHC
Displacement	656cc
Bore x Stroke	65.5 mm x 48.7 mm
Compression Ratio	11.5:1
Fuel System	Fuel injection
Ignition	Electronic ignition (transistorized)
Starter	Electric
Transmission	6-speed constant mesh
Final Drive	Chain
Front Suspension	Telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Front Brakes	Disc, twin
Rear Brakes	Disc
Front Tire	120/70ZR17M/C (58W), tubeless
Rear Tire	160/60ZR17M/C (69W), tubeless
Overall Length	2, 130 mm (83.9 in)
Wheelbase	1, 470 mm (57.9 in)
Overall Width	760 mm
Ground Clearance	135 mm
Curb Weight	241 kg
