Lighting Systems: 9B-4

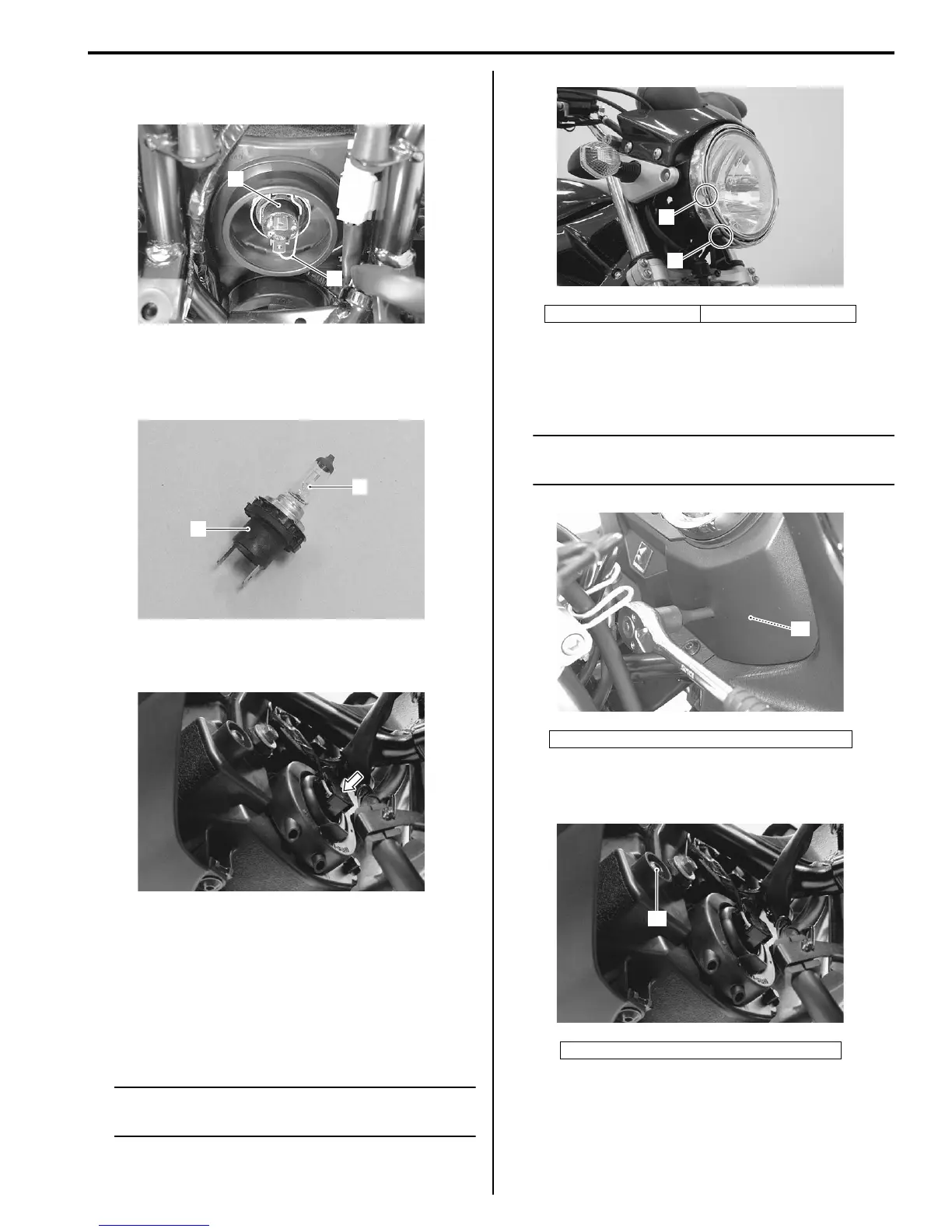

4) Replace the headlight bulb/socket (Low beam) (4) by
unhooking the bulb holder spring (5).
5) Disconnect the headlight bulb (7) from the socket
(6).
6) Replace the headlight bulb (7) with a new one.
7) Replace the headlight bulb (High beam) in the same
way as that of the low beam one.
8) Reinstall the removed parts.
Headlight Beam Adjustment (GSF650/S/A/
SAK7)
B817H29206005
GSF650/AK7
Adjust the headlight beam, both horizontally and
vertically.
NOTE
To adjust the headlight beam, adjust the
beam horizontally first, then vertically.
GSF650S/SAK7
1) Insert 5 mm hexagon wrench as shown and adjust
the Low and High headlight beam horizontally.
NOTE
To adjust the headlight beam, adjust the
beam horizontally first, then vertically.
2) Adjust the Low and High headlight beam vertically
from the lower side.
5
4
I718H1920011-02
6
7
I718H1920049-02
I717H1920004-01
1. Horizontal adjuster 2. Vertical adjuster
“A”: Horizontal adjuster (For both Low and High beam)
“B”: Vertical adjuster (For both Low and High beam)
1
2
I717H1920005-01
“A”
I718H1920041-01
“B”
I717H1920006-01

Suzuki GSX650F Specifications

General

Engine Type	4-stroke, 4-cylinder, liquid-cooled, DOHC
Displacement	656cc
Bore x Stroke	65.5 mm x 48.7 mm
Compression Ratio	11.5:1
Fuel System	Fuel injection
Ignition	Electronic ignition (transistorized)
Starter	Electric
Transmission	6-speed constant mesh
Final Drive	Chain
Front Suspension	Telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Front Brakes	Disc, twin
Rear Brakes	Disc
Front Tire	120/70ZR17M/C (58W), tubeless
Rear Tire	160/60ZR17M/C (69W), tubeless
Overall Length	2, 130 mm (83.9 in)
Wheelbase	1, 470 mm (57.9 in)
Overall Width	760 mm
Ground Clearance	135 mm
Curb Weight	241 kg
