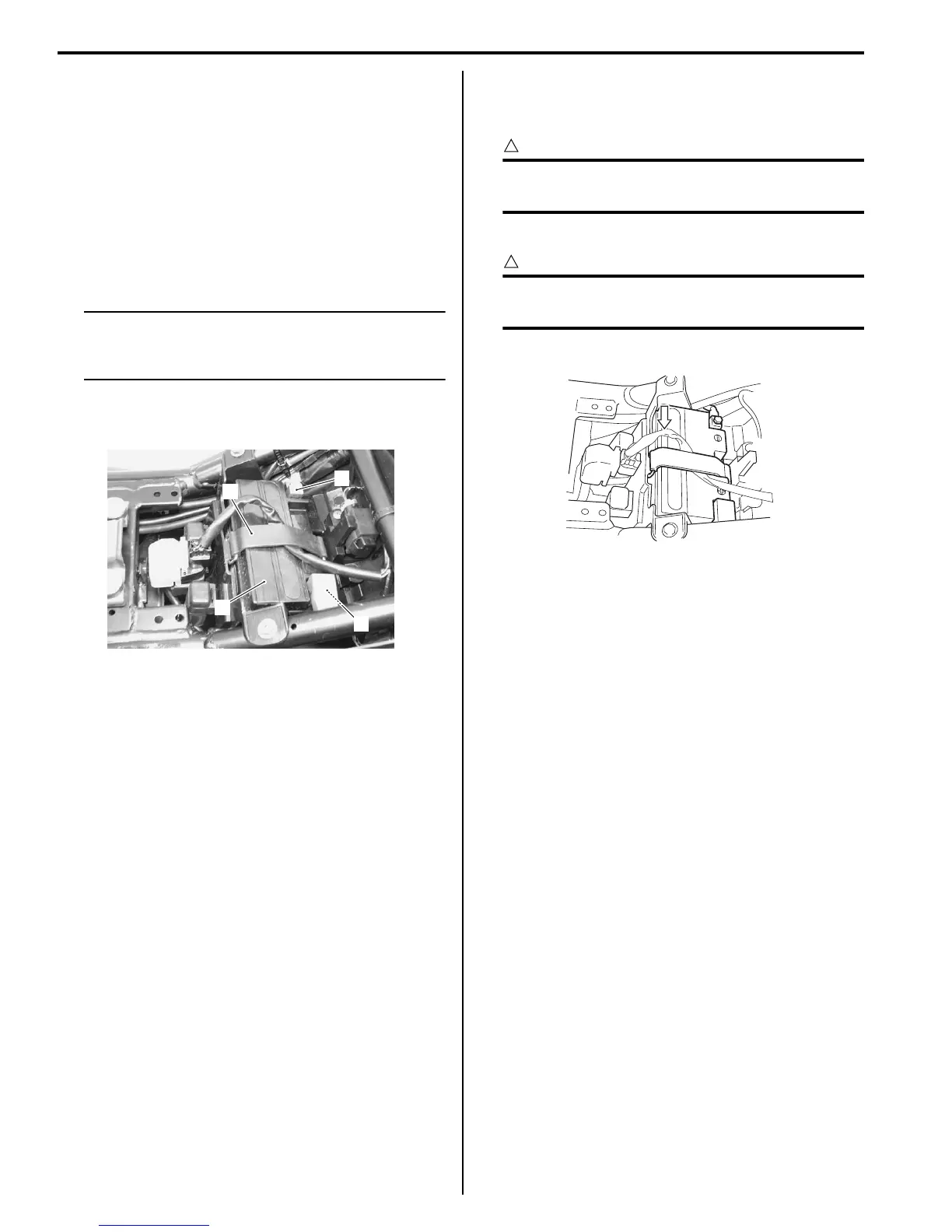

1J-12 Charging System:

Battery Removal and Installation

B817H21A06009

Refer to “Electrical Components Location in Section 0A

(Page 0A-10)”.

Removal

1) Remove the seat. Refer to “Exterior Parts Removal

and Installation (GSF650/S/A/SAK7) in Section 9D

(Page 9D-6)”.

2) Disconnect the battery (–) lead wire (1).

3) Disconnect the battery (+) lead wire (2).

NOTE

Be sure to disconnect the battery (–) lead

wire (1) first, then disconnect the battery (+)

lead wire (2).

4) Remove the rubber band (3).

5) Remove the battery (4) from the motorcycle.

Installation

Install the battery in the reverse order of removal.

Pay attention to following points:

CAUTION

Never use anything except the specified

battery.

• Install the rubber band.

CAUTION

Be careful not to slack the wiring harness

between the battery and starter relay.

• Tighten the battery lead wire mounting bolts securely.

Battery Visual Inspection

B817H21A06010

Inspect the battery in the following procedures:

1) Remove the seat. Refer to “Exterior Parts Removal

and Installation (GSF650/S/A/SAK7) in Section 9D

(Page 9D-6)”.

2) Visually inspect the surface of the battery container.

If any signs of cracking or electrolyte leakage from

the sides of the battery have occurred, replace the

battery with a new one.

If the battery terminals are found to be coated with

rust or an acidic white powdery substance, clean the

battery terminals with sandpaper.

3) Install the seat. Refer to “Exterior Parts Removal and

Installation (GSF650/S/A/SAK7) in Section 9D

(Page 9D-6)”.

I717H11A0018-01

I718H11A0029-01

Other manuals for Suzuki GSX650F

Supplementary Service Manual48 pages

Questions and Answers:

E
Elizabeth RileyJul 26, 2025
What to do if my Suzuki GSX650F Motorcycle is difficult to start?
- S
  Sarah BrownJul 26, 2025
  If your Suzuki Motorcycle is difficult to start, begin by performing a visual inspection. Specifically, check the engine oil level and look for any signs of leakage. Next, inspect the engine coolant level and check for coolant leakage. After that, check the fuel level and look for any fuel leakage. Also, make sure to check the air cleaner element for clogging. You should also check the battery condition, throttle cable play, vacuum hoses for looseness, bends, or disconnections, and look for any broken fuses. Furthermore, check the FI light and other warning lights, speedometer operation, exhaust gas leakage and noise, each coupler disconnection, and clogged radiator fins.
