Wheels and Tires: 2D-18

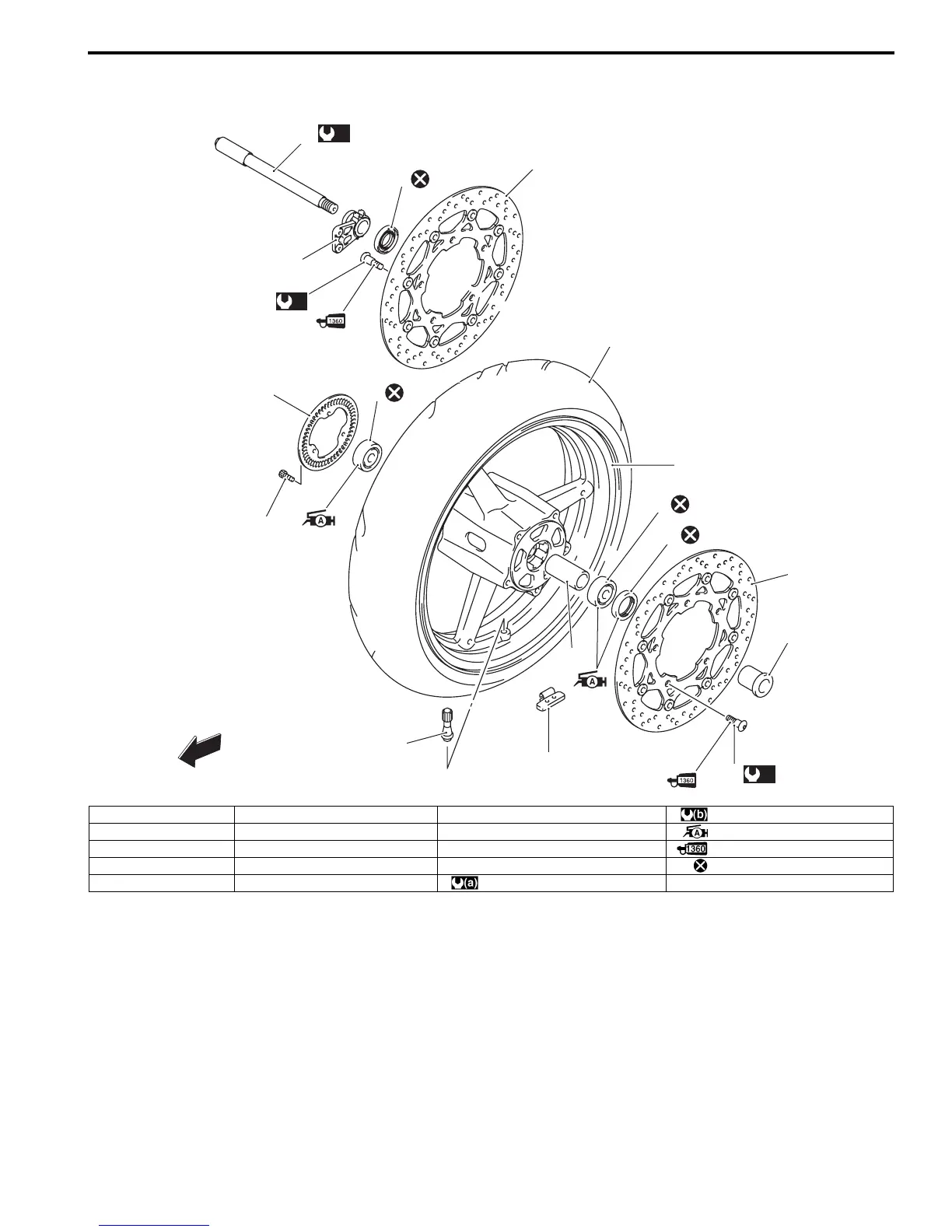

Front Wheel Components (GSF650A/UA/SA/ASUK7)
B817H22406015
FWD
FWD
(a)
1
3
4
9
(b)
2
11
12
6
4
5
3
10
(b)
2
14
13
5
7
8
I717H2240001-01
1. Front axle 6. Spacer 11. Tire : 23 Nâ‹…m (2.3 kgf-m, 16.5 lb-ft)
2. Brake disc bolt 7. Sensor rotor bolt 12. Front wheel : Apply grease.
3. Brake disc 8. Wheel speed sensor rotor 13. Air valve : Apply thread lock to thread part.
4. Dust seal 9. Wheel speed sensor bracket 14. Wheel balancer : Do not reuse.
5. Bearing 10. Collar : 100 Nâ‹…m (10.0 kgf-m, 72.5 lb-ft)

Table of Contents

Other manuals for Suzuki GSX650F

Questions and Answers:

Suzuki GSX650F Specifications

General IconGeneral
Engine Type4-stroke, 4-cylinder, liquid-cooled, DOHC
Displacement656cc
Bore x Stroke65.5 mm x 48.7 mm
Compression Ratio11.5:1
Fuel SystemFuel injection
IgnitionElectronic ignition (transistorized)
StarterElectric
Transmission6-speed constant mesh
Final DriveChain
Front SuspensionTelescopic, coil spring, oil damped
Rear SuspensionLink type, coil spring, oil damped
Front BrakesDisc, twin
Rear BrakesDisc
Front Tire120/70ZR17M/C (58W), tubeless
Rear Tire160/60ZR17M/C (69W), tubeless
Overall Length2, 130 mm (83.9 in)
Wheelbase1, 470 mm (57.9 in)
Overall Width760 mm
Ground Clearance135 mm
Curb Weight241 kg
