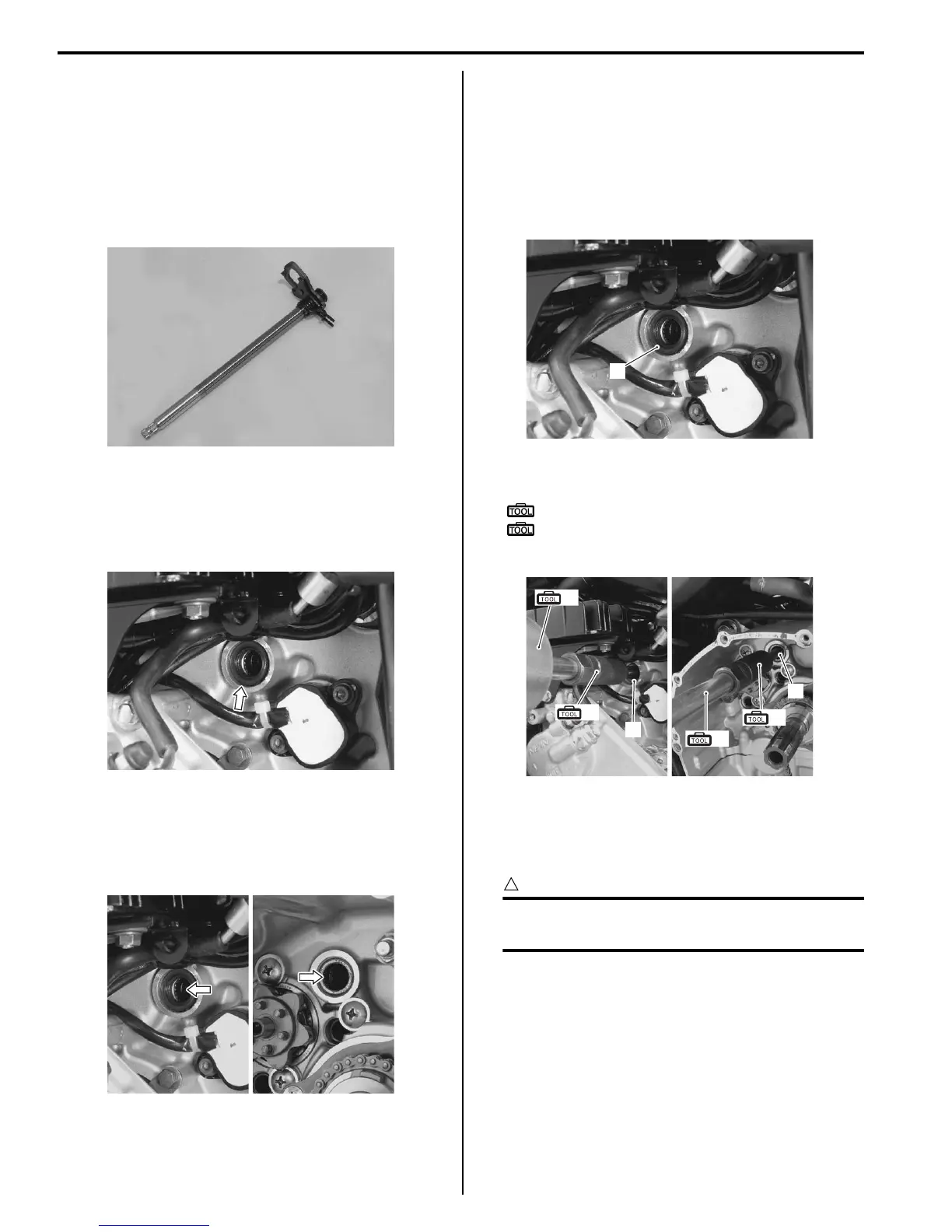

5B-18 Manual Transmission:

Gearshift Linkage Inspection

B817H25206015

Refer to “Gearshift Shaft / Gearshift Cam Plate Removal

and Installation (Page 5B-15)”.

Gearshift Shaft

Check the gearshift shaft for bend or wear.

Check the return spring for damage or fatigue.

If any defects are found, replace the defective part(-s).

Gearshift Shaft Oil Seal

Inspect the gearshift shaft oil seal lip for damage or

wear. If any defect is found, replace the oil seal with a

new one.

Gearshift Shaft Bearing

Inspect the gearshift shaft bearing for abnormal noise

and smooth rotation. Replace the bearing if there is

anything unusual.

Gearshift Shaft Oil Seal / Bearing Removal and

Installation

B817H25206016

Removal

1) Remove the gearshift shaft. Refer to “Gearshift Shaft

/ Gearshift Cam Plate Removal and Installation

(Page 5B-15)”.

2) Remove the gearshift shaft oil seal (1).

3) Remove the bearings (2), (3) with the special tools.

Special tool

(A): 09921–20210 (Bearing remover)

(B): 09930–30104 (Rotor remover sliding

shaft)

Installation

Install the oil seal and bearing in the reverse order of

removal. Pay attention to the following points:

CAUTION

The removed oil seal and bearings must be

replaced with new ones.

I718H1520061-01

I718H1520062-01

I718H1520063-01

I718H1520064-01

(B)

(A)

I718H1520065-01
