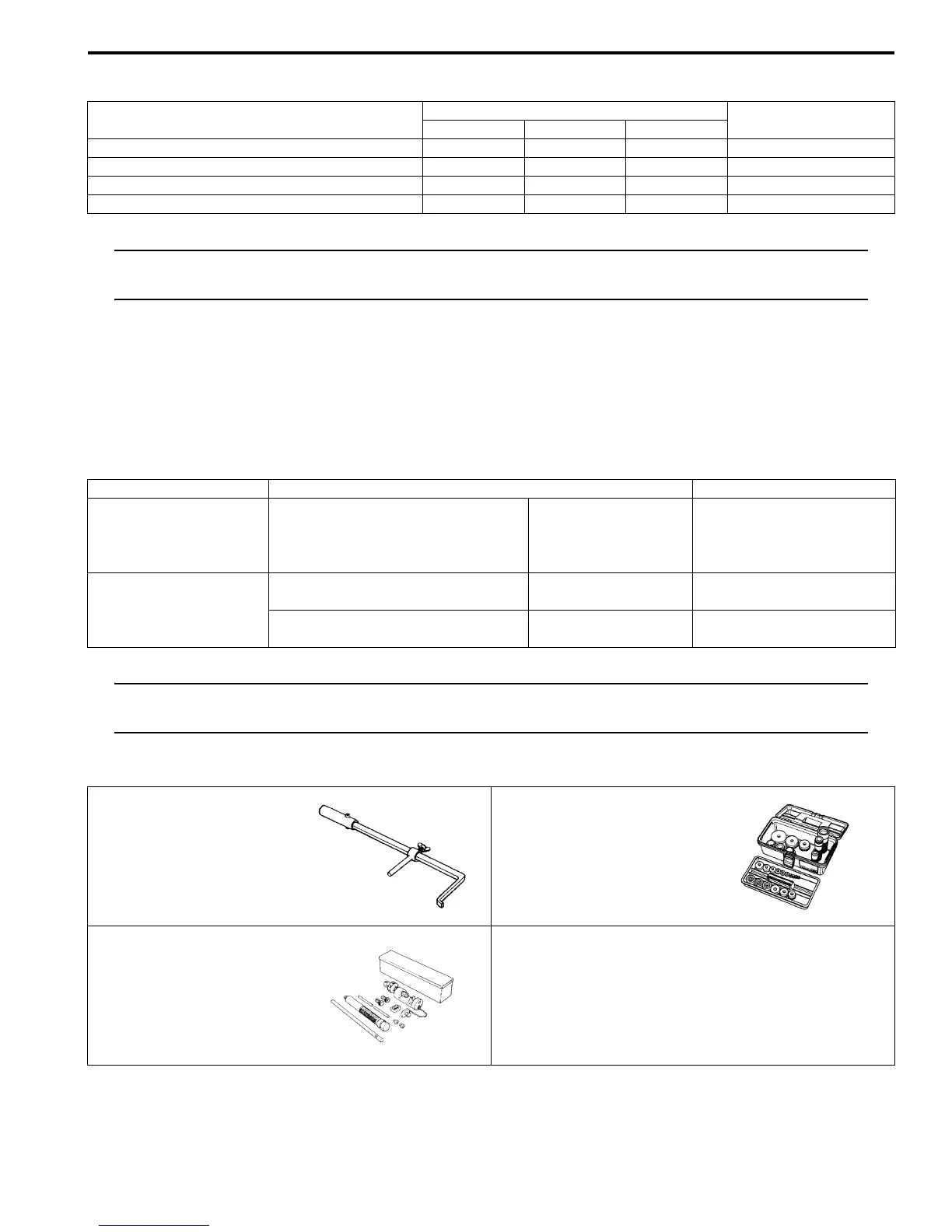

Drive Chain / Drive Train / Drive Shaft: 3A-11
Tightening Torque Specifications
B817H23107002
NOTE
The specified tightening torque is also described in the following.
“Drive Chain Related Components (Page 3A-1)”
Reference:
For the tightening torque of fastener not specified in this section, refer to “Tightening Torque List in Section 0C
(Page 0C-7)”.
Special Tools and Equipment
Recommended Service Material
B817H23108001
NOTE
Required service material is also described in the following.
“Drive Chain Related Components (Page 3A-1)”
Special Tool
B817H23108002
Fastening part
Tightening torque
Note
Nmkgf-mlbf-ft
Engine sprocket nut 115 11.5 83.0 )(Page 3A-3)
Speed sensor rotor bolt 25 2.5 18.0 )(Page 3A-3)
Speed sensor mounting bolt 6.5 0.65 4.7 )(Page 3A-3)
Rear sprocket nut 60 6.0 43.5 )(Page 3A-5)
Material SUZUKI recommended product or Specification Note
Grease SUZUKI SUPER GREASE A or
equivalent
P/No.: 99000–25010 )(Page 3A-3) / )(Page 3A-
4) / )(Page 3A-5) /
)(Page 3A-6) / )(Page 3A-
7)
Thread lock cement Thread Lock Cement Super 1303 or
equivalent
P/No.: 99000–32030 )(Page 3A-3)
THREAD LOCK CEMENT SUPER
1322 or equivalent
P/No.: 99000–32110 )(Page 3A-3)
09913–50121 09913–70210
Oil seal remover Bearing installer set
)(Page 3A-6) )(Page 3A-6) / )(Page 3A-
7) / )(Page 3A-7)
09922–22711
Drive chain cutting and
joining tool
)(Page 3A-7)
