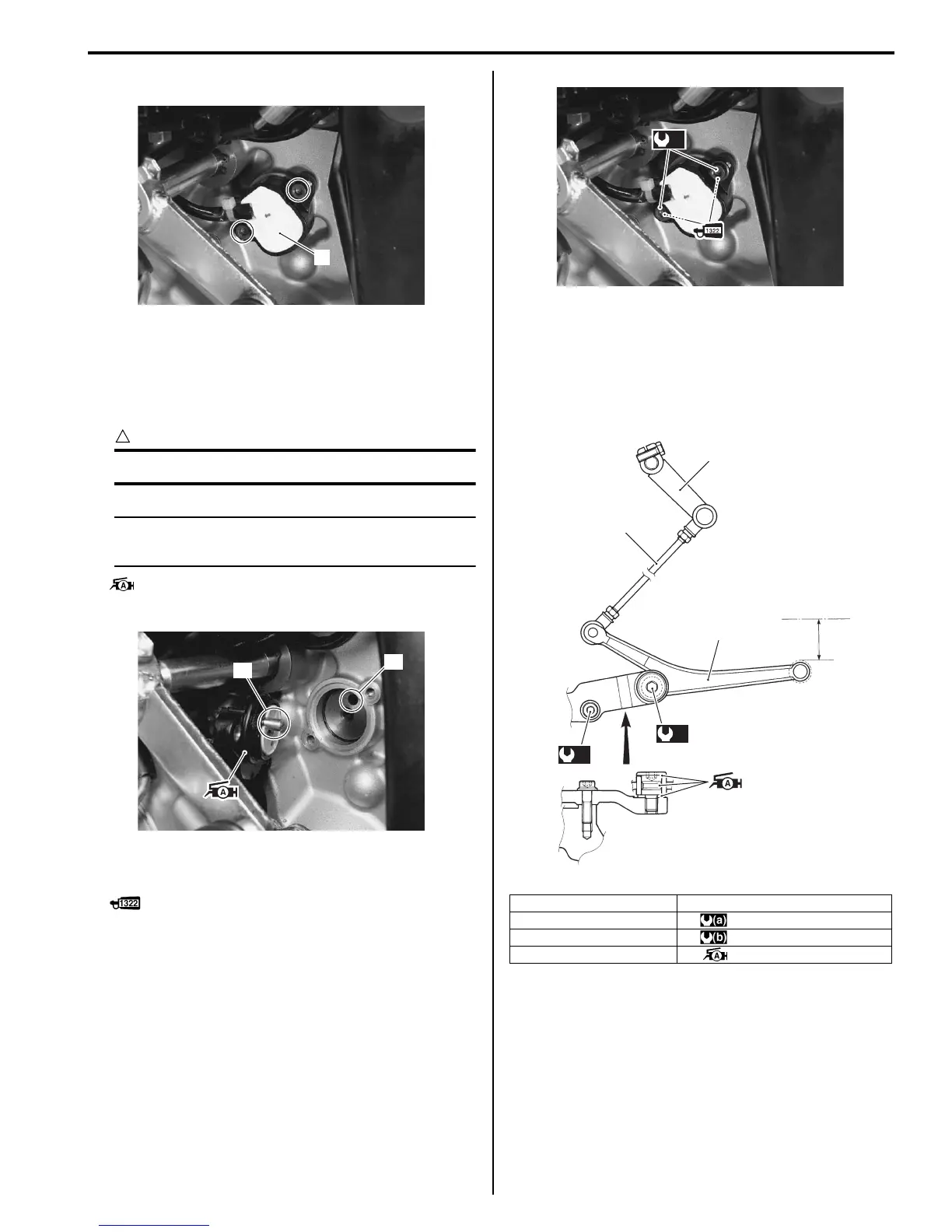

Manual Transmission: 5B-13

5) Remove the gear position switch (2).

Installation

Install the gear position switch in the reverse order of

removal. Pay attention to the following points:

• Apply grease to the O-ring.

CAUTION

Replace the O-ring with a new one.

NOTE

Align the gear position switch pin “A” with

the gearshift cam hole “B”.

: Grease 99000–25010 (SUZUKI SUPER

GREASE A or equivalent)

• Apply thread lock to the gear position switch bolts and

tighten them to the specified torque.

: Thread lock cement 99000–32110

(THREAD LOCK CEMENT SUPER 1322 or

equivalent)

Tightening torque

GP switch mounting bolt (a): 6.5 N·m (0.65 kgf-m,

4.7 lbf-ft)

• Route the gear position switch lead wire. Refer to

“Wiring Harness Routing Diagram (GSF650/S/A/

SAK7) in Section 9A (Page 9A-8)”.

Gearshift lever Construction

B817H25206009

I718H1520043-01

“A”

“B”

I718H1520044-01

1. Gearshift lever “a”: 45 – 55 mm (1.8 – 2.2 in)

2. Gearshift link arm : 40 N⋅m (4.0 kgf-m, 29.0 lb-ft)

3. Gearshift link rod : 23 N⋅m (2.3 kgf-m, 16.5 lb-ft)

“A”: Footrest top surface : Apply grease.

(a)

I718H1520045-02

“a”

“A”

(a)

(b)

I718H1520074-02
