4A-3 Brake Control System and Diagnosis:

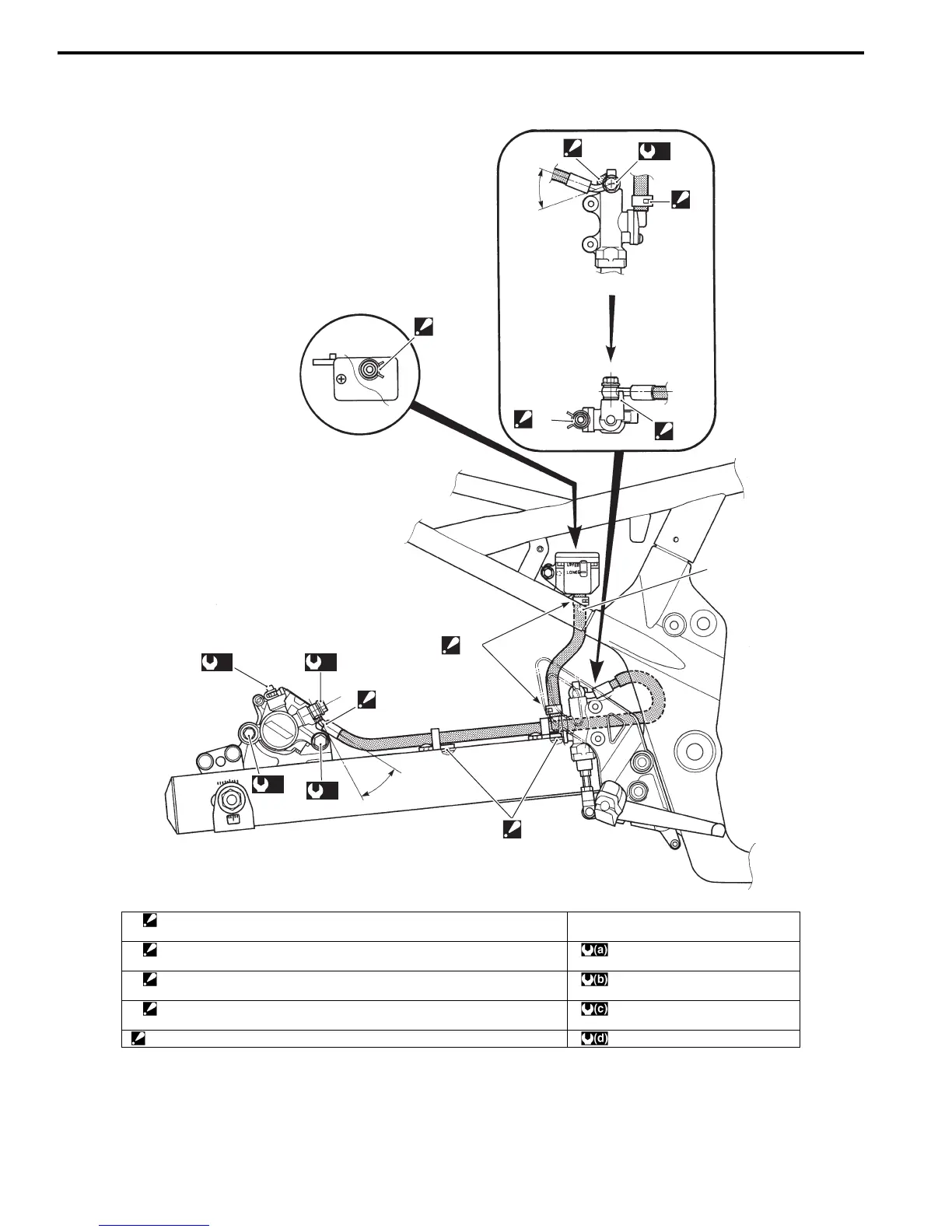

Rear Brake Hose Routing Diagram
B817H24102003
1
3
2
3
2
3
28˚
42˚
(b)
(a)
“B”
“A”
4
(d)
(a)
(c)
I717H1410001-03
1. Brake hose clamp
: Brake hose clamp ends should face forward.
“B” : White paint
2. Brake hose clamp
: Brake hose clamp ends should face backward.
: 23 N⋅m (2.3 kgf-m, 16.5 lb-ft)
3: Stopper
: After the brake hose union has contacted the stopper, tighten the union bolt.
:6 N⋅m (0.6 kgf-m, 4.5 lb-ft)
4: Guide:
Position the guide with hole of swinging arm before tightening.
: 22 N⋅m (2.2 kgf-m, 16.0 lb-ft)
“A” : Insert reservoir hose into root of reservoir tank firmly. : 27 N⋅m (2.7 kgf-m, 19.5 lb-ft)
