Suzuki RM85 - Rear Shock Absorber Removal

REAR SUSPENSION 17-3
REAR SHOCK ABSORBER

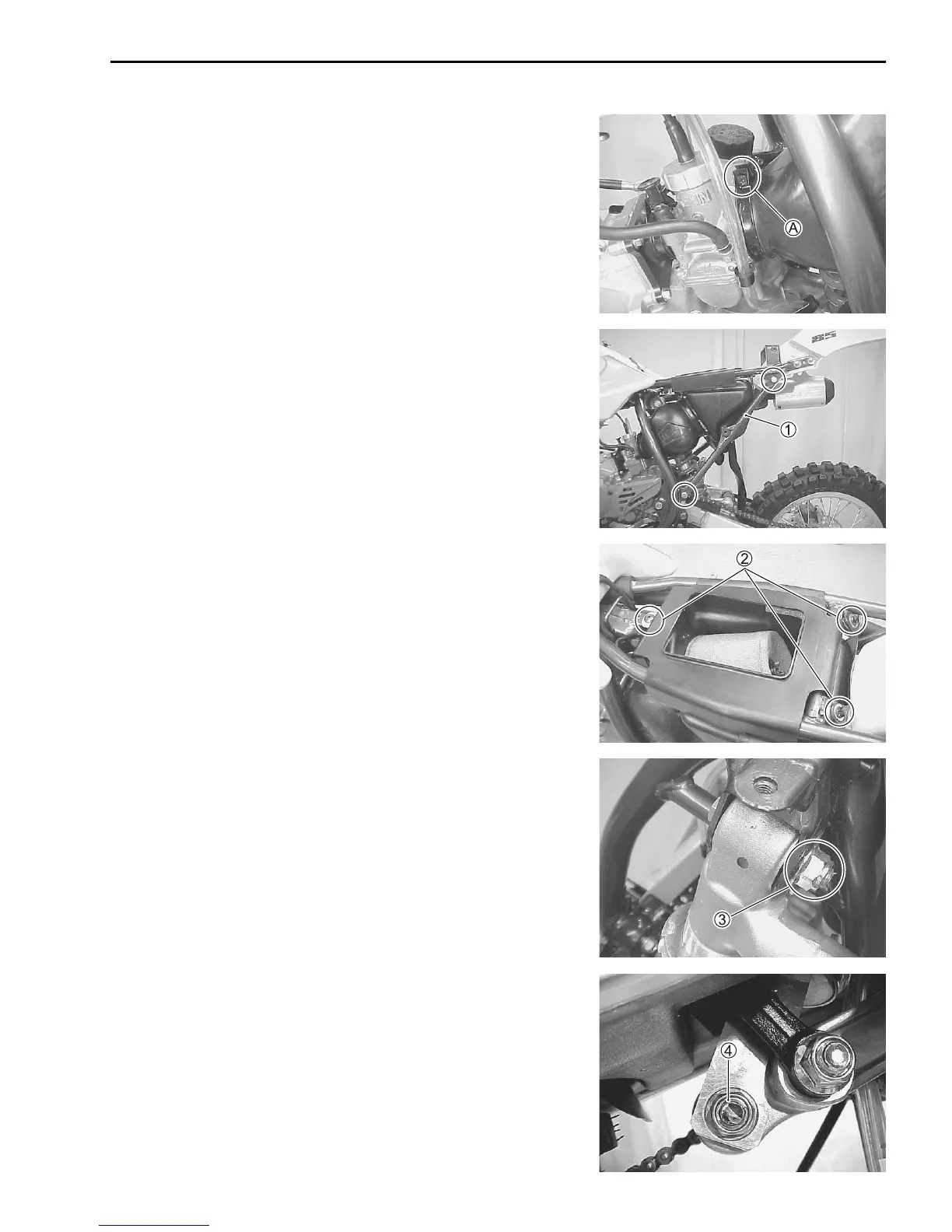

REAR SHOCK ABSORBER REMOVAL
• Place a block under chassis tubes.
• Remove the frame covers and seat. (5-2)
• Loosen the air cleaner clamp screw A.
• Remove the frame side tube 1.
• Loosen the bolts and screw 2.
• Remove the air cleaner box.
• Loosen the rear shock absorber upper mounting bolt and nut
3.
• Loosen the rear shock absorber lower mounting bolt and nut
4.
• Remove the rear shock absorber.
