CLEARVU2 7

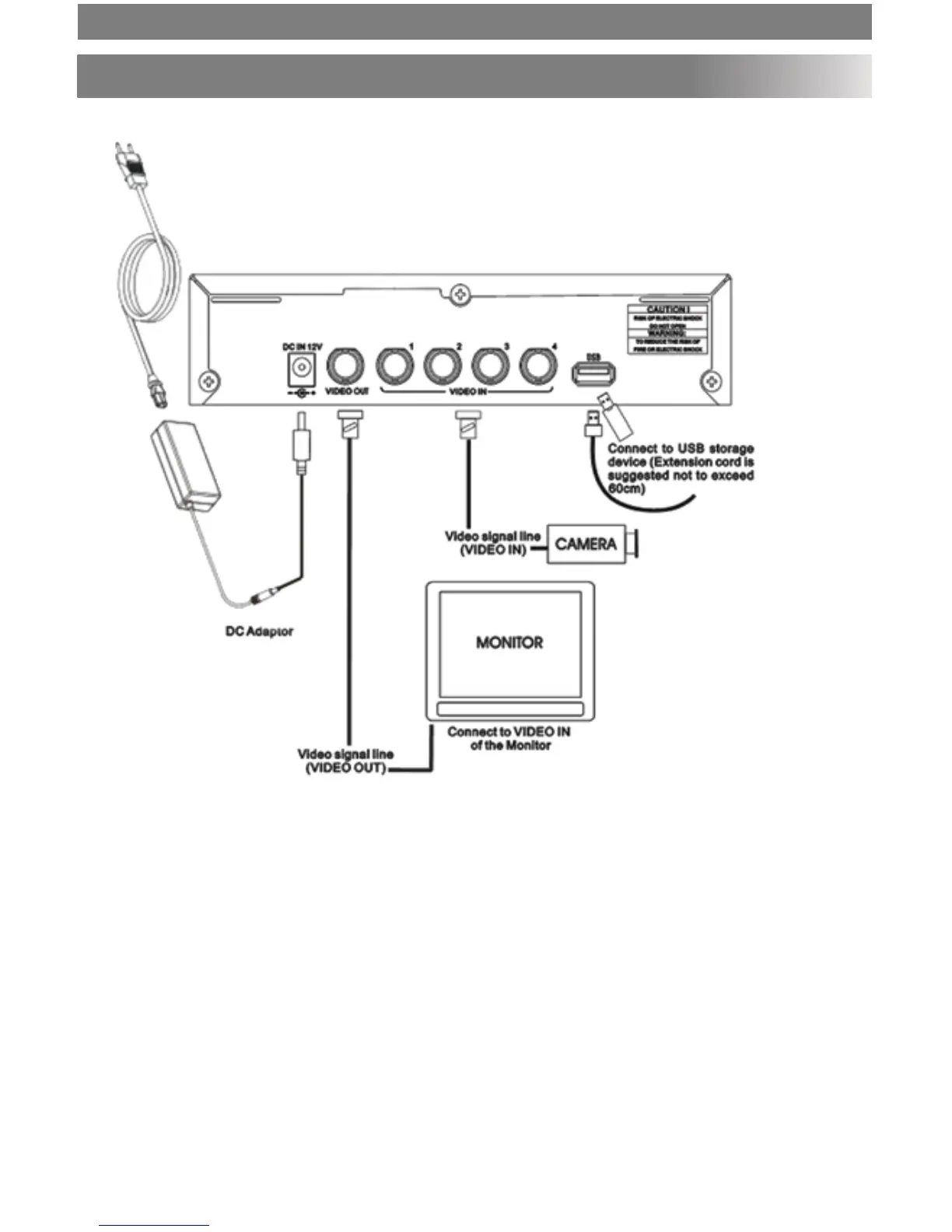

CONNECTiON DIAGRAM
Connecting the DVR to a TV/Monitor
1. Connect one end of the RCA (male) wire to the VIDEO OUT port on the DVR.
2. Attach the other end of the RCA (male) wire to the VIDEO IN port on your TV/monitor.
3. Ensure that your TV/monitor is set to the proper VIDEO INPUT channel.
Note: Refer to the TVs remote control user manual if you cannot change the input
