SectionV:Parts

5.0.PAR.SL-520X


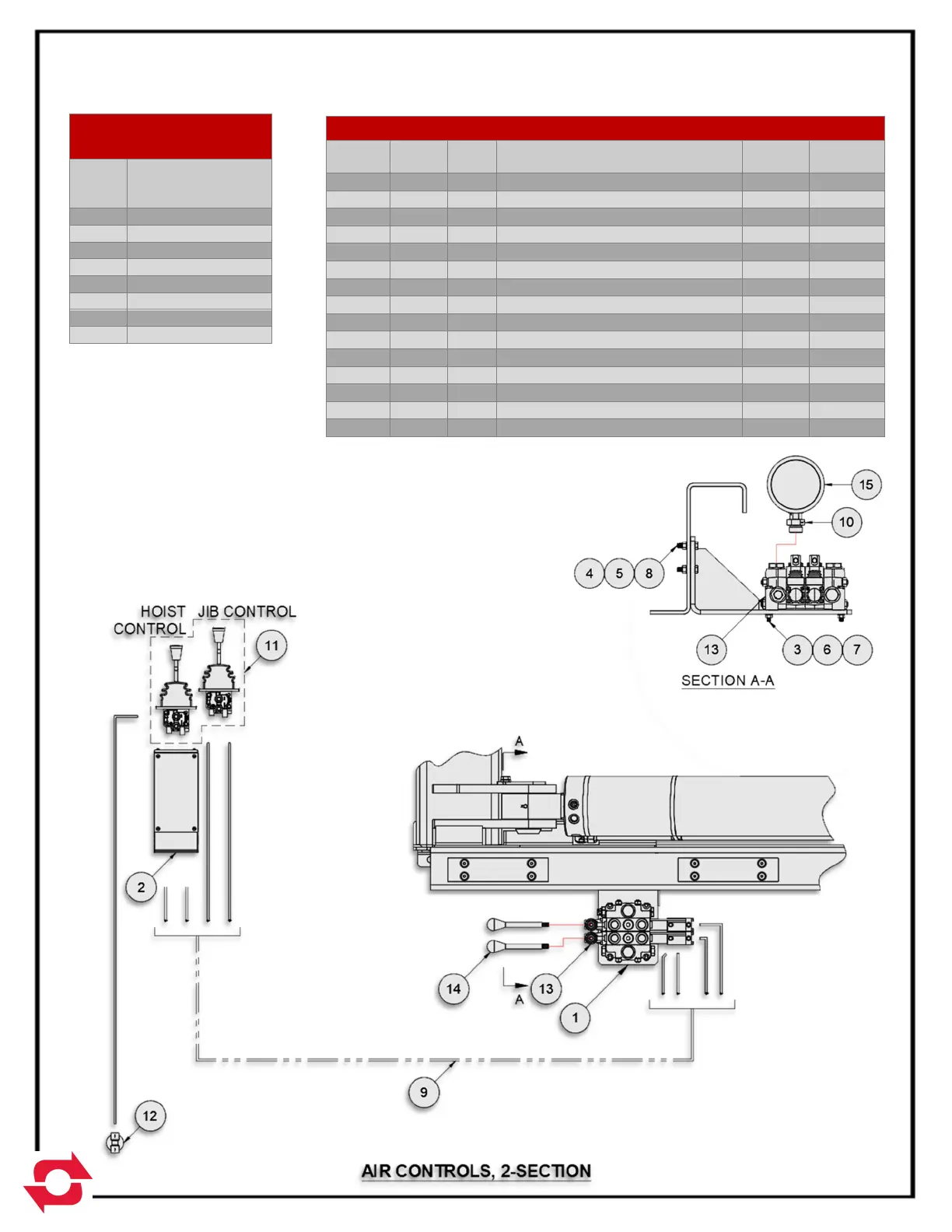

91H72 – AIR CONTROLS, 2-SECTION SL-520X
ITEM
PART
#
QTY DESCRIPTION
WT-
lb/ea.
WT-lb/all
1
45H34 1 Valve Mnt Bkt, X-HD 15.12 15.12
2
51H27 1 Air Ctrl Console, 2-Sect 4.20 4.20
3
00752 4 Washer, Lock 5/16 0.03 0.12
4
00755 4 Washer, Lock 3/8 0.03 0.12
5
00P14 4 Nut, Hex 3/8-16 UNC Gr8 0.02 0.08
6
00P19 4 HHCS 5/16-18 UNC x 2-3/4 Gr8 0.02 0.08
7
00P20 4 Nut, Hex 5/16-18 UNC Gr8 0.01 0.04
8
00P44 4 HHCS 3/8-16 UNC x 1-1/2 Gr8 0.07 0.28
9
12P94 1 Air Line Kit 1.40 1.40
10
14P45 1 Adp Hyd 12MB/04FB 0.34 0.34
11
20P72 1 Control Handle, 2-Sect Air 1.60 1.60
12
20P74 1 Air Pressure Protection Valve 0.60 0.60
13
23P21 1 Hyd Valve, 2-Sect HP Air 46.00 46.00
14
23P38 2 Manual Control Handle, 5.5" 0.50 1.00
15
23P39 1 Hyd Gauge, 5000 PSI 1.00 1.00
HEX HEAD CAP SCREW
TORQUE SPECS
BOLT
SIZE
SAE GR 8
W/ LOCK WASHER
(FT-LBS)
5/16 30
3/8 53
7/16 85
1/2 130
5/8 258
3/4 459
7/8 739
1 1108
Note: Apply Loctite 243 (Blue) to
all bolts.
5-12
