swaploader SL-520X - Options; Adjustable Jib Sub-Assembly

VI:Options
6.0.OPT.SL-520X

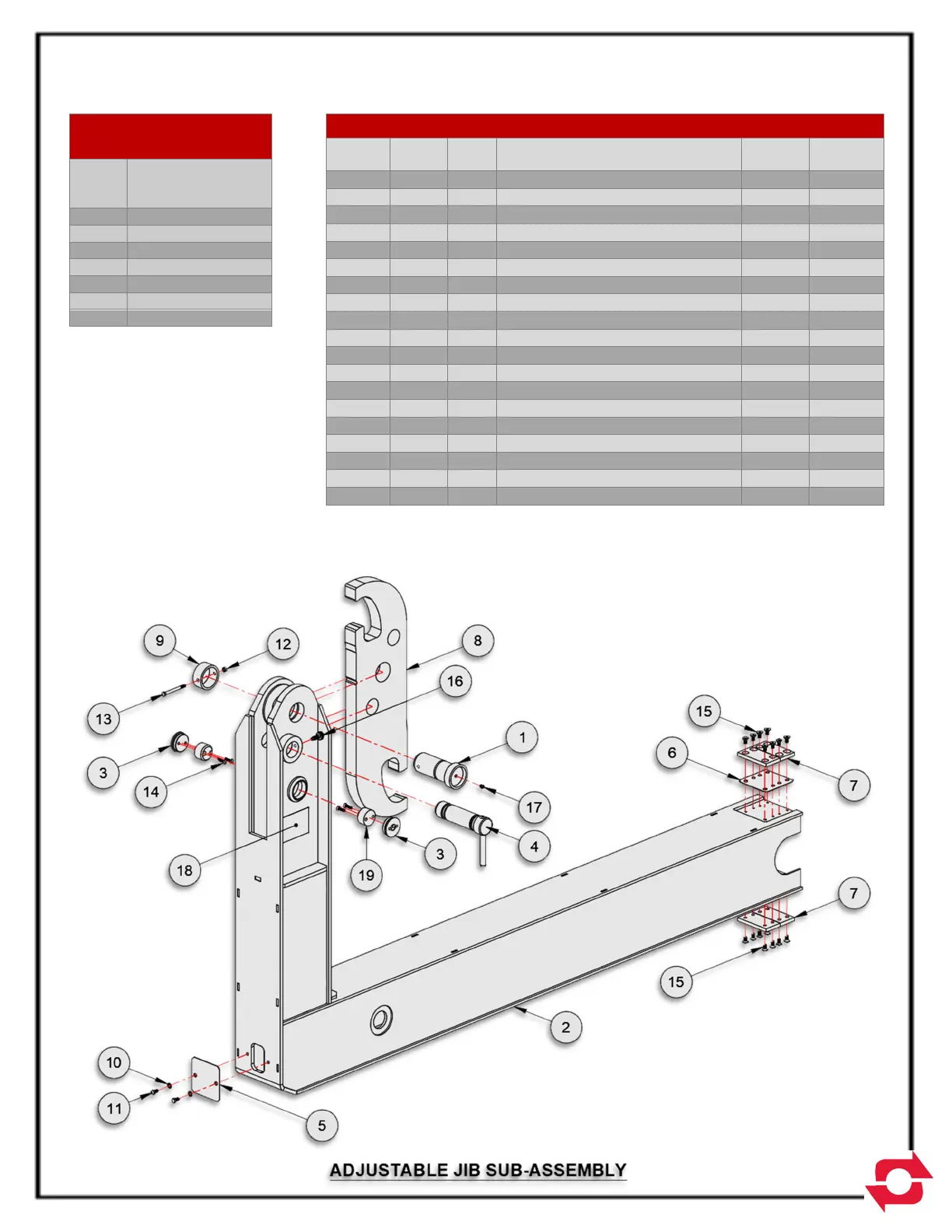

45H12 – ADJUSTABLE JIB SUB-ASSEMBLY SL-520X
ITEM
PART
#
QTY DESCRIPTION
WT-
lb/ea.
WT-lb/all
1
43H10 1 Pin, Hook Pvt 2-3/4 x 5-3/8 12.34 12.34
2
45H13 1 Adj Jib Wdmt 54/62, 520X 690.90 690.90
3
45H32 2 Plug, Wear Pad Mnt 1.05 2.10
4
45H38 1 Pin, Hook Lock 2-1/4 x 7-5/8 10.59 10.59
5
62H11 1 Cover, Jib 5-1/4x11GAx5-1/4 0.92 0.92
6
77H05 1 Shim 5-1/2 x 16GA x 5-1/2 0.48 0.48
7
80H35 4 Wear Pad, 2-3/4x1/2x5-1/2 0.28 1.12
8
86H95 1 Hook, Adj Jib 54/62 150.70 150.70
9
86H98 1 Lock Tube, Jib 3-1/2ODx1-1/2 1.25 1.25
10
00755 2 Washer, Lock 3/8 0.01 0.02
11
00P03 2 HHCS 3/8-16 UNC x 3/4 Gr8 0.04 0.08
12
00P34 1 Nut, Lock 3/8-16 UNC GrC 0.02 0.02
13
00P99 1 HHCS 3/8-16 UNC x 4 Gr8 0.14 0.14
14
01P16 4 FHCS 5/16-18 UNC x 1-1/4 Br 0.03 0.12
15
02P08 16 FHCS 3/8-16 UNC x 3/4 ZP 0.03 0.48
16
23P40 1 Spring Plunger, 1/2-13 SS 0.14 0.14
17
90P03 1 Grease Zerk, 1/8-27 NPT Str 0.02 0.02
18
90P94 2 Decal, Adj Jib Op 54/62 0.01 0.02
19
91P42 2 Wear Pad, Ø2-1/4x1-3/8 1.39 2.78
HEX HEAD CAP SCREW
TORQUE SPECS
BOLT
SIZE
SAE GR 8
W/ LOCK WASHER
(FT-LBS)
3/8 53
7/16 85
1/2 130
5/8 258
3/4 459
7/8 739
1 1108
Note: Apply Loctite 243 (Blue) to
all bolts.
6-1
