swaploader SL-520X - Cylinder Circuit Options

VI:Options


6.0.OPT.SL-520X


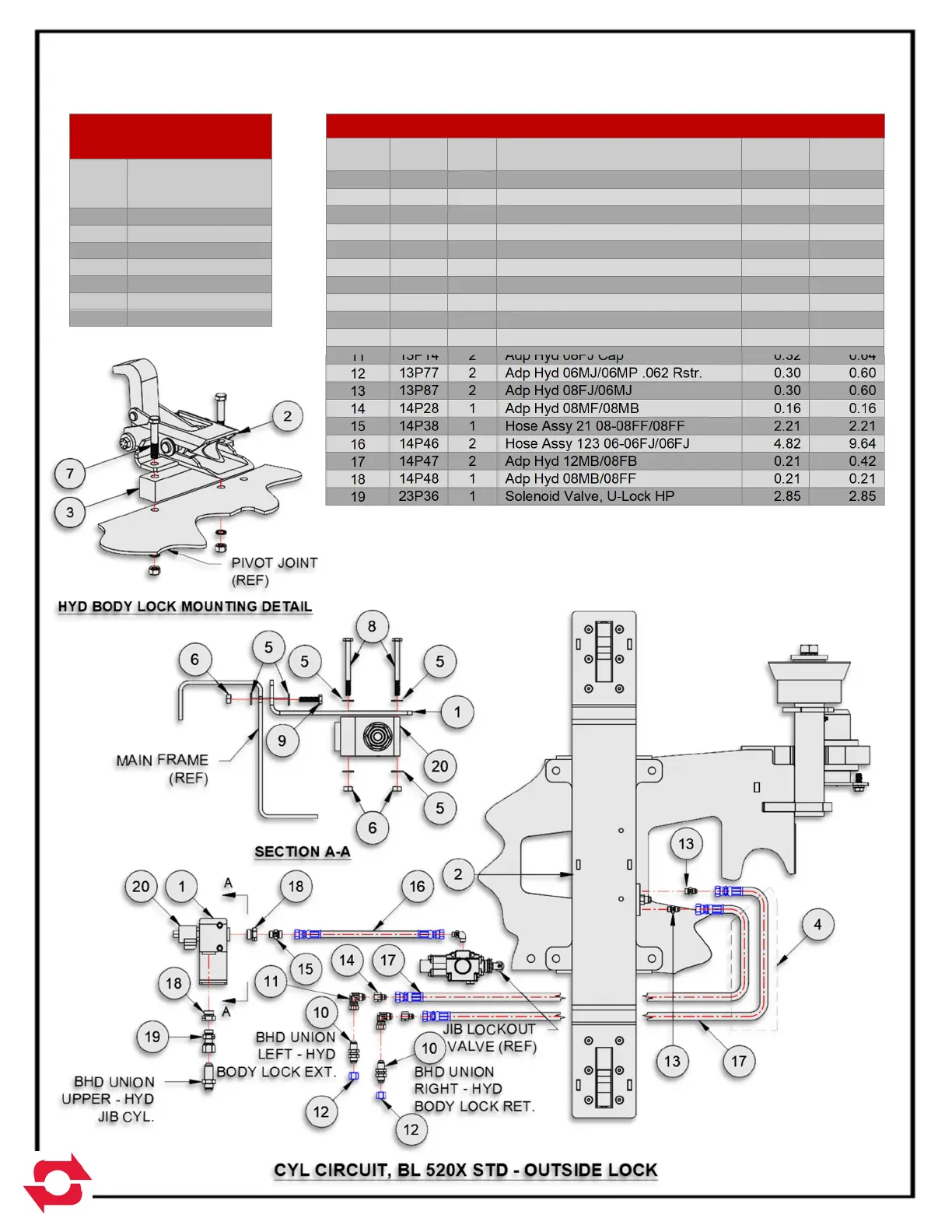

91H80– CYLINDER CIRCUIT, OL 520X STD SL-520X
ITEM
PART
#
QTY DESCRIPTION
WT-
lb/ea.
WT-lb/all
1
45H39 1 Outside Lock Assy, X-HD 177.46 177.46
2
89H06 2 Shim, BL Mnt 1/2 4.52 9.04
3
89H45 1 Valve Mnt Bkt, Solenoid HD 1.13 1.13
4
90H74 1 Nylon Hose Sleeve x 60" 0.25 0.25
5
00770 8 Washer, Flat 1/4 0.01 0.08
6
00P51 4 Nut, Lock 1/4-20 UNC Gr8 0.01 0.04
7
01P70 4 HHCS 3/4-10 UNC x 2-1/4 Gr8 0.39 1.56
8
01P41 2 HHCS 1/4-20 UNC x 2-3/4 Gr8 0.04 0.08
9
01P56 2 HHCS 1/4-20 UNC x 1 Gr8 0.02 0.04
10
10P43 2 Adp Hyd 08MJ/08MJ BH 0.30 0.60
11
13P14 2 Adp Hyd 08FJ Cap 0.32 0.64
12
13P77 2 Adp Hyd 06MJ/06MP .062 Rstr. 0.30 0.60
13
13P87 2 Adp Hyd 08FJ/06MJ 0.30 0.60
14
14P28 1 Adp Hyd 08MF/08MB 0.16 0.16
15
14P38 1 Hose Assy 21 08-08FF/08FF 2.21 2.21
16
14P46 2 Hose Assy 123 06-06FJ/06FJ 4.82 9.64
17
14P47 2 Adp Hyd 12MB/08FB 0.21 0.42
18
14P48 1 Adp Hyd 08MB/08FF 0.21 0.21
19
23P36 1 Solenoid Valve, U-Lock HP 2.85 2.85
HEX HEAD CAP SCREW
TORQUE SPECS
BOLT
SIZE
SAE GR 8
W/ LOCK WASHER
(FT-LBS)
3/8 53
7/16 85
1/2 130
5/8 258
3/4 459
7/8 739
1 1108
Note: Apply Loctite 243 (Blue) to
all bolts.
6-2
